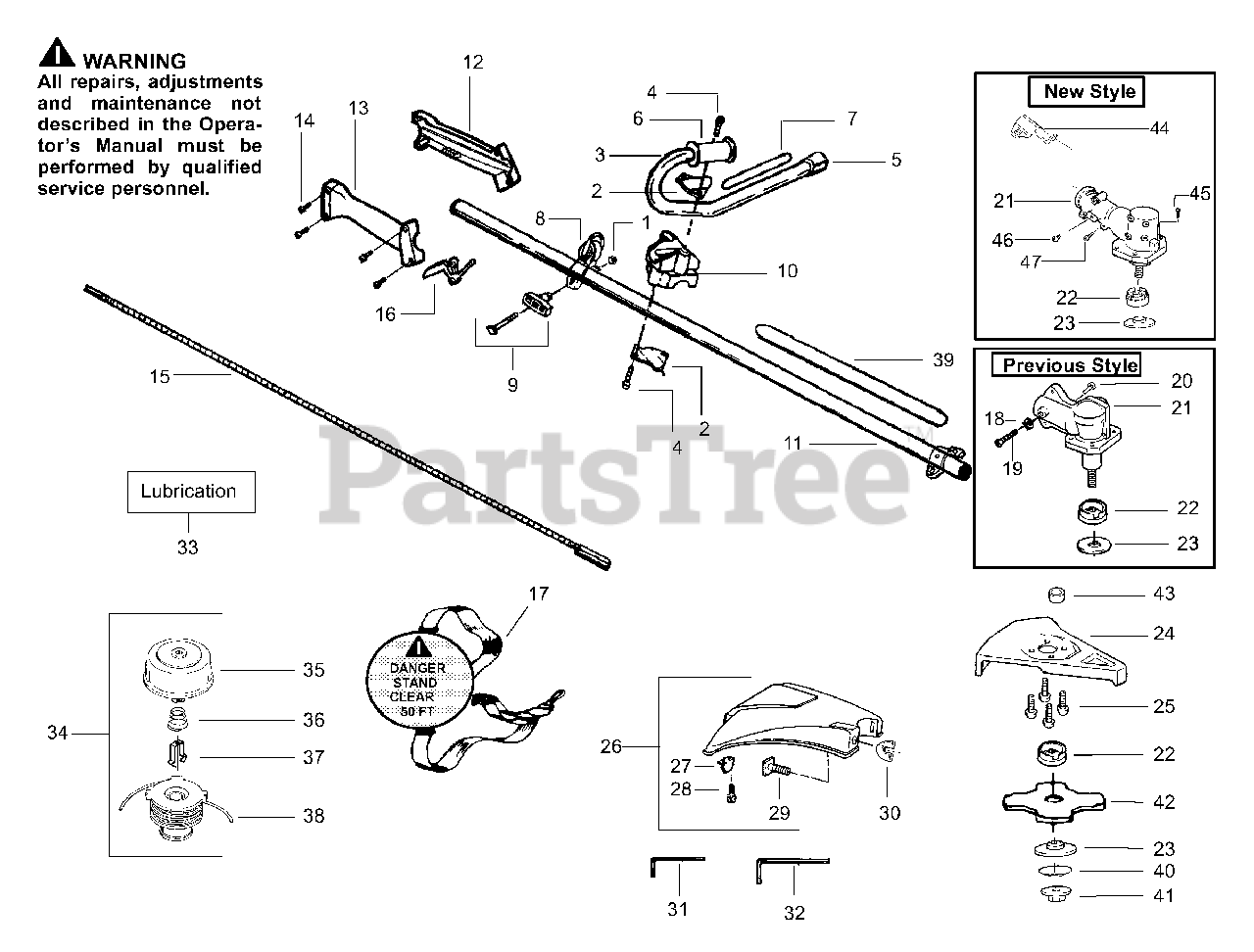

PT 7000 - Poulan String Trimmer Handle & Cutting Head Assembly Parts Diagram

String Trimmer

Handle & Cutting Head Assembly Parts Diagram

  • Title

1

Poulan 530015197

Nut

$6.49

$

In Stock, Qty 5

0

2

Poulan 530053659

Handlebar Bracket

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530069999

Handlebar Ass'y.

$13.99

$

Usually ships in 3-10 days

0

4

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530092192

Handlebar Cap

$0.99

$

Usually ships in 3-10 days

0

6

Poulan 530092086

Handlebar Grip

$

$

Not available

7

Poulan 530027884

Handlebar Warning Decal

$

$

Not available

8

Poulan 530094686

Harness Clamp Ass'y.

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 530069252

"T" Handle Assy.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

10

Poulan 530012207

Handlebar Clamp

$8.99

$

Usually ships in 3-10 days

0

11

Drive Shaft Housing

Note: Refer to the Service Reference indicated for more information; New part number for this IPL

$

$

Not available

12

Poulan 530036514

Throttle Hsg. Left

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530036515

Throttle Hsg. Right

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

15

Shaft - Flex

Note: Refer to the Service Reference indicated for more information; New part number for this IPL

$

$

Not available

16

Poulan 530036556

Throttle Lever

$3.99

$

In Stock, only 2 left!

0

17

Poulan 530094417

Shoulder Strap

$

$

Not available

18

Poulan 530015328

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530016140

Screw

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 530015650

Screw-Pinch Clamp

$

$

Not available

21

Gear Box Ass'y.

Note: Refer to the Service Reference indicated for more information; New part number for this IPL

$

$

Not available

22

Dust Cup

Note: Refer to the Service Reference indicated for more information; New part number for this IPL

$

$

Not available

23

Washer

Note: Refer to the Service Reference indicated for more information; New part number for this IPL

$

$

Not available

24

Poulan 530069780

Metal Shield Kit

$

$

Not available

25

Poulan 530016141

Screw

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 530069779

Shield Kit Ass'y.

Note: (Incl.27-30)

$

$

Not available

27

Poulan 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

29

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

31

Poulan 530031159

Hex Wrench (5/32)

$4.99

$

In Stock, only 1 left!

0

32

Poulan 530031098

Hex Wrench (3/16)

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 952701570

Shaft Lubrication
(Superseded to 952030139)

$

$

Not available

34

Poulan 952701708

Cutting Head Ass'y.
(Superseded to 952711550)

Note: (Incls. 35-38)

$

$

Not available

35

Poulan 530053245

Hub Ass'y.
(Superseded to 530095772)

$

$

Not available

36

Poulan 530053241

Spring-Return

$

$

Not available

37

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, Qty 6

0

38

Poulan 952701707

Spool w/Line
(Superseded to 952711551)

$

$

Not available

39

Poulan 530049673

Decal Shaft Warning

$

$

Not available

40

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, Qty 5

0

41

Poulan 530015793

Nut

$6.49

$

In Stock, Qty 10

0

42

Poulan 952701611

Weed Blade
(Superseded to 952711585)

$

$

Not available

43

Poulan 530019235

Seal Sleeve

$

$

Not available

44

Poulan 530095812

Bracket-Shield

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530016312

Screw

$6.49

$

In Stock, Qty 6

0

46

Poulan 530016301

Screw

$6.49

$

In Stock, only 4 left!

0

47

Poulan 530016309

Screw

$4.99

$

Usually ships in 3-10 days

0

Poulan 530085748

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 530049211

Decal-Blade Direction (Not a serviceable part)

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530053601

Decal-On/Off (Not a serviceable part)

Note: Not Shown

$

$

Not available
