PT 92C-00 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

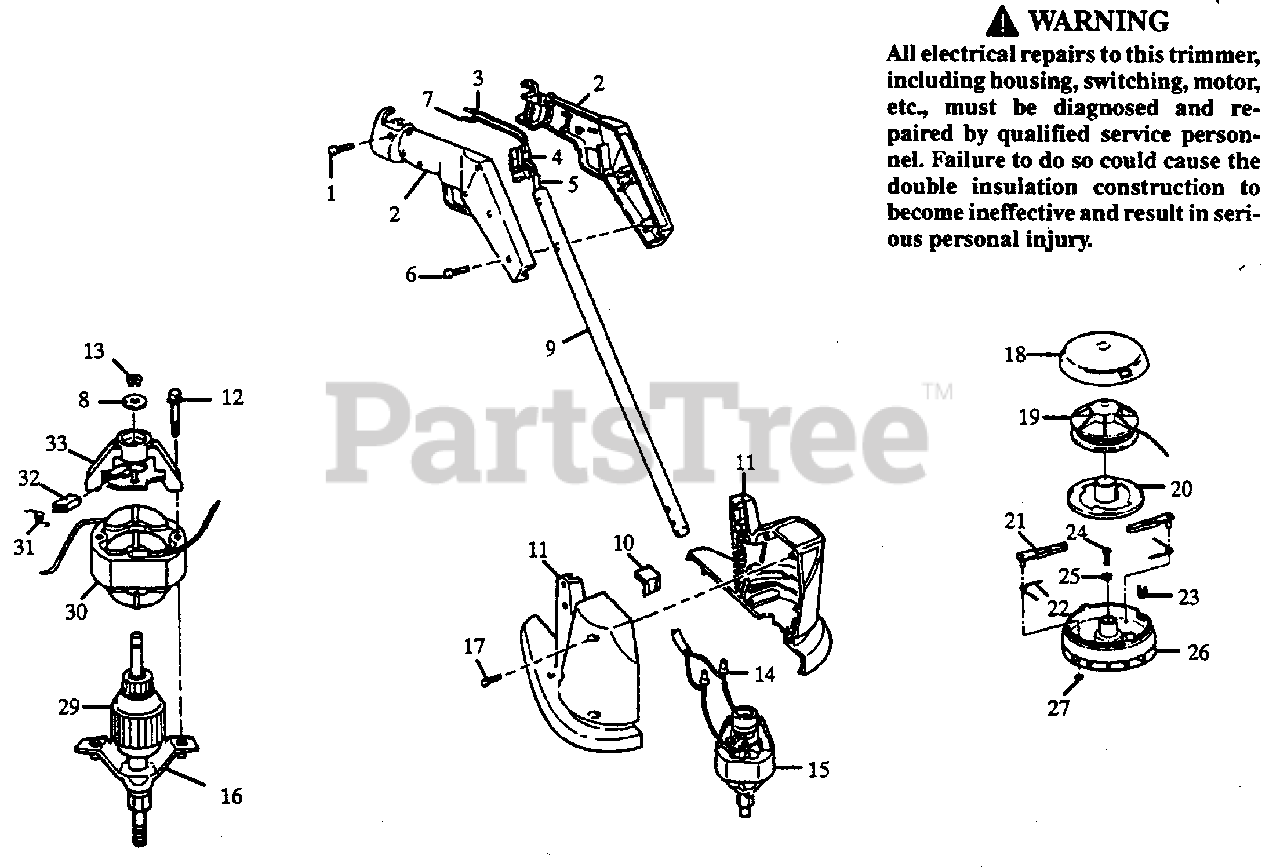

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534826802

Screw

$

$

Not available

2

Poulan 534826502

Handle Set

$7.49

$

Usually ships in 3-10 days

0

3

Poulan 534825700

Plug

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534193003

Trigger Switch

$

$

Not available

5

Poulan 534827500

Harness

$

$

Not available

6

Poulan 534826801

Screw

$

$

Not available

7

Poulan 534827900

Plug

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 534608056

Washer,Shim

$

$

Not available

9

Poulan 534826700

Tube

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 534958001

Line Cutter

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 534826602

Housing Set

$8.99

$

Usually ships in 3-10 days

0

12

Poulan 534619037

Screw

$

$

Not available

13

Poulan 534605011

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 534561000

Terminal Cap

$

$

Not available

15

Poulan 534968404

Motor/Adapter Ass'y.

$

$

Not available

16

Poulan 534872701

End Bell

$

$

Not available

17

Poulan 534826800

Screw

$3.99

$

In Stock, only 2 left!

0

18

Poulan 534919200

Cover

$

$

Not available

19

Poulan 952710536

Spool w/Line

$

$

Not available

20

Poulan 534100640

Cam

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 534918800

Arm

$

$

Not available

22

Poulan 534908501

Spring

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 534918500

Line Shield

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 534978600

Screw

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 534908700

Washer

$

$

Not available

26

Poulan 530400739

Housing Ass'y. (Inc. 21-23,26,27)

$

$

Not available

27

Poulan 534400700

Push Nut

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 534517400

Armature/Endbell Ass'y.

$

$

Not available

30

Poulan 534521010

Field Ass'y.

$

$

Not available

31

Poulan 534601015

Brush Spring

$

$

Not available

32

Poulan 534600042

Carbon Brush

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 534522012

Bracket/Plate Ass'y.

$

$

Not available
