Pup / Lightning - Bad Boy Zero-Turn Mower (2007) Seat Frame & Tanks Parts Diagram

Zero-Turn Mower

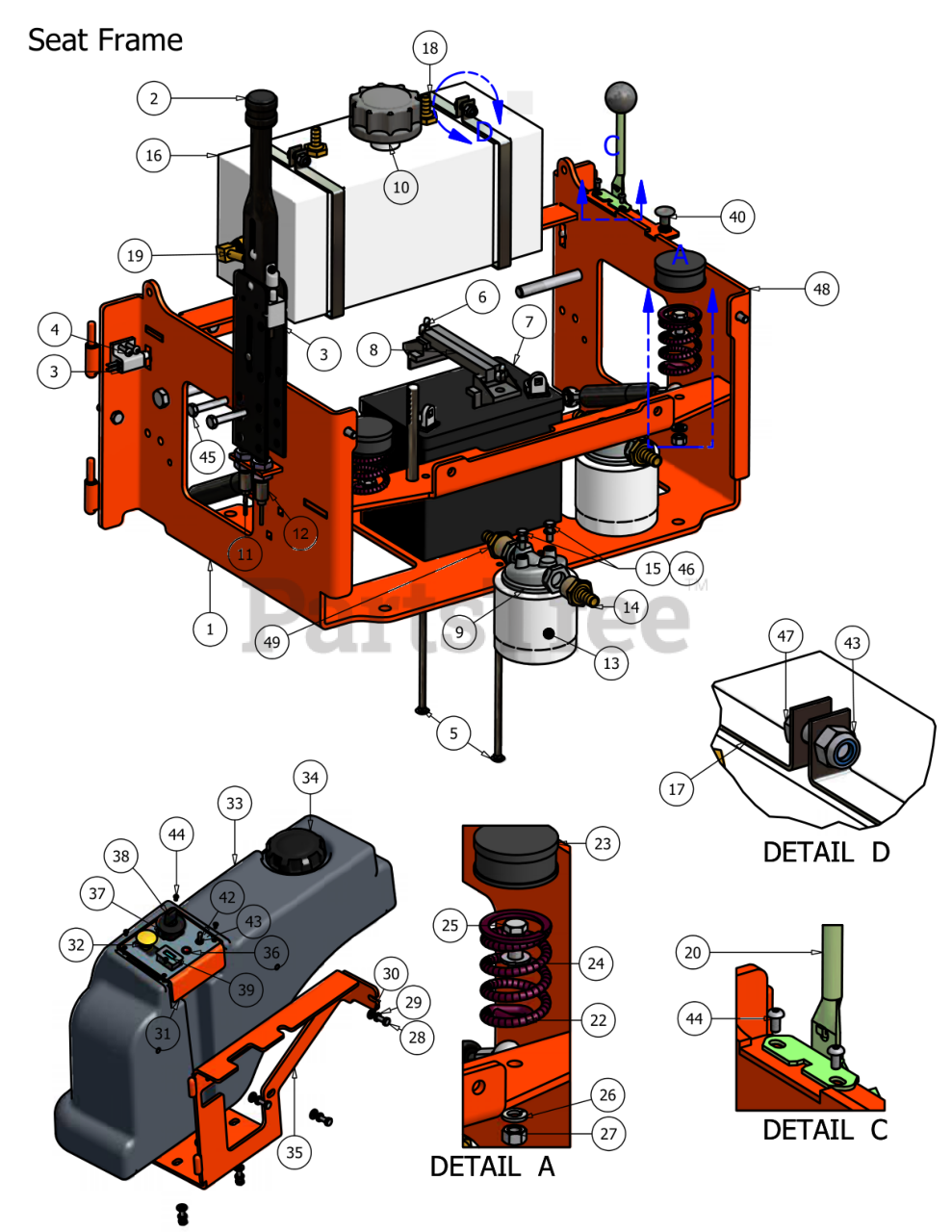

Seat Frame & Tanks Parts Diagram

  • Title

1

Bad Boy 080-6010-00

Seat Frame

$

$

Currently unavailable

2

Bad Boy 069-8054-00

Brake Lever

$136.99

$

Usually ships in 4-7 days

0

3

Bad Boy 077-8073-00

Brake Handle Switch

$11.99

$

In Stock, Qty 13

0

4

Bad Boy 018-8056-00

1024 x 1" Bolt

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 018-8050-00

7" Stove Bolt

$1.99

$

In Stock, Qty 8

0

6

Bad Boy 013-8051-00

1/4" Wing Nut

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 068-8049-00

Battery

$

$

Not available

8

Bad Boy 043-8929-00

Battery hold-down

$18.99

$

In Stock, only 1 left!

0

9

Bad Boy 062-8013-00

Filter Head

$26.99

$

Usually ships in 4-7 days

0

10

Bad Boy 066-8048-00

Hydraulic Tank Cap

$23.99

$

Usually ships in 4-7 days

0

11

Bad Boy 064-8055-00

Short Brake Cable

$54.99

$

In Stock, only 2 left!

0

12

Bad Boy 064-8056-00

Long Brake Cable

$56.99

$

In Stock, only 2 left!

0

13

Bad Boy 063-8014-00

Hydraulic Filter

$33.99

$

In Stock, Qty 20+

0

14

Bad Boy 024-5050-00

Filter Head Fitting

$8.49

$

Usually ships in 4-7 days

0

15

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 067-9016-00

Hydraulic Tank

$

$

Currently unavailable

17

Bad Boy 213-6001-00

Hydraulic Tank Strap

$

$

Currently unavailable

18

Bad Boy 024-5205-00

3/8" X 3/8" Hose Barb

$9.49

$

Usually ships in 0 days

0

19

Bad Boy 024-5203-00

1/2" x 1/2" Filter Head Fitting (90 Degree)

$12.99

$

Usually ships in 4-7 days

0

20

Bad Boy 055-8017-00

Throttle (23 Briggs, 26 Kawasaki, 30 Kohler)

$48.99

$

Usually ships in 4-7 days

0

21

Bad Boy 055-8021-00

Throttle (32 Briggs)

$48.99

$

Usually ships in 4-7 days

0

22

Bad Boy 034-8045-00

Seat Spring

$21.99

$

Usually ships in 4-7 days

0

23

Bad Boy 014-8047-00

1 1/2" Spring Cap Cover

$2.49

$

In Stock, only 1 left!

0

24

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

25

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

26

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

27

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

28

Bad Boy 018-5015-00

5/16" x 1" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

29

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

30

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

31

Bad Boy 079-3401-00

Control Panel

$25.99

$

Usually ships in 0 days

0

32

Bad Boy 056-8058-00

Blade Engager

$36.99

$

In Stock, Qty 20+

0

33

Bad Boy 067-5000-00

Right Fuel Tank

$

$

Not available

33

Bad Boy 067-5001-00

Left Fuel Tank

$

$

Not available

34

Bad Boy 066-8076-00

Fuel Cap

$34.99

$

In Stock, only 3 left!

0

35

Bad Boy 031-2007-00

Right Tank Swing Arm

$50.99

$

Usually ships in 0 days

0

35

Bad Boy 031-2006-00

Left Tank Swing Arm

$50.99

$

Usually ships in 0 days

0

36

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0

37

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

38

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

39

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

40

Bad Boy 054-8016-00

Choke

$30.99

$

In Stock, only 4 left!

0

41

Bad Boy 054-8017-00

Choke (All Kohler Engines)

$27.99

$

In Stock, Qty 20+

0

42

Bad Boy 078-8077-00

Deck Lift

$45.99

$

Usually ships in 4-7 days

0

43

Bad Boy 013-8047-00

5/16" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

44

Bad Boy 018-5200-00

1024 X 5/8" Buttonhead Bolt

$0.99

$

In Stock, Qty 5

0

45

Bad Boy 018-8059-00

5/16" x 1 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

46

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, only 4 left!

0

47

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

48

Bad Boy 029-8059-00

Piezo Buzzer

$

$

Currently unavailable

49

Bad Boy 024-5342-00

1/2" x 3/8" Barb Fitting

$8.49

$

Usually ships in 4-7 days

0
