Pup / Lightning - Bad Boy Zero-Turn Mower (2010) Pup Wheel Motor Assembly Parts Diagram

Zero-Turn Mower

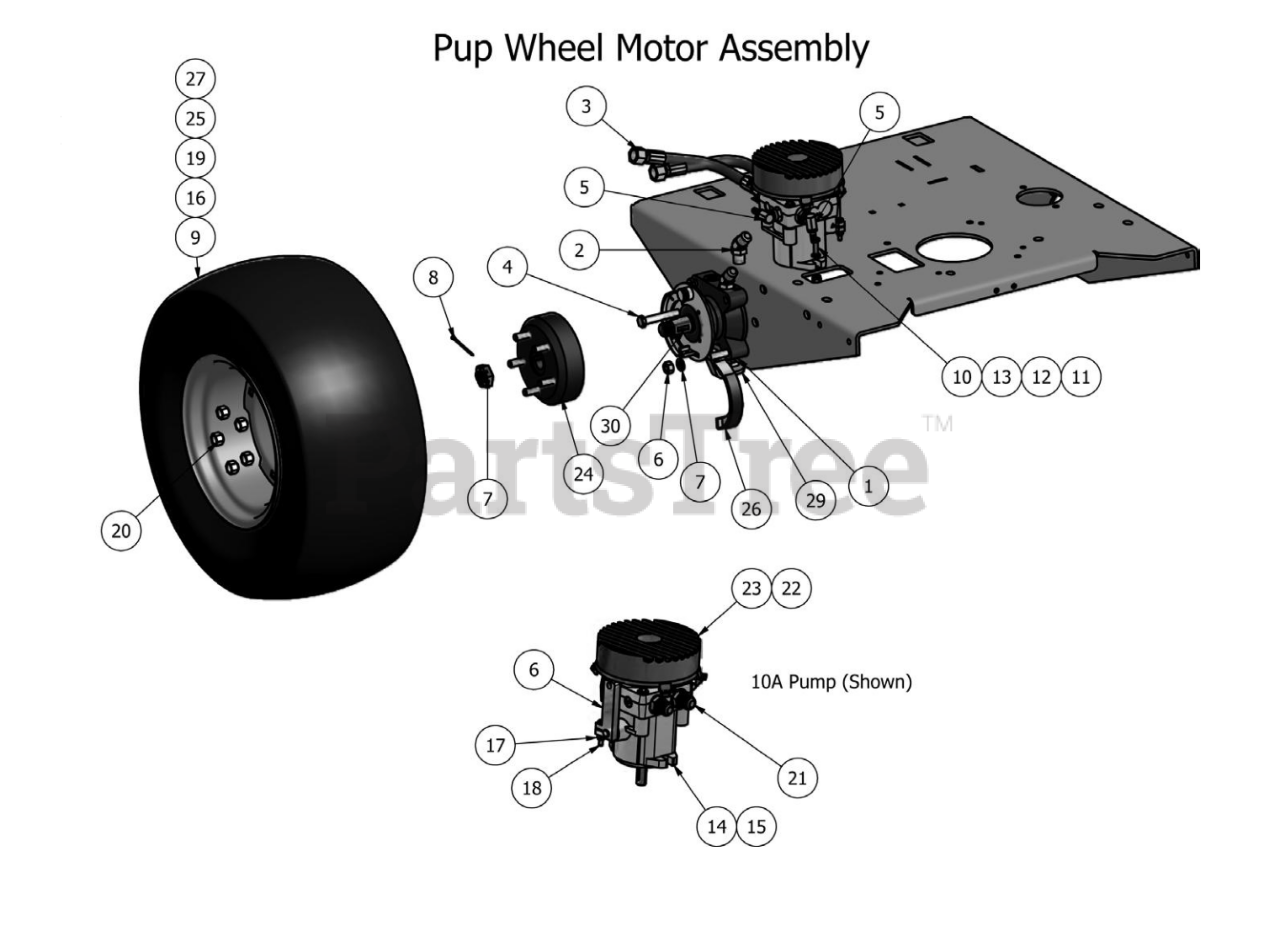

Pup Wheel Motor Assembly Parts Diagram

  • Title

1

Bad Boy 015-2004-98

Brake & Wheel Motor (Right)

$1025.99

$

Usually ships in 4-7 days

0

1A

Bad Boy 015-2005-98

Brake & Wheel Motor (Left)

$820.99

$

Usually ships in 0 days

0

2

Bad Boy 024-0050-00

Hydraulic Fitting (Wheel Motor)

$33.99

$

Usually ships in 4-7 days

0

3

Bad Boy 051-6000-00

Hydraulic Hose

$34.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

In Stock, Qty 5

0

5

Bad Boy 024-5206-00

3/8" x 9/16" Male Fitting

$13.99

$

Usually ships in 4-7 days

0

6

Bad Boy 031-5333-00

Pup Pump Arm

$24.99

$

In Stock, only 2 left!

0

7

Bad Boy 013-7004-00

Castle Nut

$8.99

$

Usually ships in 4-7 days

0

8

Bad Boy 020-7022-00

1/8" x 2 1/4" Cotter Pin

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 022-7061-00

12" Rim -60"&72" Cut

$196.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

11

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

12

Bad Boy 019-4008-00

3/8" Lock Washer

$0.99

$

In Stock, only 4 left!

0

13

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

14

Bad Boy 050-5302-00

Hydraulic Pump (10A) Left 3KCC

$1025.99

$

Usually ships in 4-7 days

0

15

Bad Boy 050-5303-00

Hydraulic Pump (10A) Right 3HCC

$1139.99

$

Usually ships in 4-7 days

0

16

Bad Boy 022-5349-00

24 x 12-12 Tire 60"& 72" Cut

$247.99

$

Usually ships in 4-7 days

0

17

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 018-5005-00

1/4" x 1 1/2" Bolt Straight Thread

$0.99

$

Usually ships in 4-7 days

0

19

Bad Boy 022-5450-00

24" Tire and Wheel Assembly

$398.99

$

Usually ships in 4-7 days

0

20

Bad Boy 013-3000-00

Lug Nuts

$3.49

$

In Stock, Qty 20+

0

21

Bad Boy 024-5343-00

Hydraulic Fitting

$8.49

$

Usually ships in 4-7 days

0

22

Bad Boy 015-9999-00

Hydraulic Fan

$45.99

$

In Stock, only 2 left!

0

23

Bad Boy 014-5500-00

Fan Guard

$41.99

$

Usually ships in 4-7 days

0

24

Bad Boy 092-6000-00

Brake Drum

$

$

Not available

25

Bad Boy 022-5352-00

23 x 10.50-12 Tire & Wheel

$296.99

$

Usually ships in 4-7 days

0

26

Bad Boy 092-6050-00

Brake Shoes

$

$

Not available

27

Bad Boy 022-7062-00

12" Rim 48"& 52" Cut

$155.99

$

Usually ships in 4-7 days

0

28

Bad Boy 022-5351-00

23 x 10.50-12 Tire

$174.99

$

Usually ships in 4-7 days

0

29

Bad Boy 031-0011-00

Brake Lever (wheel motor) Left (Shown)

$22.99

$

Usually ships in 0 days

0

29A

Bad Boy 031-0012-00

Brake Lever (wheel motor) Right

$22.99

$

Usually ships in 0 days

0

30

Bad Boy 042-7041-00

Woodruff Key

$10.99

$

In Stock, only 2 left!

0
