Pup / Lightning - Bad Boy Zero-Turn Mower (2011) 31hp Kawasaki Engine Parts Diagram

Zero-Turn Mower

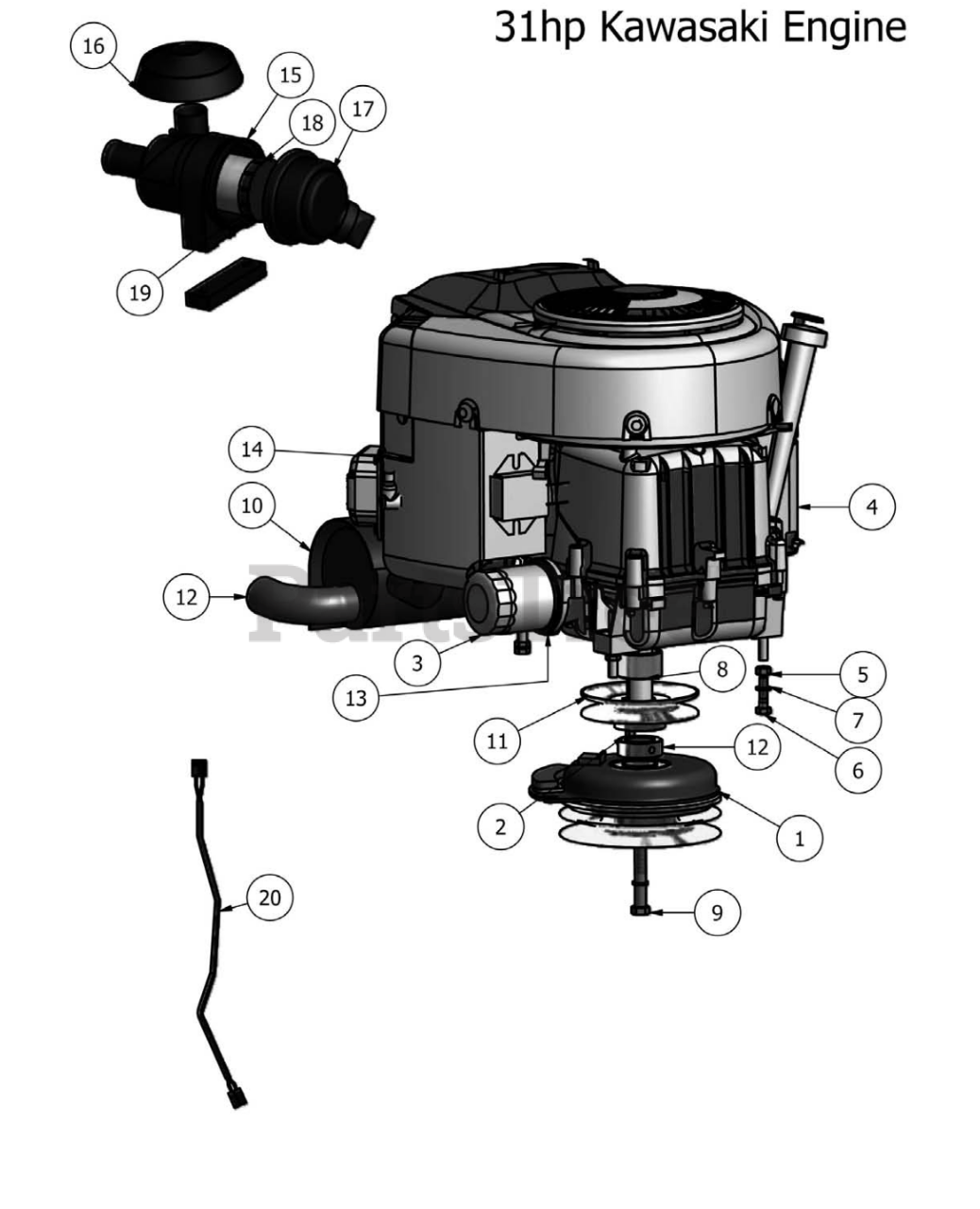

31hp Kawasaki Engine Parts Diagram

  • Title

1

Bad Boy 070-1000-00

Clutch

$319.99

$

In Stock, Qty 16

0

2

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 7

0

3

Bad Boy 063-8017-00

31 HP Oil Filter

$34.99

$

In Stock, Qty 17

0

4

Bad Boy 015-0031-00

31 HP Engine

$3414.99

$

Usually ships in 4-7 days

0

5

Bad Boy 013-8043-00

5/16" Hex Nut

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 018-5025-00

5/16" x 1 1/4" Hex Bolt

$

$

Currently unavailable

7

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 025-5032-00

1 1/8" Collar Spacer

$13.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 2 left!

0

10

Bad Boy 015-0035-00

31 HP Exhaust

$262.99

$

Usually ships in 4-7 days

0

11

Bad Boy 033-5034-00

4 3/4" Motor Pulley

$37.99

$

Usually ships in 4-7 days

0

12

Bad Boy 025-5000-00

1 1/8" Pulley Spacer

$7.99

$

Usually ships in 4-7 days

0

13

Bad Boy 051-5404-00

Oil Drain Valve

$45.99

$

In Stock, only 3 left!

0

14

Bad Boy 063-6000-00

Fuel Filter

$15.99

$

In Stock, Qty 17

0

15

Bad Boy 063-2040-00

31hp Kawasaki Complete Canister

$

$

Not available

16

Bad Boy 063-2045-00

Rain Cap 31hp Kawasaki

$

$

Not available

17

Bad Boy 015-0029-00

Filter End Cap

$79.99

$

Usually ships in 4-7 days

0

18

Bad Boy 063-2032-00

Air Filter-Outer

$52.99

$

Usually ships in 4-7 days

0

19

Bad Boy 063-2031-00

Air Filter-Inner

$30.99

$

Usually ships in 4-7 days

0

20

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0
