Pup / Lightning - Bad Boy Zero-Turn Mower (2011) 52" Deck Parts Diagram

Zero-Turn Mower

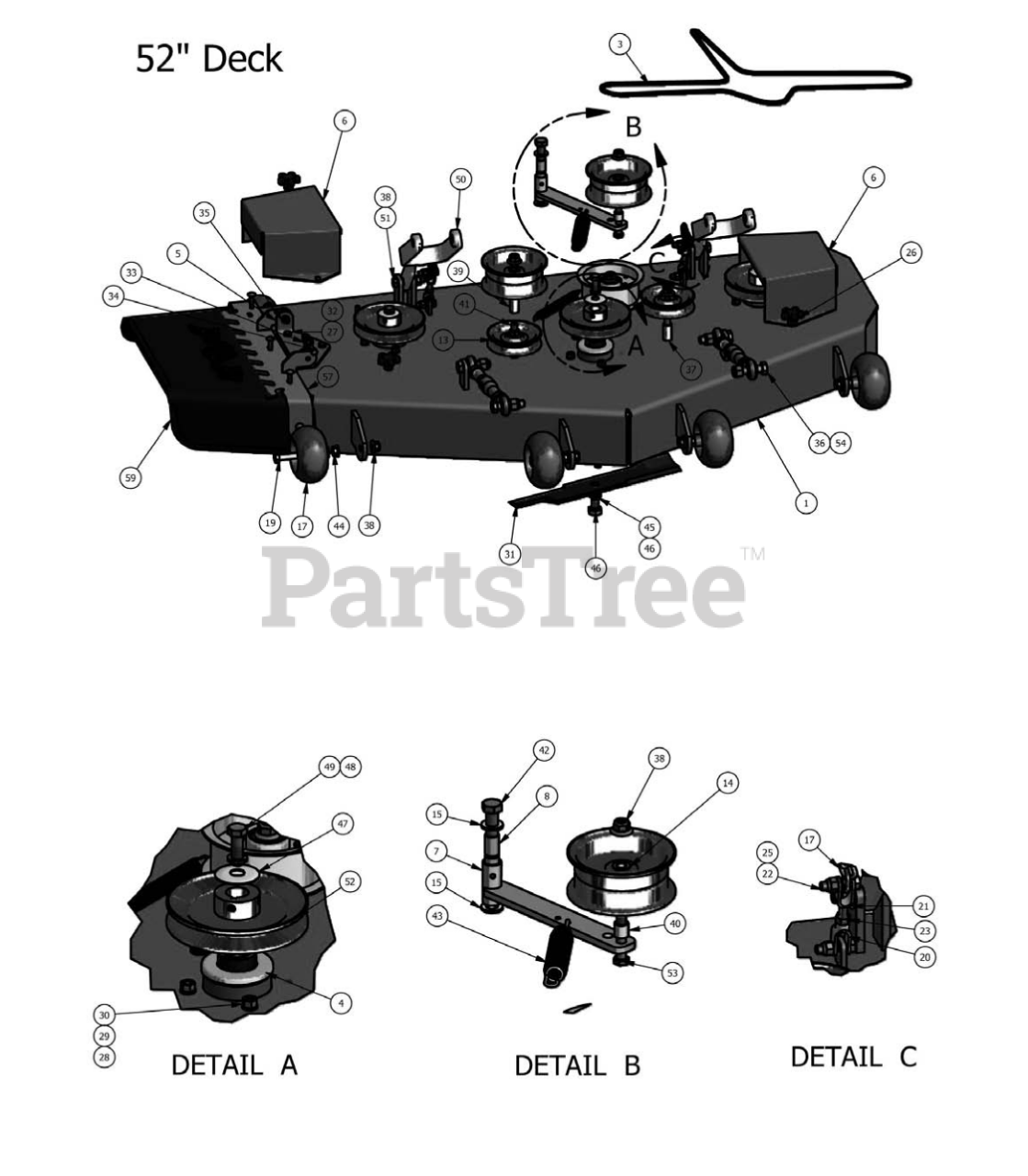

52" Deck Parts Diagram

  • Title

1

Bad Boy 060-5402-00

52" Deck Shell

$

$

Not available

2

Bad Boy 060-5402-98

52" Deck Assembly

$

$

Not available

3

Bad Boy 041-1490-00

52" Deck Belt

$94.99

$

Usually ships in 4-7 days

0

4

Bad Boy 037-8000-00

Double Bearing Spindle (Complete)

$

$

Not available

5

Bad Boy 206-6017-00

Discharge Chute Hanger

$41.99

$

In Stock, only 2 left!

0

6

Bad Boy 014-6010-00

Pulley Cover

$

$

Not available

7

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 2 left!

0

8

Bad Boy 032-6033-00

5/8" ID x 1 1/8" Brass Bushing

$3.99

$

In Stock, only 2 left!

0

9

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

In Stock, Qty 5

0

10

Bad Boy 025-5025-00

1" Collar Spacer

$5.99

$

Usually ships in 4-7 days

0

11

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

12

Bad Boy 034-2009-00

deck Idler Spring

$19.99

$

In Stock, Qty 15

0

13

Bad Boy 033-6001-00

43/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

14

Bad Boy 033-5001-00

5 3/4" Deck Idler Pulley

$67.99

$

Usually ships in 4-7 days

0

15

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

16

Bad Boy 048-6056-00

Turnbuckle (Top Link)

$56.99

$

Usually ships in 4-7 days

0

17

Bad Boy 022-5234-00

Anti-Scalp Rollers

$

$

Not available

18

Bad Boy 022-5234-98

Deck Wheel Assembly

$20.99

$

Usually ships in 4-7 days

0

19

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

20

Bad Boy 046-6044-00

Female Yoke

$11.99

$

Usually ships in 4-7 days

0

21

Bad Boy 046-6048-00

Male Yoke

$16.99

$

Usually ships in 4-7 days

0

22

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

23

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

24

Bad Boy 047-6047-98

3" Chain Assembly

$

$

Not available

25

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

27

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

28

Bad Boy 018-5040-00

3/8 x 1 1/4 Bolt

$0.99

$

In Stock, Qty 9

0

29

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

30

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

31

Bad Boy 038-3010-00

52" Fusion Blade

$24.99

$

In Stock, Qty 20+

0

32

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

33

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

34

Bad Boy 018-5015-00

5/16" x 1" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

35

Bad Boy 013-7021-00

5/8 Nylock Nut

$1.49

$

In Stock, only 2 left!

0

36

Bad Boy 018-6059-00

5/8" x 2 1/2" Hex Bolt

$2.99

$

In Stock, only 2 left!

0

37

Bad Boy 025-5338-00

Pup Pulley Spacer

$3.99

$

In Stock, only 2 left!

0

38

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

39

Bad Boy 025-5339-00

13/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

40

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3/4 Length

$3.49

$

In Stock, Qty 7

0

41

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt

$3.99

$

In Stock, only 2 left!

0

42

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

43

Bad Boy 034-2009-00

Deck Idler Spring

$19.99

$

In Stock, Qty 15

0

44

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

45

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

46

Bad Boy 018-6020-00

5/8 x 1 1/2" Grade 8 Bolt

$2.99

$

In Stock, Qty 20+

0

47

Bad Boy 019-6019-00

Cup Washer

$9.99

$

Usually ships in 4-7 days

0

48

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

49

Bad Boy 018-6019-00

1/2" x 1 1/2" Fine Thread Bolt

$1.49

$

In Stock, Qty 6

0

50

Bad Boy 031-6010-00

Deck Arm Assembly

$

$

Not available

51

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

52

Bad Boy 033-6003-00

5" Deck Pulley

$45.99

$

In Stock, only 2 left!

0

53

Bad Boy 018-7016-00

1/2 x 3" Bolt

$1.99

$

In Stock, Qty 5

0

54

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

55

Bad Boy 039-4871-00

52" Lower Hanger

$34.99

$

Usually ships in 4-7 days

0

56

Bad Boy 013-8049-00

5/16" Nylock Flange Nut

$0.99

$

Usually ships in 4-7 days

0

57

Bad Boy 039-4870-00

52" Discharge Chute Upper Hanger Plate

$45.99

$

Usually ships in 4-7 days

0

58

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

59

Bad Boy 210-5218-00

Rubber Discharge Chute Assembly

$

$

Not available

60

Bad Boy 210-6005-00

Discharge Chute (Rubber Only)

$63.99

$

In Stock, only 2 left!

0
