Pup / Lightning - Bad Boy Zero-Turn Mower (2011) Drive Pulley Assembly Parts Diagram

Zero-Turn Mower

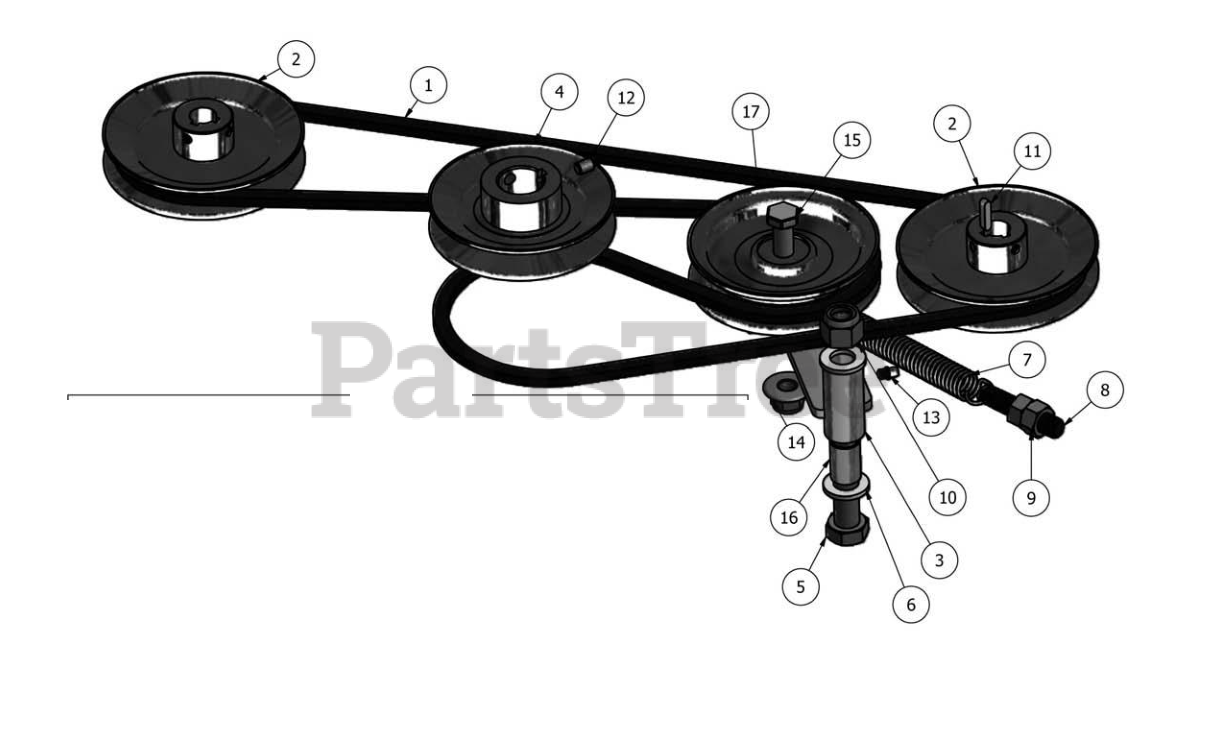

Drive Pulley Assembly Parts Diagram

  • Title

1

Bad Boy 041-5048-00

Pump Belt

$64.99

$

In Stock, Qty 14

0

2

Bad Boy 033-5003-00

5" Pump Pulley Cast 15mm

$60.99

$

In Stock, only 2 left!

0

3

Bad Boy 039-5944-00

Pump Idler Braeket

$45.99

$

In Stock, Qty 5

0

4

Bad Boy 033-5034-00

4 3/4" Motor Pulley

$37.99

$

Usually ships in 4-7 days

0

5

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

6

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

7

Bad Boy 034-5039-00

Pump Idler Spring

$

$

Not available

8

Bad Boy 018-2004-00

Spring Tensioner

$13.99

$

In Stock, only 4 left!

0

9

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

10

Bad Boy 013-7021-00

5/8 Nylock Nut

$1.49

$

In Stock, only 2 left!

0

11

Bad Boy 042-5301-00

5mm x 1 Key

$3.49

$

In Stock, only 2 left!

0

12

Bad Boy 030-6029-00

3/8" Set Screw

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 024-6034-00

Grease Fitting (Drive-In Type)

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

15

Bad Boy 018-7016-00

1/2-13x3 Hex Bolt

$1.99

$

In Stock, Qty 5

0

16

Bad Boy 032-6033-00

Brass Bushing 5/8 x 1 1/8

$3.99

$

In Stock, only 2 left!

0

17

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0
