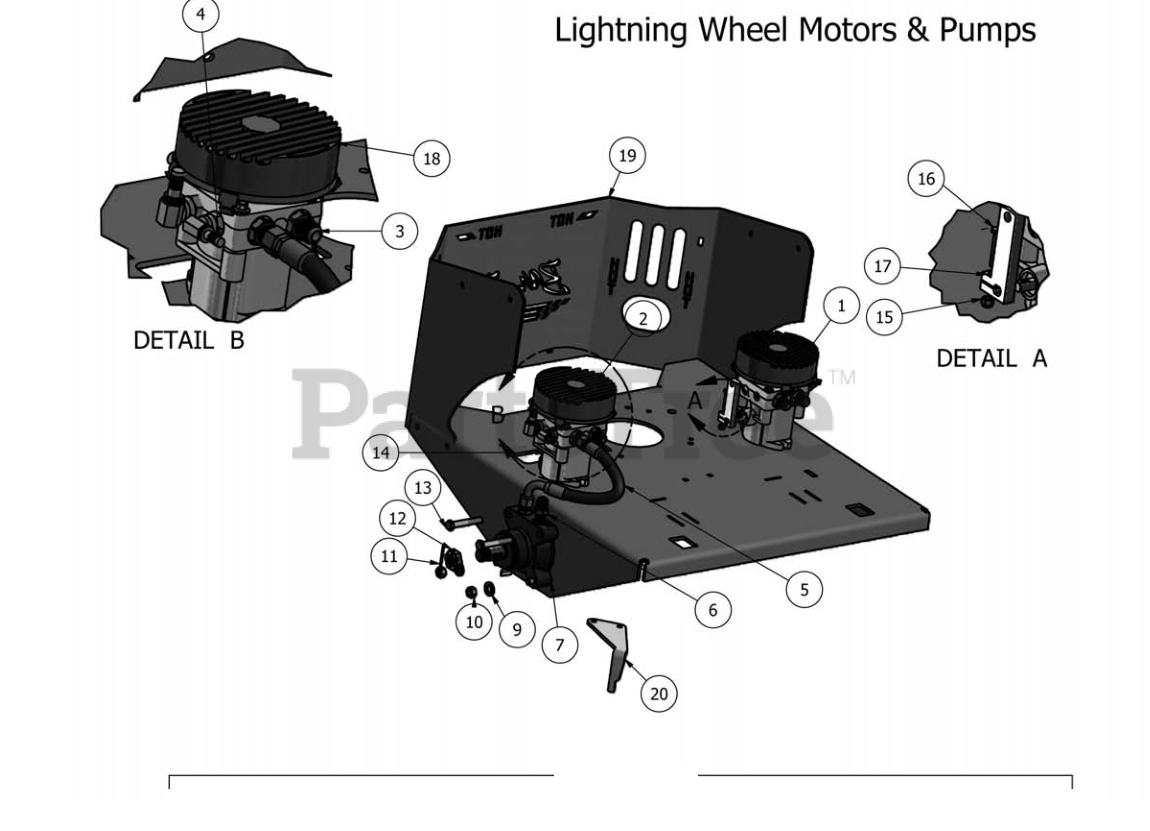

Pup / Lightning - Bad Boy Zero-Turn Mower (2011) Lightning Wheel Motors & Pumps Parts Diagram

Zero-Turn Mower

Lightning Wheel Motors & Pumps Parts Diagram

  • Title

1

Bad Boy 050-3000-00

Left Hydraulic Pump 12cc

$1025.99

$

Usually ships in 4-7 days

0

2

Bad Boy 015-9999-00

Pump Fan

$45.99

$

In Stock, only 2 left!

0

3

Bad Boy 024-7033-00

Hydraulic Fitting

$5.99

$

Usually ships in 4-7 days

0

4

Bad Boy 024-5206-00

3/8" x 9/16" Male Fitting

$13.99

$

Usually ships in 4-7 days

0

5

Bad Boy 051-2050-00

16" Hydraulic Hose

$91.99

$

Usually ships in 4-7 days

0

6

Bad Boy 024-0050-00

Hydrauilc Fitting (Wheel Motor)

$33.99

$

Usually ships in 4-7 days

0

7

Bad Boy 015-4500-00

15cc Parker Wheel Motor Right

$649.99

$

Usually ships in 4-7 days

0

8

Bad Boy 015-4501-00

15cc Parker Wheel Motor Left

$649.99

$

Usually ships in 4-7 days

0

9

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

11

Bad Boy 020-7022-00

1/8" x 2 1/4" Cotter Pin

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 013-7050-00

Castle Nut

$19.99

$

Usually ships in 4-7 days

0

13

Bad Boy 018-7016-00

1/2" 3" hex Bolt

$1.99

$

In Stock, Qty 5

0

14

Bad Boy 050-3050-00

Right Hydraulic Pump 12cc

$1025.99

$

Usually ships in 4-7 days

0

15

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-5005-00

1/4" x 1 1/2" Bolt

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 031-5333-00

Pump Arm

$24.99

$

In Stock, only 2 left!

0

18

Bad Boy 014-5500-00

Fan Guard

$41.99

$

Usually ships in 4-7 days

0

19

Bad Boy 026-5321-00

Pup Rear Plate

$192.99

$

Usually ships in 0 days

0

20

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 2 left!

0
