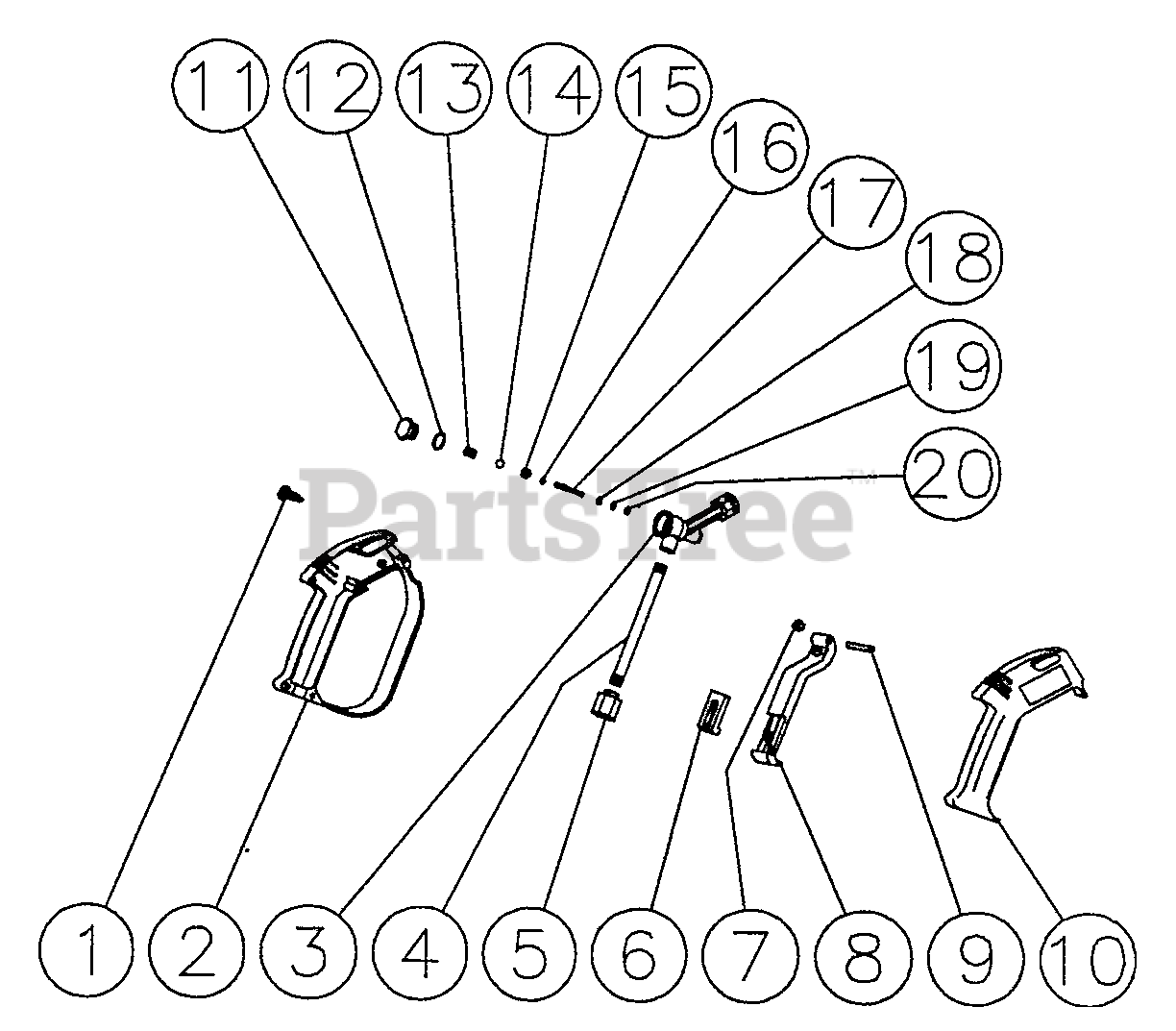

PW 1750 (UT-01816) - Homelite Pressure Washer Gun Parts Diagram

Pressure Washer

Gun Parts Diagram

  • Title

1

Homelite 0757570

Screw

$

$

Currently unavailable

2

Homelite 0757571

Plastic Housing (Left Side)

$

$

Currently unavailable

3

Homelite 0757572

Housing

$

$

Currently unavailable

4

Homelite 0757573

Pipe

$

$

Currently unavailable

5

Homelite 0757574

Nipple

$

$

Currently unavailable

6

Homelite 0757575

Trigger Safety Lock

$

$

Currently unavailable

7

Homelite 0757576

Trigger Rest

$

$

Currently unavailable

8

Homelite 0757577

Trigger

$

$

Currently unavailable

9

Homelite 0757578

Trigger Pin

$

$

Currently unavailable

10

Homelite 0757579

Plastic Housing (Right Side)

$

$

Currently unavailable

11

~N/A

Plug

$

$

Not available

12

~N/A

O-ring

$

$

Not available

13

~N/A

Spring

$

$

Not available

14

~N/A

Ball

$

$

Not available

15

~N/A

Seat

$

$

Not available

16

~N/A

O-ring

$

$

Not available

17

~N/A

Pin

$

$

Not available

18

~N/A

Washer

$

$

Not available

19

~N/A

O-ring

$

$

Not available

20

~N/A

Back-up Ring

$

$

Not available

Homelite 0757512

Gun Assembly

$

$

Currently unavailable
