PW 2200 (UT-01817) - Homelite Pressure Washer Pump Assembly Parts Diagram

Pressure Washer

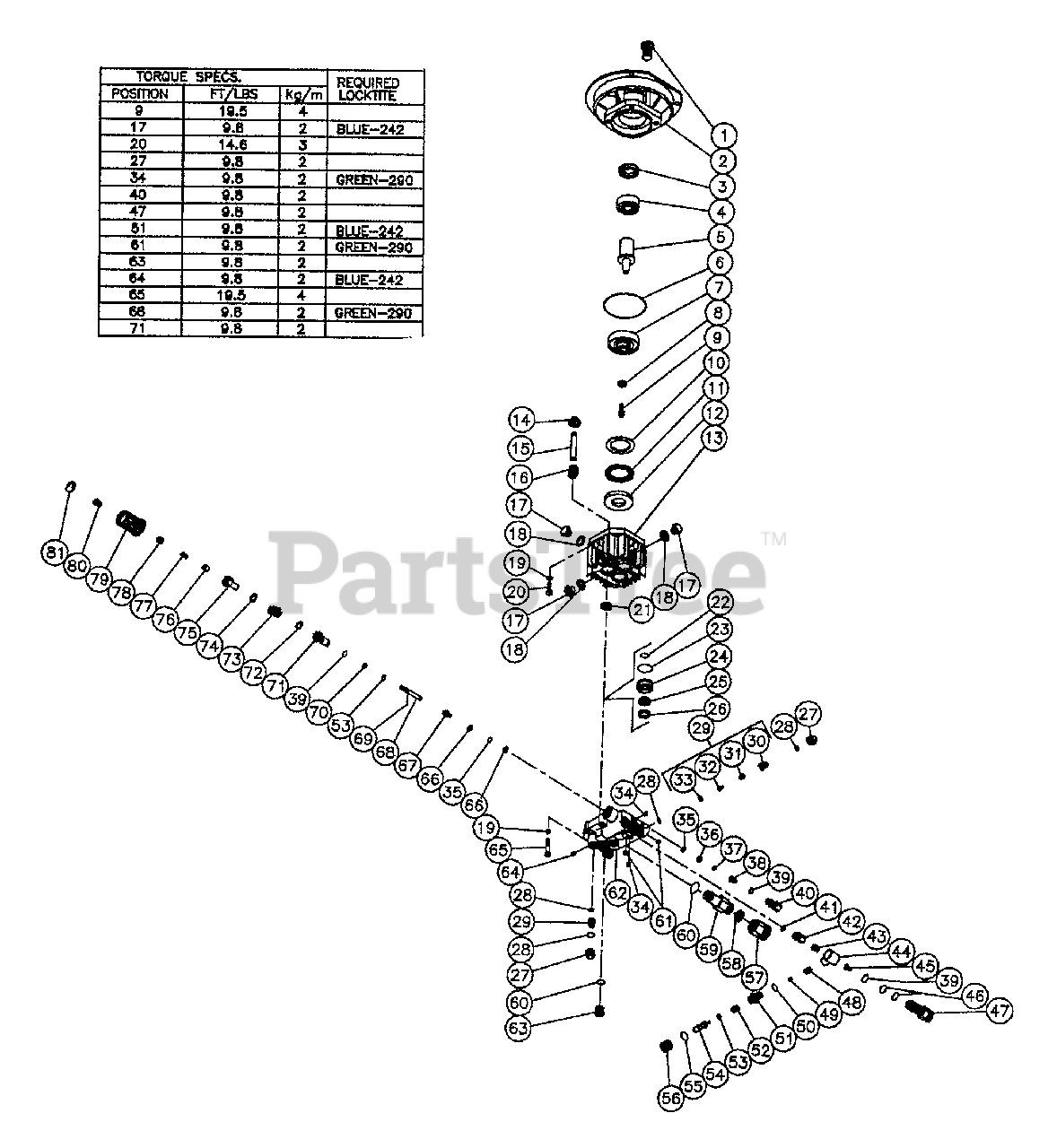

Pump Assembly Parts Diagram

  • Title

1

Homelite 0762801

Vent

$

$

Currently unavailable

2

Homelite 0762802

Flange

$

$

Currently unavailable

3

Homelite 0762803

Oil Seal

$

$

Currently unavailable

4

Homelite 0762804

Bearing

$

$

Currently unavailable

5

Homelite 0762805

Shaft

$

$

Currently unavailable

6

Homelite 0762806

O-ring

$

$

Currently unavailable

7

Homelite 0762807

Wobble Plate

$

$

Currently unavailable

8

Homelite 0762808

Washer

$

$

Currently unavailable

9

Homelite 0762809

Bolt

$

$

Currently unavailable

10

Homelite 0792541

Bearing Disc

$

$

Currently unavailable

11

Homelite 0792542

Bearing

$

$

Not available

12

Homelite 0792543

Bearing Disc

$

$

Not available

13

Homelite 0762813

Pump Housing

$

$

Currently unavailable

14

Homelite 0762814

Piston Spring Retainer

$

$

Currently unavailable

15

Homelite 0792501

Piston

$

$

Not available

16

Homelite 0762816

Piston Spring

$

$

Currently unavailable

17

Homelite 0762817

Oil Drain Plug

$

$

Currently unavailable

18

Homelite 0762818

Gasket

$

$

Currently unavailable

19

Homelite 0762819

Lockwasher

$

$

Currently unavailable

20

Homelite 0762820

Bolt

$4.49

$

Usually ships in 3-7 days

0

21

~N/A Sep.

Oil Seal (See 07575-06)

$

$

Not available

22

~N/A Sep.

O-ring (See 07575-16)

$

$

Not available

23

~N/A Sep.

O-ring (See 07575-16)

$

$

Not available

24

Homelite 0762869

V-Packing Retainer

$

$

Currently unavailable

25

~N/A Sep.

V-Packing (See 07575-16)

$

$

Not available

26

~N/A Sep.

Pack Ring (See 07575-16)

$

$

Not available

27

Homelite 0762822

Valve Plug

$

$

Currently unavailable

28

Homelite 0762823

O-ring

$

$

Currently unavailable

29

~N/A Sep.

Valve Complete (See 07575-17)

$

$

Not available

30

~N/A Sep.

Valve Cage (See 07575-17)

$

$

Not available

31

~N/A Sep.

Valve Spring (See 07575-17)

$

$

Not available

32

~N/A Sep.

Valve Plate (See 07575-17)

$

$

Not available

33

~N/A Sep.

Valve Seat (See 07575-17)

$

$

Not available

34

Homelite 0762824

Screw

$4.49

$

Usually ships in 3-7 days

0

35

Homelite 0762829

O-ring

$

$

Not available

36

Homelite 0792503

Valve Seat

$

$

Currently unavailable

37

Homelite 0792504

Ball

$20.99

$

Usually ships in 3-7 days

0

38

Homelite 0792505

Valve Spring

$

$

Currently unavailable

39

Homelite 0792506

O-ring

$

$

Not available

40

Homelite 0792507

Plug

$11.99

$

Usually ships in 3-7 days

0

41

Homelite 0792508

O-ring

$

$

Currently unavailable

42

Homelite 0792509

No Return Valve

$

$

Currently unavailable

43

Homelite 0792510

Spring

$

$

Not available

44

Homelite 0792511

Injector Body

$

$

Not available

45

Homelite 0792512

Injector Nozzle

$

$

Currently unavailable

46

Homelite 0792513

O-ring

$5.49

$

Usually ships in 3-7 days

0

47

Homelite 0792514

Pressure Outlet

$

$

Currently unavailable

48

~N/A Sep.

Spring (See 07575-20)

$

$

Not available

49

~N/A Sep.

Ball (See 07575-20)

$

$

Not available

50

~N/A Sep.

O-ring (See 07575-20)

$

$

Not available

51

Homelite 0792515

Injector Nipple

$

$

Currently unavailable

52

Homelite 0792516

Injector Spring

$12.99

$

Usually ships in 3-7 days

0

53

~N/A Sep.

O-ring (See 0792539)

$

$

Not available

54

Homelite 0792517

Injector Piston

$

$

Currently unavailable

55

Homelite 0792518

Flexible Ring

$

$

Currently unavailable

56

Homelite 0792519

Injector Regulation Knob

$

$

Currently unavailable

57

Homelite 0762834

Garden Hose Connection

$

$

Currently unavailable

58

Homelite 0762835

Gasket

$

$

Not available

59

Homelite 0792522

Inlet Connector

$

$

Currently unavailable

60

Homelite 0792523

O-ring

$

$

Currently unavailable

61

Homelite 0792524

Screw

$

$

Not available

62

Homelite 0792525

Manifold

$

$

Currently unavailable

63

Homelite 0792526

Manifold Plug

$

$

Not available

64

Homelite 0762844

Screw

$

$

Currently unavailable

65

Homelite 0792527

Bolt

$

$

Currently unavailable

66

Homelite 0762850

Back-up Ring

$

$

Currently unavailable

67

~N/A Sep.

Piston By-pass (See 07575-19)

$

$

Not available

68

~N/A Sep.

Pressure Regulator (See 07575-19)

$

$

Not available

69

Homelite 0792528

Roll Pin

$

$

Currently unavailable

70

~N/A Sep.

Back-up Ring (See 07575-19)

$

$

Not available

71

~N/A Sep.

Plug (See 07575-19)

$

$

Not available

72

Homelite 0792529

Washer

$

$

Currently unavailable

73

Homelite 0792530

Pressure Regulation Spring

$

$

Currently unavailable

74

Homelite 0792831

Washer

$

$

Currently unavailable

75

Homelite 0792532

Pressure Regulation Screw

$

$

Currently unavailable

76

Homelite 0792533

Screw Support

$

$

Currently unavailable

77

Homelite 0792534

Bolt

$

$

Currently unavailable

78

Homelite 0792535

Internal Screw

$

$

Currently unavailable

79

Homelite 0792536

Pressure Regulation Knob

$

$

Currently unavailable

80

Homelite 0792537

Screw

$

$

Currently unavailable

81

Homelite 0762863

Cap

$

$

Currently unavailable

Homelite 0757506

Oil Seal Kit

Note: (3 each of 21)

$

$

Currently unavailable

Homelite 0757516

Packing Kit

Note: (3 each 22-26)

$

$

Currently unavailable

Homelite 0757517

Valve Kit

Note: (6 each of 28 & 29)

$

$

Currently unavailable

Homelite 0792538

Unloader Seat

Note: (1 each 35-40)

$

$

Currently unavailable

Homelite 0757519

Unloader Stem Kit

Note: (1 each of 35, 39, 53, 66-81)

$

$

Currently unavailable

Homelite 0757520

Injector Repair Kit

Note: (1 each 48-50, 53)

$

$

Currently unavailable

Homelite 0792540

Manifold Assy.

Note: (1 each 22-56, 59-64, 66-81)

$

$

Currently unavailable
