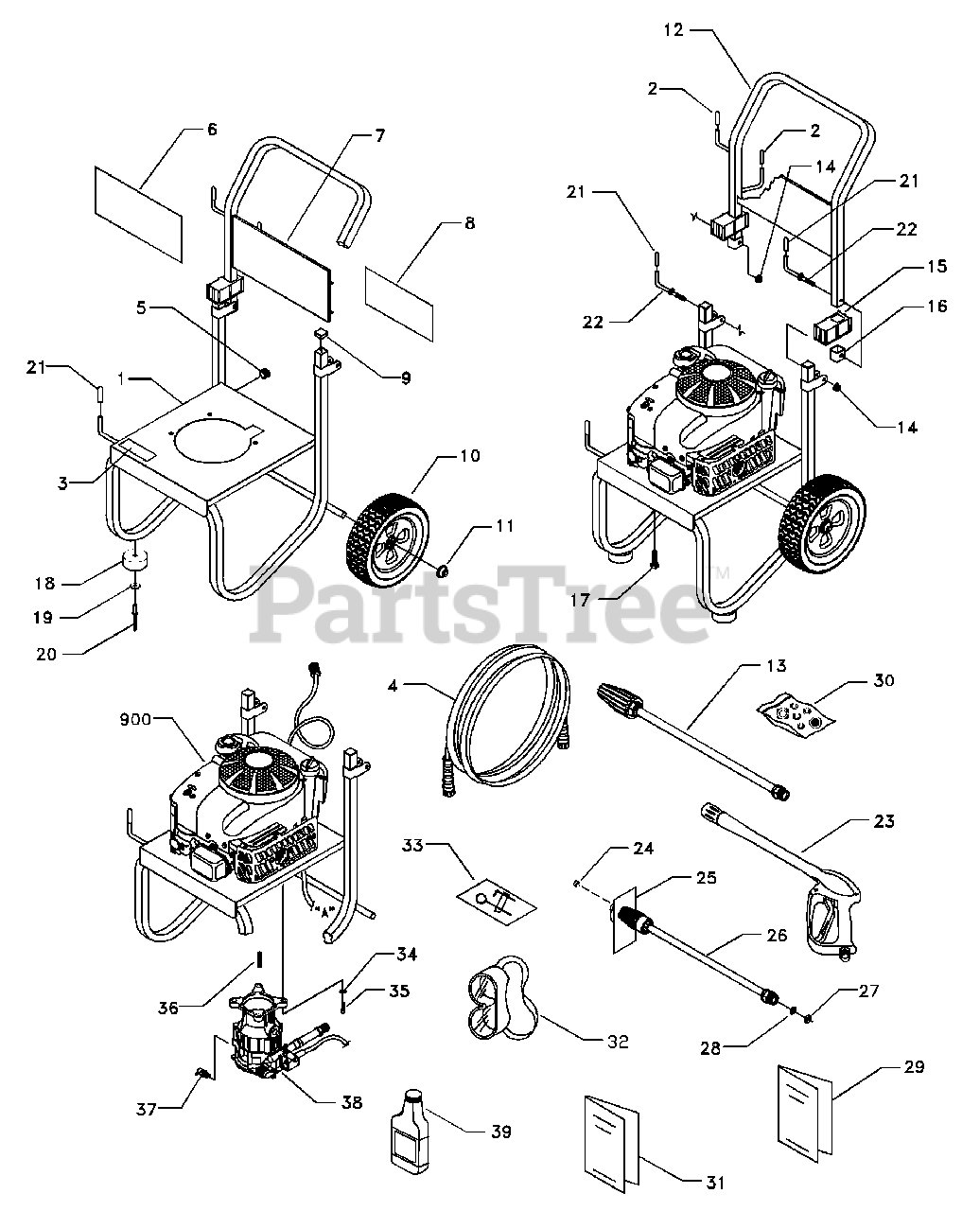

PW 24000 (01660-0) - Snapper 2,400 PSI Pressure Washer Main Unit Parts Diagram

2,400 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton L190283GS

BASE, Snapper Red
(Superseded to M190283GS)

$

$

Not available

2

Briggs & Stratton B2516GS

CAP, Vinyl Black

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187952GS

DECAL, Cool Down

$8.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190249GS

HOSE, 1/4" X 25'
(Superseded to 708962)

$

$

Not available

5

Briggs & Stratton 30809GS

GROMMET, Chemical Hose

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 190613GS

DECAL, Logo 2400 PSI

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B1631BGS

BILLBOARD, Plastic

$29.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B1932GS

DECAL, Instructions

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 46476GS

PLUG, Plastic

$2.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190100GS

WHEEL, Plastic, 3" X 10"

$35.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 190146GS

PUSHNUT, 1/2"

$9.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton LB5653GS

HANDLE, Snapper Red

$36.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 185859CGS

WAND, Turbo
(Superseded to 193308CGS)

$83.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B2071GS

LOCKNUT, 1/4"-20, Flange
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B1779GS

HINGE, Cover

$8.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B2347GS

CAP, Tube End

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75246GS

TAPTITE, 3/8" - 16 x 1-1/4"

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 27007GS

MOUNT, Rubber Foot
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

19

Briggs & Stratton 71693GS

WASHER, Fender

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 188194GS

RIVET, Blind

$1.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B1460GS

CAP, Vinyl, Black

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B2759GS

HOOK, Chemical Bottle

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B3263GS

GUN, High Pressure

$93.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 94804GS

NOZZLE, 1.10 White Rplcemt

$9.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 97566GS

HANG TAG, Nozzle

$1.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B3335AGS

WAND, Adjustable Nozzle
(Superseded to 188792AGS)

$67.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 97837GS

O-RING, Hi-Pressure

$3.49

$

In Stock, Qty 9

0

28

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 190109GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B5830GS

KIT, O-Ring Maintenance

$

$

Not available

31

Briggs & Stratton B5765GS

MANUAL, B & S Engine

$14.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 87815GS

GLASSES, Safety

$12.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 188287GS

KIT, Nozzle Cleaning
(Superseded to 191922GS)

$18.99

$

In Stock, only 4 left!

0

34

Briggs & Stratton 92479GS

LOCK WASHER, M8 Ribbed

$3.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 23707GS

SHCS, 5/16" - 24 x 1"

$3.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 23139DGS

KEY, 3/16" sq. x 1.50"

$4.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 21783GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 11

0

38

Briggs & Stratton 189942GS

PUMP, Assembly
(Superseded to 206376GS)

Note: (See "Pump" illustration and parts list)

$385.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton BB3061BGS

OIL, 20oz
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
