PW 24000 (84748) - Snapper 2,400 PSI Pressure Washer PRESSURE WASHER PUMP Parts Diagram

2,400 PSI Pressure Washer

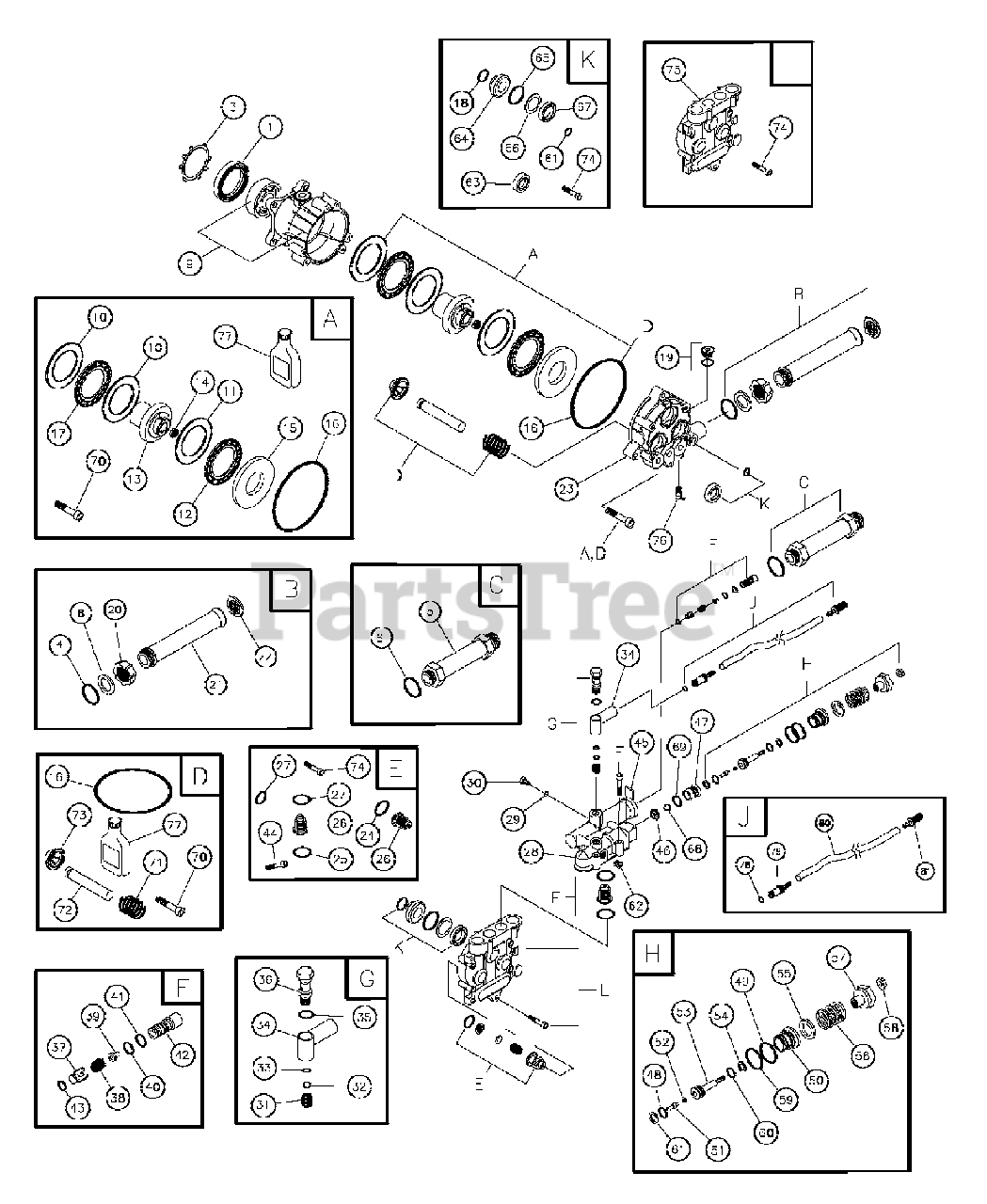

PRESSURE WASHER PUMP Parts Diagram

  • Title

1

Snapper 190568GS

SEAL, 40 x 52 x 7

$59.99

$

Usually ships in 2-12 days

0

3

Snapper 190569GS

RETAINER RING

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 190570GS

ENGINE ADAPTER & BEARING

$138.99

$

Usually ships in 2-12 days

0

16

Snapper 190572GS

O-RING, 80.60 x 2.62

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 190571GS

CAP, Oil

$

$

Not available

23

Snapper 190573GS

PISTON HOUSING

$

$

Not available

28

Snapper 190574GS

MANIFOLD
(Superseded to 190627GS)

$100.99

$

In Stock, only 1 left!

0

29

Snapper 190575GS

O-RING, 4x2
(Superseded to 193971GS)

$7.99

$

Usually ships in 2-12 days

0

30

Snapper 190576GS

SCREW, Venturi
(Superseded to 193971GS)

$7.99

$

Usually ships in 2-12 days

0

34

Snapper 190577GS

CONNECTION, Chemical Inlet

$6.99

$

Usually ships in 2-12 days

0

45

Snapper 190578GS

PIN

$6.49

$

Usually ships in 2-12 days

0

46

Snapper 190579GS

VALVE, Seat Plate Brass
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

47

Snapper 190580GS

VALVE, Seat Stainless
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

62

Snapper 190581GS

CAP, 1/8

$7.99

$

Usually ships in 2-12 days

0

68

Snapper 190582GS

BALL, 7mm Stainless Steel
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

69

Snapper 190584GS

O-RING, 9.25 x 1.78
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

76

Snapper 21783GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

77

Snapper 190585GS

OIL BOTTLE

$15.99

$

In Stock, only 3 left!

0

A

Snapper 190587GS

KIT, WOBBLE PLATE BEARING

$175.99

$

Usually ships in 2-12 days

0

10

FLAT BEARING DISC, 45 x 65 - 1

$

$

Not available

11

FLAT BEARING DISC, 40 x 60-1

$

$

Not available

12

ROLLER BEARING, 40 x 60

$

$

Not available

13

WOBBLE PLATE, 7/8" x 9.0

$

$

Not available

14

CAP

$

$

Not available

15

BEARING DISC, 60 x 30

$

$

Not available

16

O-RING, 80.60 x 2.62

$

$

Not available

17

ROLLER BEARING, 45 x 65

$

$

Not available

70

SCREW, M6 x 30

$

$

Not available

77

OIL BOTTLE

$

$

Not available

B

Snapper 190588GS

KIT, WATER INLET, ANODIZED

$69.99

$

Usually ships in 2-12 days

0

4

O-RING, 14 x 2

$

$

Not available

8

WASHER, 17.5 x 23 x 1.5

$

$

Not available

20

GARDEN HOSE w/FINGER GRIP

$

$

Not available

21

EXTENSION, INLET

$

$

Not available

22

WASHER w/FILTER 24 x 15 x 3.5

$

$

Not available

C

Snapper 190589GS

KIT, OUTLET, ANODIZED

$41.99

$

Usually ships in 2-12 days

0

5

OUTLET EXTENSION, M22-G3/8

$

$

Not available

6

O-RING, 13 x 2

$

$

Not available

D

Snapper 190590GS

KIT, PISTON

$93.99

$

Usually ships in 2-12 days

0

16

O-RING, 80.60 x 2.62

$

$

Not available

70

SCREW, M6 x 30

$

$

Not available

71

SPRING

$

$

Not available

72

PISTON, 14 x 63, Stainless Steel

$

$

Not available

73

SPRING PLATE

$

$

Not available

77

OIL BOTTLE

$

$

Not available

E

Snapper 190591GS

KIT, CHECK VALVES

$40.99

$

In Stock, only 2 left!

0

24

O-RING, 12 x 2

$

$

Not available

25

O-RING, 12.42 x 1.78

$

$

Not available

26

ASSY, Check Valve

$

$

Not available

27

O-RING, 15 x 2

$

$

Not available

44

SCREW, M5 x 30

$

$

Not available

74

SCREW M6 x 35

$

$

Not available

F

Snapper 190592GS

KIT, INLET CHECK

$20.99

$

In Stock, only 1 left!

0

37

VALVE, Non-Return

$

$

Not available

38

SPRING, 9.2 x 10 x 0.8

$

$

Not available

39

INJECTION NOZZLE, M6 Flat

$

$

Not available

40

O-RING, 8 x 2

$

$

Not available

41

O-RING, 9.25 x 1.78

$

$

Not available

42

INJECTION NIPPLE

$

$

Not available

43

O-RING, 5 x 2

$

$

Not available

G

Snapper 190593GS

KIT, CHEMICAL INJECTION

$

$

Not available

31

SPRING, 3.5

$

$

Not available

32

BALL, 3/16"

$

$

Not available

33

O-RING, 3.69 x 1.78

$

$

Not available

34

CONNECTION, Chemical Inlet

$

$

Not available

35

O-RING, 7.66 x 1.78

$

$

Not available

36

FIXING SCREW

$

$

Not available

H

Snapper 190594GS

KIT, UNLOADER

$81.99

$

Usually ships in 2-12 days

0

48

BACK RING, 9 x 12 x 1.5

$

$

Not available

49

O-RING, 14 x 1.78

$

$

Not available

50

VALVE, By Pass, Brass

$

$

Not available

51

PISTON

$

$

Not available

52

SPRING, Easy Start

$

$

Not available

53

PISTON, Body

$

$

Not available

54

RING, Back, 6 x 9

$

$

Not available

55

SPACER

$

$

Not available

56

SPRING, Regulation Press

$

$

Not available

57

NUT, Regulation Press

$

$

Not available

58

NUT

$

$

Not available

59

O-RING, 12.42 x 1.78

$

$

Not available

60

O-RING, 6.07 x 1.78

$

$

Not available

61

O-RING, 8.73 x 1.78

$

$

Not available

J

Snapper 189971GS

KIT, CHEMICAL HOSE

$

$

Not available

78

O-RING, 6.75 x 1.78

$

$

Not available

79

TUBE, Inlet Support

$

$

Not available

80

TUBE, Chemical

$

$

Not available

81

FILTER

$

$

Not available

K

Snapper 190595GS

KIT, SEAL SET

$96.99

$

In Stock, only 1 left!

0

18

O-RING, 11.11 x 1.78

$

$

Not available

63

RING, 14 x 22 x 5

$

$

Not available

64

SEAL

$

$

Not available

65

O-RING, 23.52 x 1.78

$

$

Not available

66

WASHER, 19 x 13 x 1.5

$

$

Not available

67

SEAL, H.P.

$

$

Not available

61

O-RING, 8.73 x 1.78

$

$

Not available

74

SCREW, M6 x 35

$

$

Not available

L

Snapper 190596GS

KIT, HEAD BRASS

$163.99

$

Usually ships in 2-12 days

0

74

SCREW, M6 x 35

$

$

Not available

75

HEAD, Pump

$

$

Not available
