PW 27000 (84749) - Snapper 2,700 PSI Pressure Washer PRESSURE WASHER UNIT Parts Diagram

2,700 PSI Pressure Washer

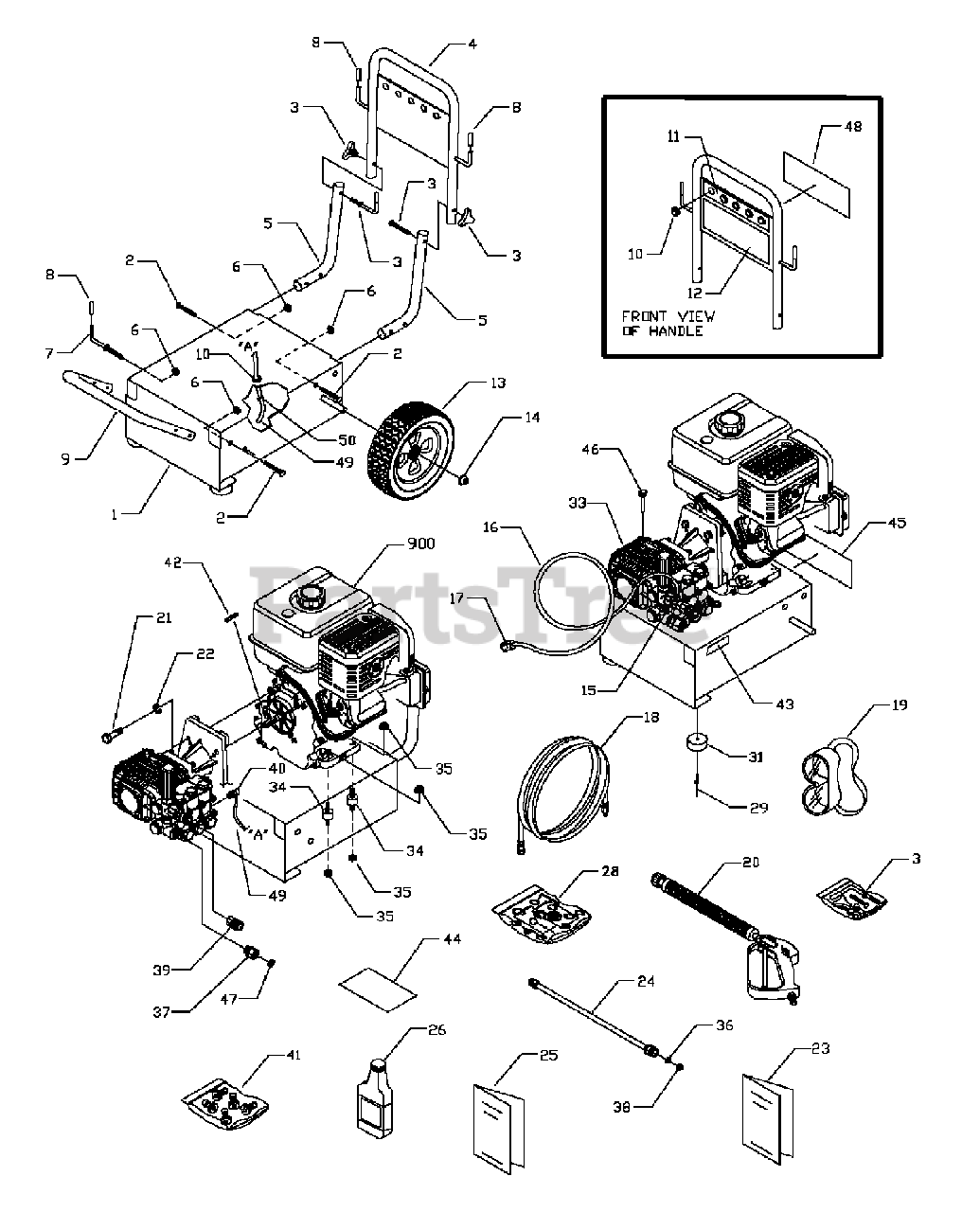

PRESSURE WASHER UNIT Parts Diagram

  • Title

1

Snapper L190336GS

BASE

$137.99

$

Usually ships in 2-12 days

0

2

Snapper B2043GS

BOLT, Carriage

$2.99

$

Usually ships in 2-12 days

0

3

Snapper 187978GS

KIT, Handle Hardware

$7.49

$

Usually ships in 2-12 days

0

4

Snapper C190293GS

HANDLE
(Superseded to B190293GS)

$104.99

$

Usually ships in 2-12 days

0

0140

Snapper 1919326SM

WASHER, 5/16

Note: each

$4.49

$

In Stock, Qty 13

0

5

Snapper CB1981GS

SUPPORT, Handle

$19.99

$

Usually ships in 2-12 days

0

6

Snapper 99583GS

NUT, Hex Flange

$2.99

$

Usually ships in 2-12 days

0

7

Snapper B2150GS

HOOK, Square Neck Gun

$4.49

$

Usually ships in 2-12 days

0

8

Snapper B2516GS

CAP, Black Vinyl

$2.99

$

Usually ships in 2-12 days

0

9

Snapper CB1982GS

BUMPER

$

$

Not available

10

Snapper 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 187974AGS

DECAL, 5 QD Nozzles

$17.99

$

Usually ships in 2-12 days

0

12

Snapper 190715GS

DECAL, Unit

$29.99

$

Usually ships in 2-12 days

0

13

Snapper 190100GS

ASSEMBLY, Wheel

$35.99

$

Usually ships in 2-12 days

0

14

Snapper 190146GS

PUSHNUT

$9.99

$

In Stock, only 2 left!

0

15

Snapper 48031GGS

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0

16

Snapper A1040DGS

HOSE, Chemical Inject
(Superseded to 705076)

$12.99

$

In Stock, only 1 left!

0

17

Snapper A1041GS

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

18

Snapper 187625GS

HOSE
(Superseded to 205734GS)

$

$

Not available

19

Snapper 87815GS

GOGGLES, Safety

$12.99

$

Usually ships in 2-12 days

0

20

Snapper B1436BGS

GUN, with Molded Grip
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

21

Snapper 23645GS

CAPSCREW, Socket Head

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 22237GS

WASHER, Lock

$2.49

$

Usually ships in 2-12 days

0

23

Snapper 190666GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

24

Snapper B3858GS

ASSEMBLY, Wand Extension with QD

$

$

Not available

25

Snapper MS6321

MANUAL, Engine

$

$

Currently unavailable

26

Snapper BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

28

Snapper 190862GS

KIT, O-Ring Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, only 3 left!

0

29

Snapper 188194GS

BLIND RIVET

$1.49

$

Usually ships in 2-12 days

0

31

Snapper 191413GS

VIBE MOUNT, with Washer

$6.49

$

In Stock, Qty 7

0

33

Snapper B2126AGS

ASSEMBLY, Pump (see pages 18-19)

$911.99

$

Usually ships in 2-12 days

0

34

Snapper 21217GS

VIBRATION MOUNT, Double Ended

$7.49

$

In Stock, only 1 left!

0

35

Snapper 67989GS

NUT, Flange

$3.49

$

In Stock, Qty 20+

0

36

Snapper B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

37

Snapper 186839GS

INLET, Garden Hose

$26.99

$

Usually ships in 2-12 days

0

38

Snapper 97837GS

O-RING, High Pressure Hose

$3.49

$

In Stock, Qty 9

0

39

Snapper 95458GS

QUICK CONNECT
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0

40

Snapper B1554GS

VALVE, Thermal Relief
(Superseded to 195016GS)

$25.99

$

In Stock, only 1 left!

0

41

Snapper 186301GS

KIT, Nozzles QD

$71.99

$

Usually ships in 2-12 days

0

42

Snapper 63281GS

KEY
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

43

Snapper 187952GS

DECAL, Cool Down System

$8.49

$

Usually ships in 2-12 days

0

44

Snapper 190277EGS

CARD, Owners Registration

$

$

Currently unavailable

45

Snapper 190715GS

DECAL, PW, Snapper

$29.99

$

Usually ships in 2-12 days

0

47

Snapper B2384GS

FILTER, Inlet

$4.49

$

Usually ships in 2-12 days

0

48

Snapper B4160GS

DECAL, Warning/Start

$15.99

$

Usually ships in 2-12 days

0

49

Snapper B3107GS

HOSE, Thermal Relief

$12.99

$

In Stock, only 1 left!

0

50

Snapper 48031BGS

CLAMP, Hose Band

$3.49

$

Usually ships in 2-12 days

0

900

ENGINE, NSP

$

$

Not available
