PW-3100 - Echo 3,100 PSI Pressure Washer (SN: PW-190625-0000001 - PW-190625-9999999) Pump Assy Parts Diagram

3,100 PSI Pressure Washer

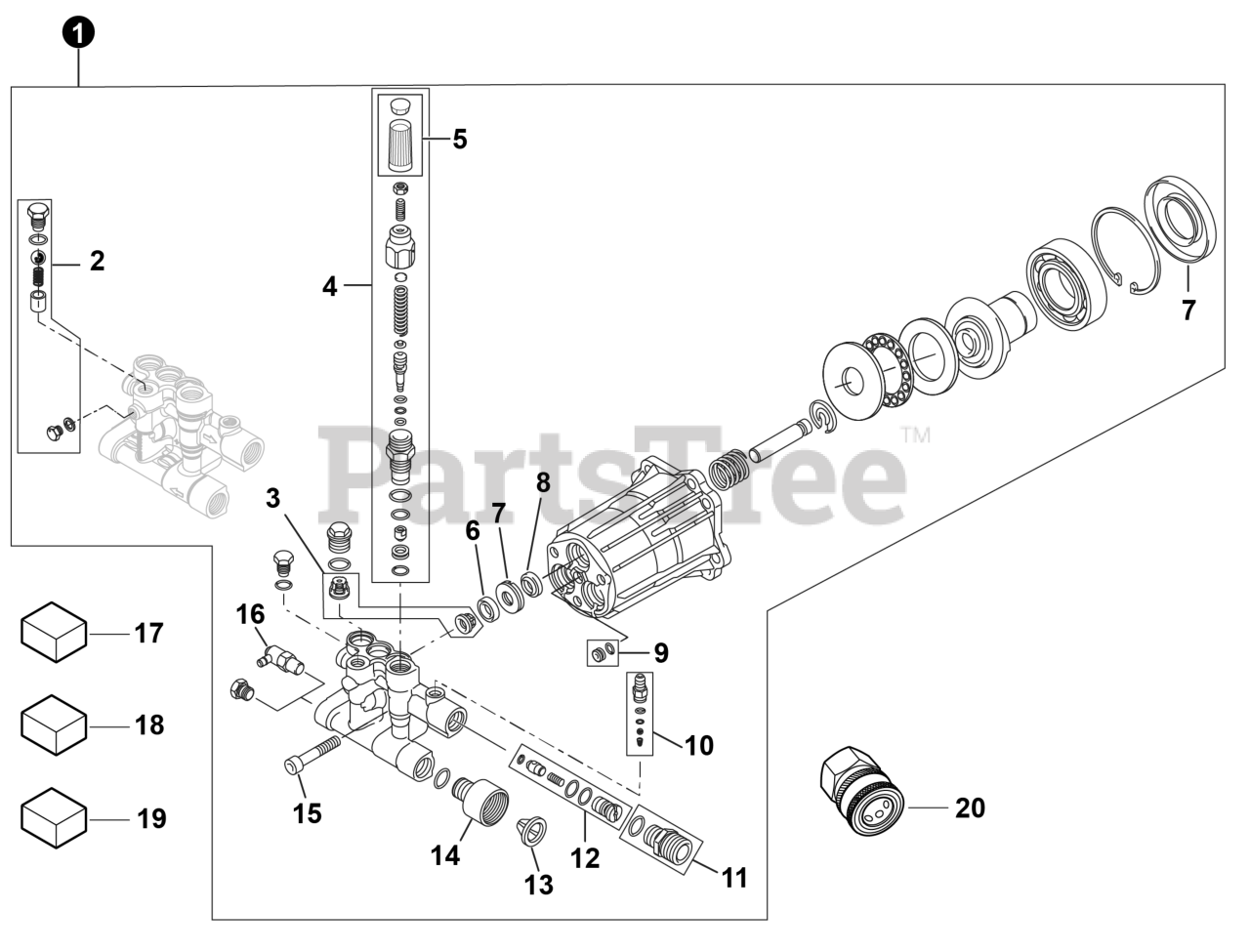

Pump Assy Parts Diagram

  • Title

1

Echo YH604000010

PUMP ASSY.

Note: Includes Items 2-16

$321.99

$

Usually ships in 2-4 days

0

2

Echo YH482000180

KIT, EZ START

$32.99

$

Usually ships in 2-4 days

0

3

Echo YH482000190

KIT, VALVE

$78.99

$

Usually ships in 2-4 days

0

4

Echo YH482000140

KIT, UNLOADER

$147.99

$

Usually ships in 2-4 days

0

5

Echo YH482000740

KNOB,ADJUSTMENT

$15.99

$

Usually ships in 2-4 days

0

6

Echo YH482000210

KIT, WATER SEAL

$103.99

$

Usually ships in 2-4 days

0

7

Echo YH482000240

BUSHING

$46.99

$

Usually ships in 2-4 days

0

8

Echo YH482000220

KIT, OIL SEAL

$67.99

$

Usually ships in 2-4 days

0

9

Echo YH482000430

OIL PLUG W/O-RING

$66.99

$

Usually ships in 2-4 days

0

10

Echo YH482000200

KIT, INJECTOR

$29.99

$

Usually ships in 2-4 days

0

11

Echo YH482000420

OUTLET FITTING W/O-RING

$163.99

$

Usually ships in 2-4 days

0

12

Echo YH482000410

CHECK VALVE ASSEMBLY

$156.99

$

Usually ships in 2-4 days

0

13

Echo YH482000230

FILTER, INLET SCREEN

$7.99

$

Usually ships in 2-4 days

0

14

Echo YH482000400

ADAPTOR, GARDEN HOSE INLET

$49.99

$

Usually ships in 2-4 days

0

15

Echo YH482000120

BOLT, PUMP MOUNTING W/WASHER

$11.99

$

Usually ships in 2-4 days

0

16

Echo YH482000170

VALVE, THERMAL RELIEF

$22.99

$

Usually ships in 2-4 days

0

17

Echo YH482000150

KIT, O-RING

$39.99

$

Usually ships in 2-4 days

0

18

Echo YH482000100

O-RING, 1/4" - 100 Pack

$30.99

$

Usually ships in 2-4 days

0

19

Echo YH482000110

O-RING, 3/8" - 100 Pack

$42.99

$

Usually ships in 2-4 days

0

20

Echo YH482000470

3/8" FNPT Q/C

$13.99

$

Usually ships in 2-4 days

0
