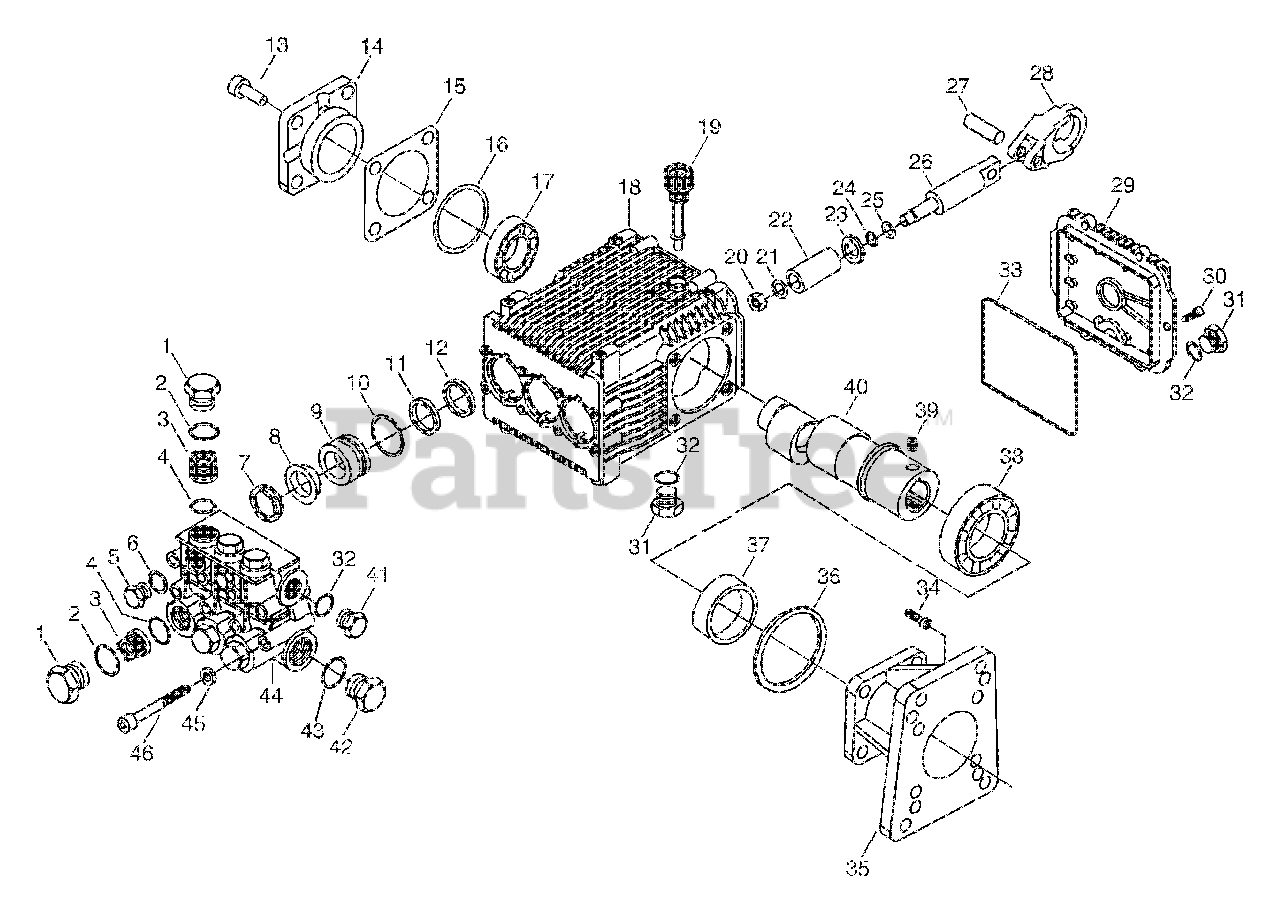

PW 35000 (01662-0) - Snapper 3,500 PSI Pressure Washer Pump Parts Diagram

3,500 PSI Pressure Washer

Pump Parts Diagram

  • Title

Briggs & Stratton 187263GS

Complete Pump Assy
(Superseded to 195110GS)

Note: (See "Unloader" illustration and parts list)

$

$

Not available

1

Briggs & Stratton 101B2327GS

Plug

$74.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 100B2327GS

O-Ring

$6.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 102B2327GS

Valve

$27.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 103B2327GS

O-Ring
(Superseded to 10387822PGS)

$5.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 104B2327GS

Plug

$25.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 105B2327GS

O-Ring
(Superseded to 194434GS)

$5.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 106B2327GS

Support Ring

$21.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 107B2327GS

Gasket

$82.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 108B2327GS

Piston Guide

$

$

Not available

10

Briggs & Stratton 109B2327GS

O-Ring

$6.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 110B2327GS

Gasket

$50.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 186381GS

Seal

$59.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 112B2327GS

Screw

$

$

Not available

14

Briggs & Stratton 113B2327GS

Bearing Support

$

$

Not available

15

Briggs & Stratton 132B2327GS

Shim

$16.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 114B2327GS

O-Ring
(Superseded to 10887628PGS)

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 186382GS

Bearing

$86.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 186383GS

Pump Housing

$

$

Not available

19

Briggs & Stratton 117B2327GS

Oil Cap
(Superseded to 11287628PGS)

$30.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 118B2327GS

Nut

$

$

Not available

21

Briggs & Stratton 119B2327GS

Washer

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 120B2327GS

Piston

$138.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 121B2327GS

Spacer

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 122B2327GS

O-Ring

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 161B2327GS

Ring

$6.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 123B2327GS

Piston Guide

$151.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 124B2327GS

Piston Pin

$145.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 186384GS

Con Rod

$229.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 118B2126GS

Cover

$83.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 1343501GS

Screw

$

$

Currently unavailable

31

Briggs & Stratton 186385GS

Plug
(Superseded to 203034GS)

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 134B2327GS

O-Ring

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 116B2126GS

O-Ring

$6.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 142B2126GS

Screw
(Superseded to 155B2327GS)

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 150B2126GS

Flange

$193.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 139B1410GS

O-Ring

$

$

Not available

37

Briggs & Stratton 138B1410GS

Seal

$62.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 137B1410GS

Bearing

$157.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 152B2126GS

Grub Screw

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 186386GS

Shaft

$326.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 136B2327GS

Plug

$26.99

$

Usually ships in 2-12 days

0

42

UNKNOWN

$

$

Not available

43

UNKNOWN

$

$

Not available

44

Briggs & Stratton 139B2327GS

Pump Head

$683.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 159B2327GS

Washer

$3.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 140B2327GS

Screw

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B1554GS

Thermal Relief Valve
(Superseded to 195016GS)

$26.99

$

Usually ships in 2-12 days

0
