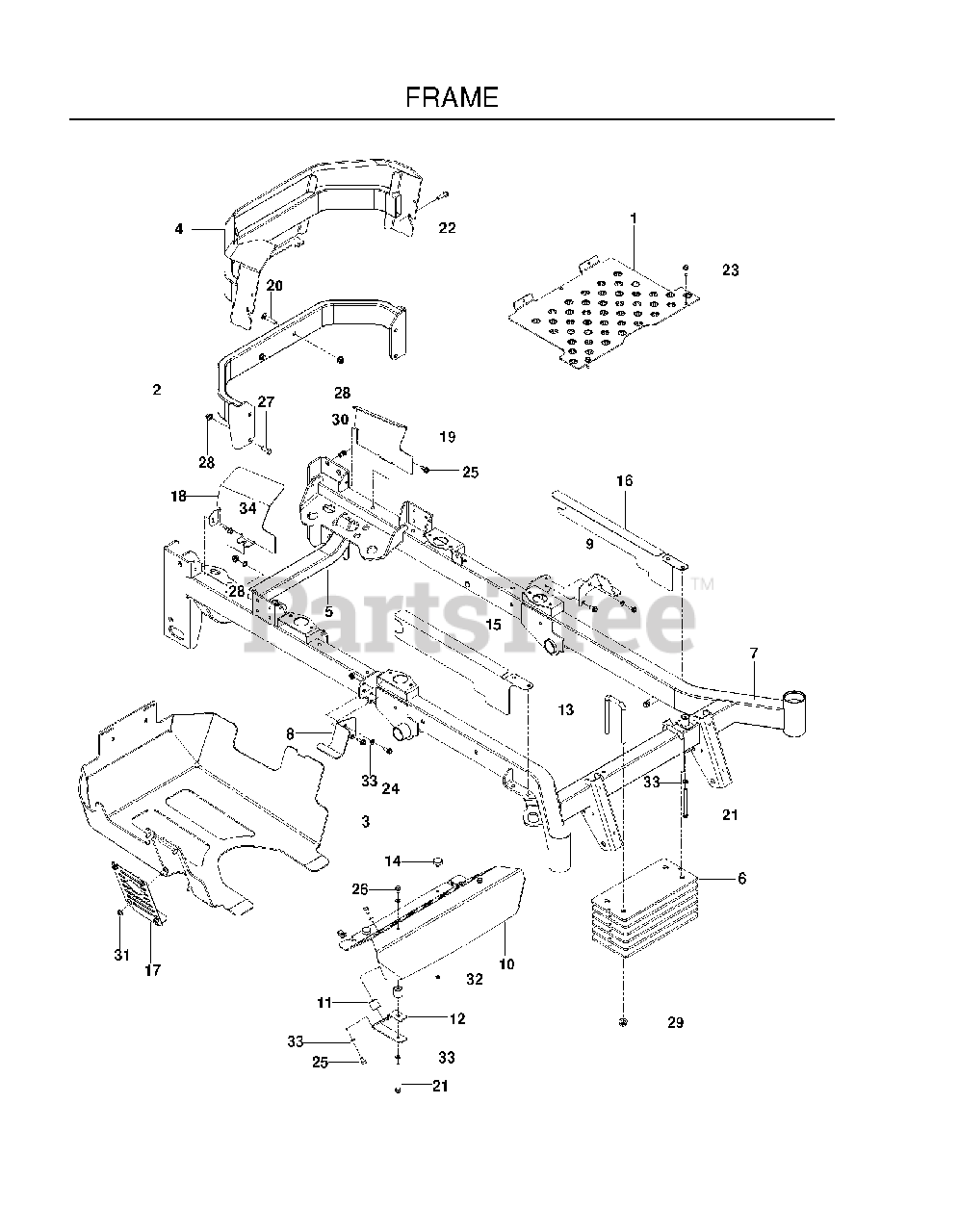

PZ 29 D CE (966616701) - Husqvarna Zero-Turn Mower (2011-02) FRAME Parts Diagram

Zero-Turn Mower

FRAME Parts Diagram

  • Title

1

Husqvarna 574215602

PLATE, FLOOR PAN, OR

$262.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522738902

BUMPER, REAR, ORG
(Superseded to 522738904)

$341.99

$

Usually ships in 3-10 days

0

3

Husqvarna 577100803

SKID.PLATE.GRAY

$

$

Not available

4

Husqvarna 574433003

GUARD.REAR.GRAY.ZTR

Note: w / SAFETY DECALS

$

$

Not available

5

Husqvarna 574432602

CROSS MEMBER, GRAY

$

$

Not available

6

Husqvarna 575880502

PLATE, WEIGHT BLK
(Superseded to 575880501)

$39.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522739302

FRAME.DIESEL.ORANGE
(Superseded to 574482806)

$

$

Not available

8

Husqvarna 529279903

MOUNT, TANK, RT-BLK

Note: RT

$96.99

$

Usually ships in 3-10 days

0

9

Husqvarna 529280003

MOUNT, TANK, LT-BLK

Note: LT

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574215702

PLATE, FOOT REST, OR

$102.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510083201

MOUNT, F/F INSERT

$5.99

$

In Stock, only 3 left!

0

12

Husqvarna 510040301

BRACKET, REST MOUNT
(Superseded to 510040302)

$113.99

$

Usually ships in 3-10 days

0

13

Husqvarna 575880601

LINKAGE, U-BOLT

$37.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 9

0

15

Husqvarna 577483002

SKIRT.RH.BLK

Note: RT

$

$

Not available

16

Husqvarna 577482802

SKIRT.LH.BLK

Note: LT

$

$

Not available

17

Husqvarna 577100902

PANEL.ACCESS.GRAY

$

$

Not available

18

Husqvarna 577101102

Note: RT

$

$

Currently unavailable

19

Husqvarna 577101002

GUARD.LT.REAR.GRAY

Note: LT

$

$

Not available

20

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.49

$

In Stock, only 4 left!

0

21

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4
(Superseded to 596241601)

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.49

$

In Stock, only 1 left!

0

25

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$5.99

$

In Stock, only 2 left!

0

26

Husqvarna 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$

$

Not available

27

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

28

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

29

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 14

0

30

Husqvarna 539111028

NUTSERT 5/16-18 THICK GRIP
(Superseded to 594977401)

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 9

0

32

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

33

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD
(Superseded to 596565001)

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539109603

WASHER 3/8 EXT STAR ZD

$

$

Not available
