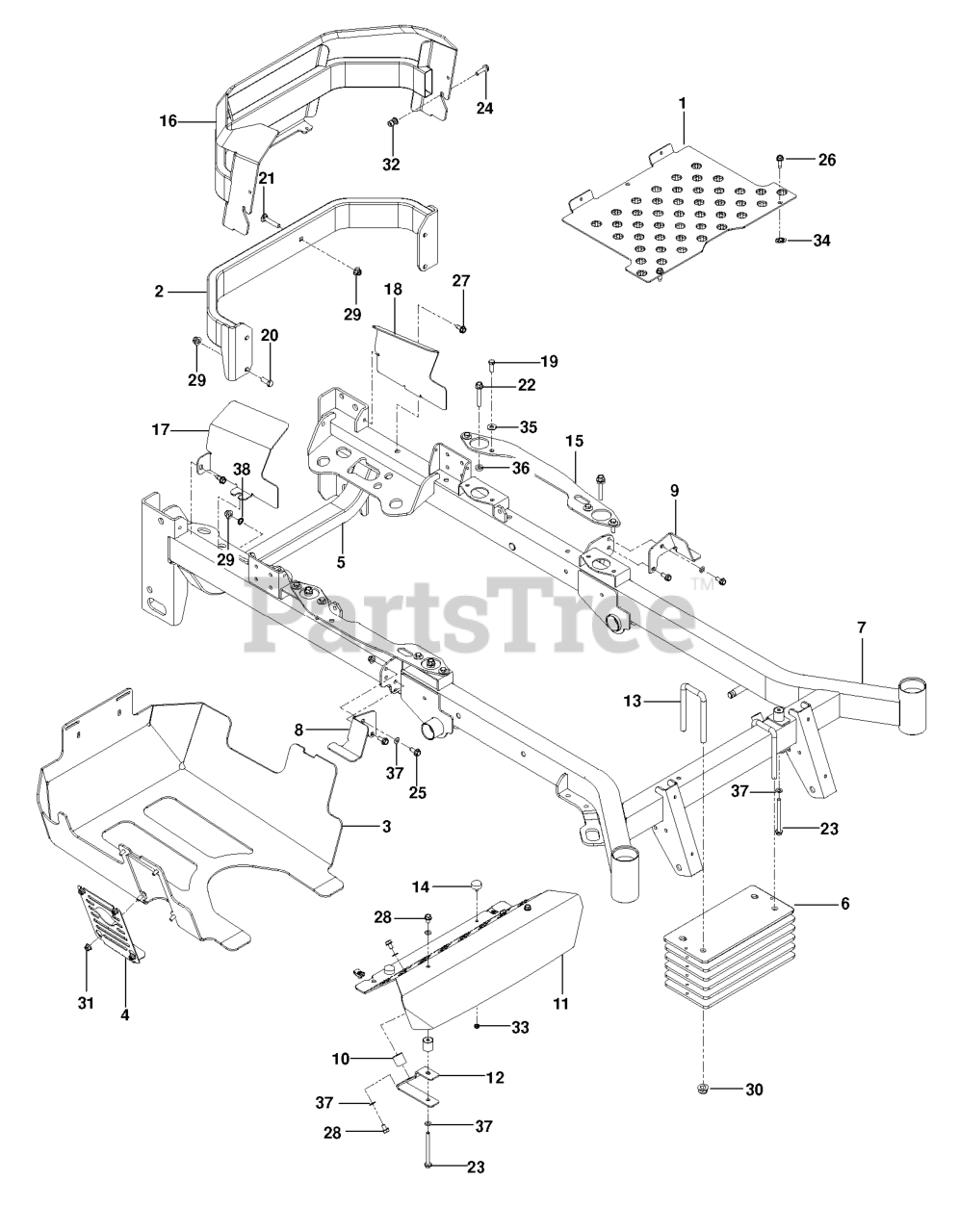

PZ 29 D CE (966616701) - Husqvarna Zero-Turn Mower (2012-02) FRAME Parts Diagram

Zero-Turn Mower

FRAME Parts Diagram

  • Title

6

Husqvarna 575880502

PLATE, WEIGHT BLK
(Superseded to 575880501)

$41.99

$

Usually ships in 3-10 days

0

9

Husqvarna 529280003

MOUNT, TANK, LT-BLK

Note: LT

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574433003

GUARD, REAR W/DECALS

Note: w/ SAFETY DECALS

$

$

Not available

22

Husqvarna 574496901

HHFS 3/8-16 X 2-1/4 GR 5 ZD
(Superseded to 577098301)

$7.49

$

In Stock, only 2 left!

0

21

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$2.49

$

In Stock, Qty 15

0

7

Husqvarna 574482806

FRAME.W/DECALS.PZ6029/PZ29

Note: W/ DECALS

$

$

Not available

38

Husqvarna 539109603

WASHER 3/8 EXT STAR ZD

$

$

Not available

20

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 9

0

17

Husqvarna 577101102

Note: RT

$

$

Currently unavailable

13

Husqvarna 575880601

LINKAGE, U-BOLT

$37.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574215702

PLATE, FOOT REST, OR

$107.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

2

Husqvarna 522738902

BUMPER, REAR, ORG
(Superseded to 522738904)

$359.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4
(Superseded to 596241601)

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 7

0

4

Husqvarna 577100902

PANEL.ACCESS.GRAY

$

$

Not available

37

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD
(Superseded to 596565001)

$3.99

$

In Stock, only 3 left!

0

10

Husqvarna 510083201

MOUNT, F/F INSERT

$5.99

$

In Stock, Qty 5

0

8

Husqvarna 529279903

XX MOUNT, TANK, RT-BLK

Note: RT

$96.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN
(Superseded to 596030701)

$3.99

$

In Stock, Qty 7

0

3

Husqvarna 577100803

SKID.PLATE.GRAY

$

$

Not available

1

Husqvarna 574215602

PLATE, FLOOR PAN, OR

$262.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 16

0

15

Husqvarna 577483002

SKIRT.RH.BLK

Note: RT

$

$

Not available

26

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

32

Husqvarna 539111028

NUTSERT 5/16-18 THICK GRIP
(Superseded to 594977401)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$3.99

$

In Stock, Qty 13

0

33

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

27

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$

$

Not available

34

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

$3.99

$

In Stock, only 1 left!

0

12

Husqvarna 510040301

BRACKET, REST MOUNT
(Superseded to 510040302)

$119.99

$

Usually ships in 3-10 days

0

25

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

18

Husqvarna 577101002

GUARD.LT.REAR.GRAY

Note: LT

$

$

Not available

5

Husqvarna 574432602

CROSS MEMBER, GRAY

$

$

Not available
