PZ 34 FX BF (966553901-00) - Husqvarna Zero-Turn Mower (2011-01) PEDALS Parts Diagram

Zero-Turn Mower

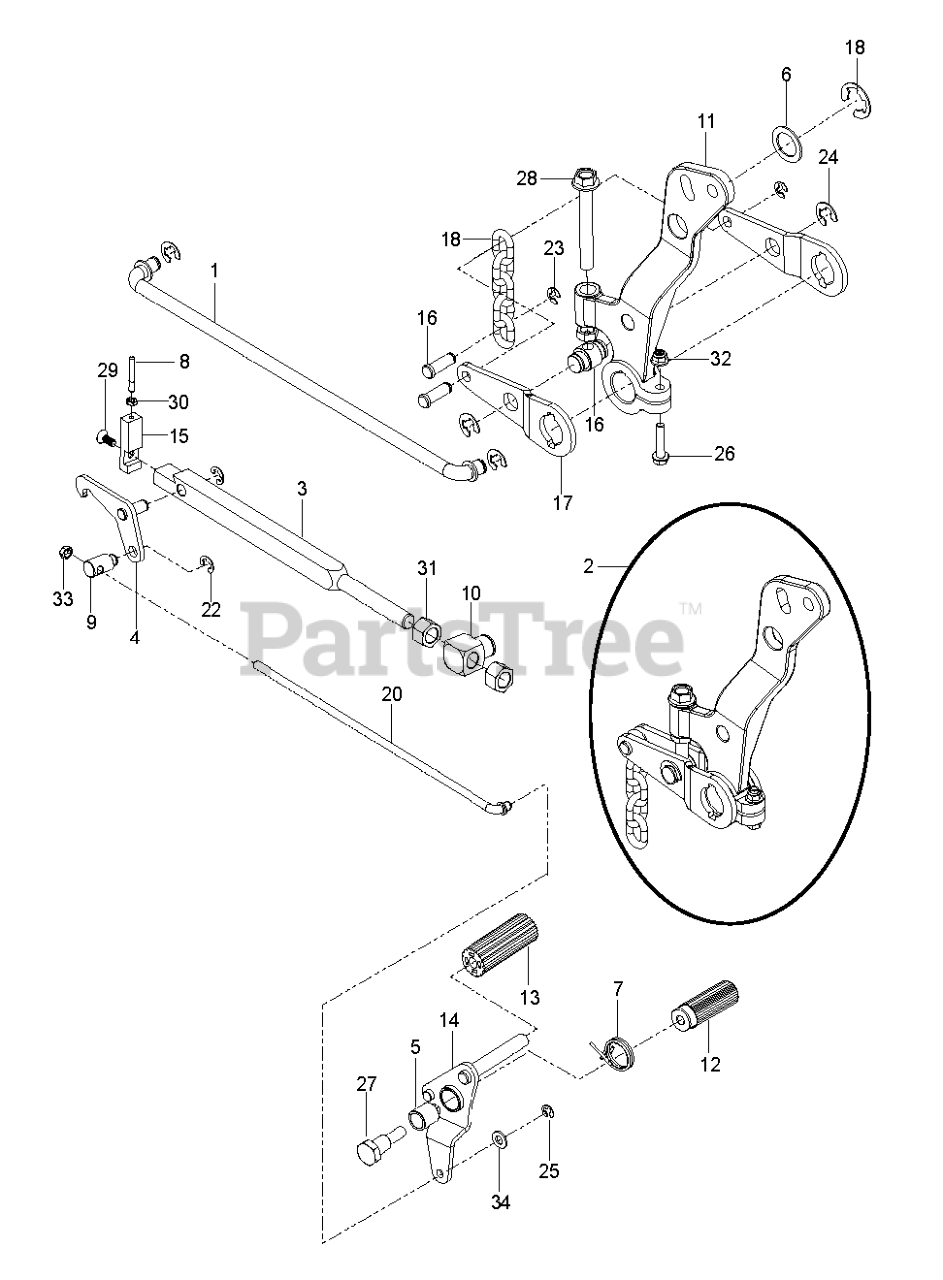

PEDALS Parts Diagram

  • Title

26

Husqvarna 525465401

HHFS 5/16-18 X 1.5 GD 5
(Superseded to 525465402)

$2.49

$

Usually ships in 3-10 days

0

5

Husqvarna 510089201

BUSHING, SLEEVE 3/4 X 1.0

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 510406501

CAP, HEIGHT BAR
(Superseded to 510406502)

$20.99

$

Usually ships in 3-10 days

0

12

Husqvarna 510089501

PAD, FOOT PEDAL
(Superseded to 532008883)

$6.99

$

In Stock, only 2 left!

0

1

Husqvarna 510089801

ROD, LIFT
(Superseded to 510089802)

$170.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510406301

BAR, HEIGHT
(Superseded to 510406302)

$56.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510022502

ARM, LIFT LEVER
(Superseded to 525465502)

$170.99

$

Usually ships in 3-10 days

0

20

Husqvarna 510407601

ROD, HEIGHT LATCH
(Superseded to 597340001)

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539916561

MACHINE BUSHING

$

$

Not available

29

Husqvarna 522705601

SCREW, 5/16-18 X 3/4 FLAT HEX

$3.49

$

In Stock, only 1 left!

0

22

Husqvarna 539101949

E-RING 1/2 (2 2)

$

$

Not available

7

Husqvarna 510376701

SPRING, TORSION

$3.49

$

In Stock, only 1 left!

0

14

Husqvarna 510407801

PEDAL, RELEASE WLDMT

$170.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102454

E RING 3/4

$

$

Not available

2

Husqvarna 525465501

ASSEMBLY, DECK LIFT CRANK

$125.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539108677

NUT 3/4-10 HEX ZD
(Superseded to 596916901)

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 510407201

LATCH, HEIGHT WLDMT
(Superseded to 510407202)

$28.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102641

LIFT CHAIN
(Superseded to 594722002)

$4.99

$

In Stock, only 4 left!

0

25

Husqvarna 539990870

E RING 3/8"

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 510023601

SHAFT, LIFT TRUNION WSL

$20.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539105069

E-RING 5/8

$

$

Not available

33

Husqvarna 539108732

NUT 3/8-24 JAM
(Superseded to 596029901)

$3.49

$

In Stock, only 2 left!

0

32

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 9

0

21

Husqvarna 539912730

E-RING 1"
(Superseded to 812000053)

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 510408301

PEDAL, DECK HEIGHT
(Superseded to 510408302)

$34.99

$

Usually ships in 3-10 days

0

19

Husqvarna 510090101

PIN, 7/16 CLEVIS
(Superseded to 596919401)

$5.99

$

In Stock, only 1 left!

0

34

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 539991112

NUT 1/4-20 JAM
(Superseded to 597357701)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 510406601

LINK, INDICATOR
(Superseded to 510406602)

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 510407501

SWIVEL, HEIGHT LATCH
(Superseded to 510407502)

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 525465701

HHFS 1/2-13 X 4 GR 5

$

$

Not available

10

Husqvarna 510406401

SWIVEL, HEIGHT BAR
(Superseded to 510406402)

$28.99

$

Usually ships in 3-10 days

0

27

Husqvarna 510408201

BOLT, SHOULDER
(Superseded to 510408202)

$20.99

$

In Stock, only 1 left!

0

17

Husqvarna 510410002

ARM LIFT BLK

$

$

Not available
