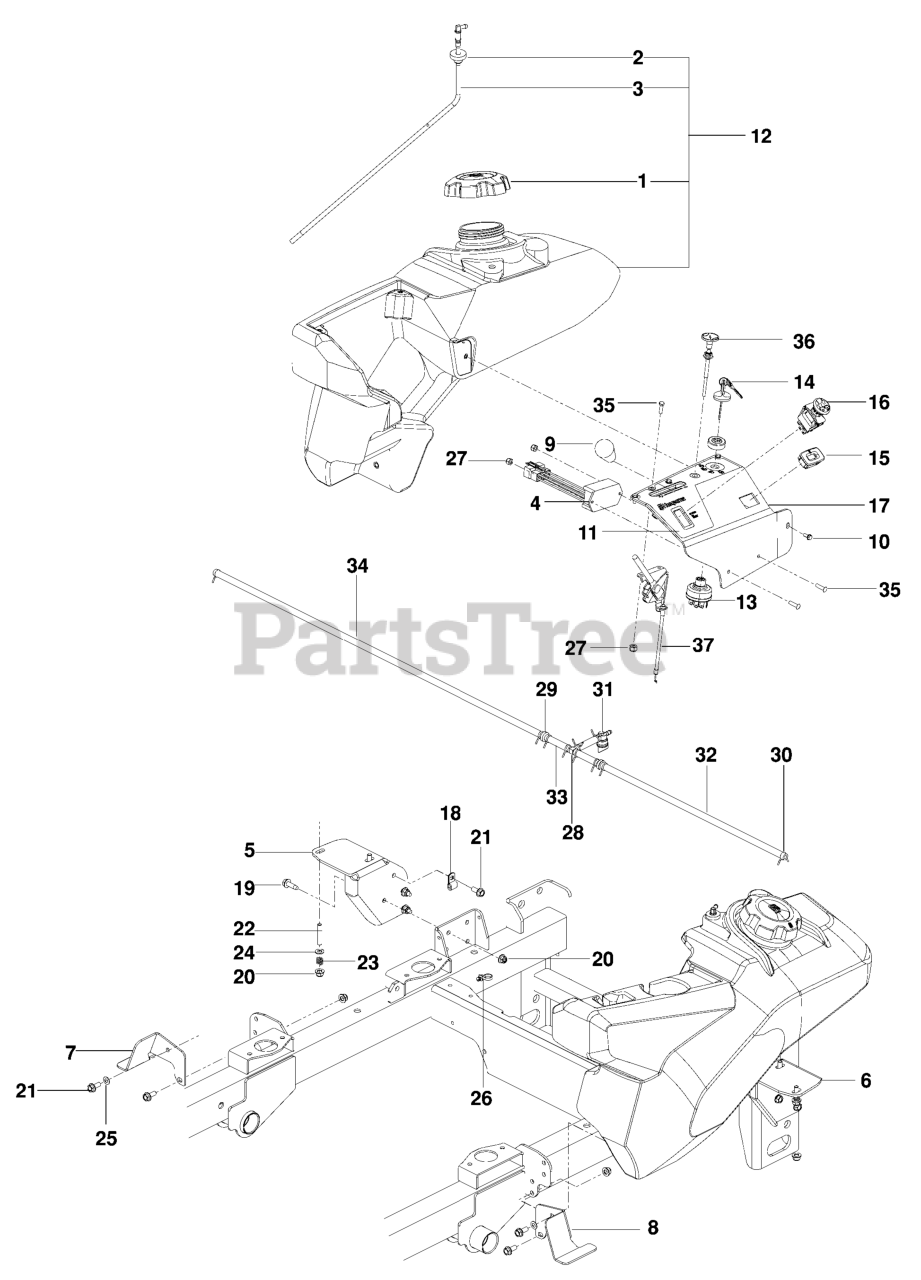

PZ 5426 FX (966060901) - Husqvarna 54" Zero-Turn Mower (2009-09) Ignition System Parts Diagram

54" Zero-Turn Mower

Ignition System Parts Diagram

  • Title

1

Husqvarna 539130393

FUEL CAP, HTC

$

$

Not available

2

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 525865401

FITTING, FUEL

$37.99

$

In Stock, Qty 6

0

4

Husqvarna 574514001

TIMER, SEAT

$102.99

$

In Stock, only 1 left!

0

5

Husqvarna 529279603

MOUNT, RT TANK, BLK

$42.99

$

Usually ships in 3-10 days

0

6

Husqvarna 529279703

MOUNT, LT TANK, BLK

$125.99

$

Usually ships in 3-10 days

0

7

Husqvarna 529279902

MOUNT, TANK, RT
(Superseded to 529279903)

$96.99

$

Usually ships in 3-10 days

0

8

Husqvarna 529280002

MOUNT, TANK, LT
(Superseded to 529280003)

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 10

0

10

Husqvarna 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, Qty 6

0

11

Husqvarna 510246602

DECAL, CONTROL, GAS

$9.49

$

In Stock, only 2 left!

0

12

Husqvarna 525811002

FUEL TANK ASM RT

$

$

Not available

Husqvarna 525810902

FUEL TANK ASM LT

$

$

Not available

13

Husqvarna 510259801

RB SWITCH, KEY EARLY PZ ONLY
(Superseded to 578261701)

$28.99

$

In Stock, only 2 left!

0

14

Husqvarna 574455501

KEY, IGNITION

$6.99

$

In Stock, Qty 20+

0

15

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$31.99

$

In Stock, only 2 left!

0

16

Husqvarna 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$74.99

$

In Stock, Qty 8

0

17

Husqvarna 529280202

PANEL.CONTROL.GAS.GRAY
(Superseded to 592979103)

$39.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539109867

DOUBLE TUBE CLAMP

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

21

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.49

$

In Stock, only 1 left!

0

22

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 2 left!

0

23

Husqvarna 539102845

SPRING

$3.49

$

In Stock, only 4 left!

0

24

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD
(Superseded to 596565001)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 574206601

TEE, FUEL LINE, .25

$

$

Not available

29

Husqvarna 574206701

VALVE, CHECK, .25

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539912222

HOSE CLAMP

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539916325

FUEL VALVE

$13.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539922091

FUEL LINE

$

$

Not available

33

Husqvarna 505215101

FUEL LINE 3"

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539105280

HOSE 35"

$

$

Not available

35

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$3.49

$

In Stock, Qty 5

0

36

Husqvarna 574206901

CABLE, CHOKE, 48"
(Superseded to 531077202)

$34.99

$

In Stock, Qty 5

0

Husqvarna 574206902

CABLE, CHOKE, 60"

$

$

Not available

37

Husqvarna 574207002

CABLE, THROTTLE, 60"

$62.99

$

In Stock, Qty 13

0

Husqvarna 574207001

CABLE, THROTTLE, 46"

$62.99

$

In Stock, Qty 14

0
