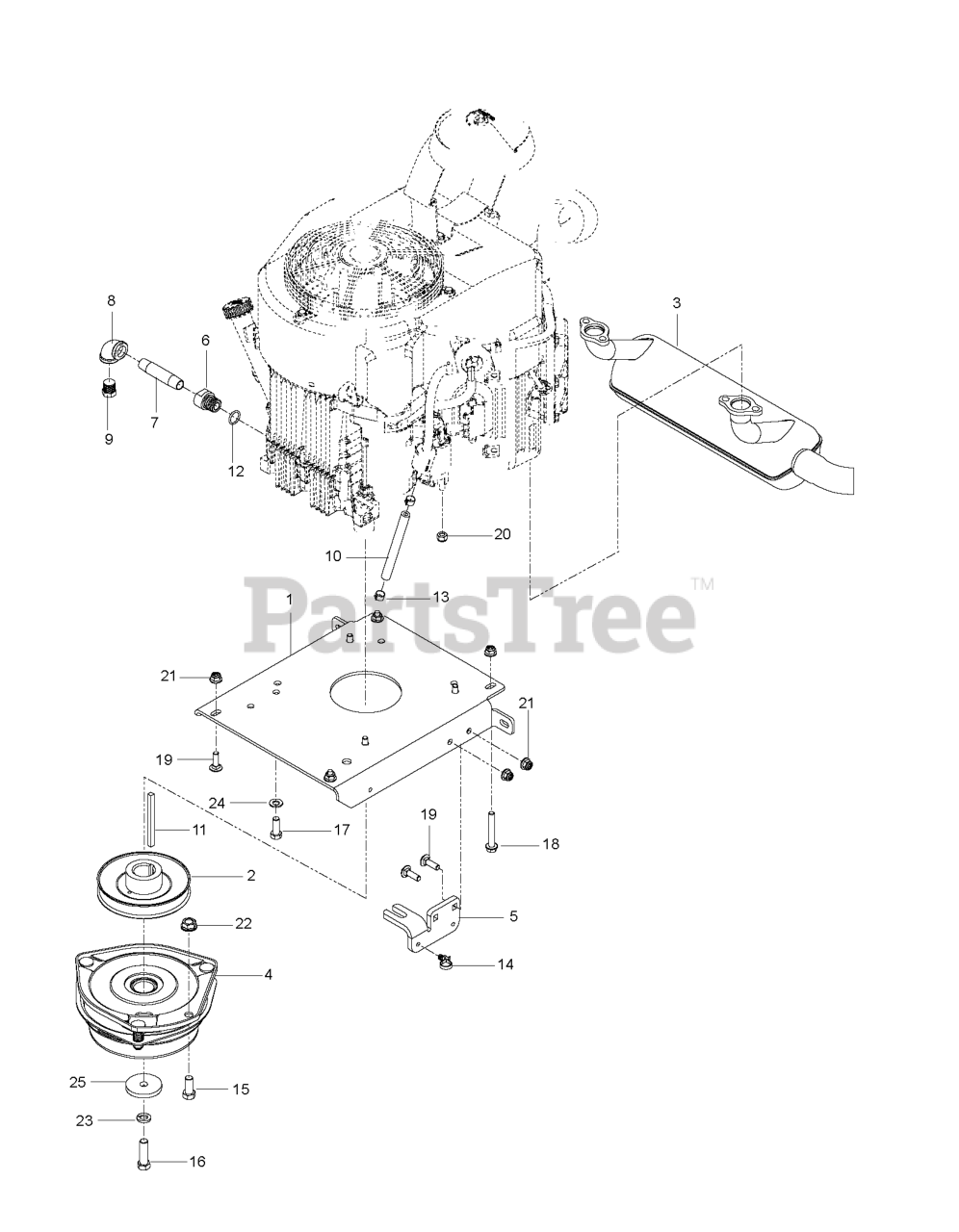

PZ 5426 FX - Husqvarna 54" Zero-Turn Mower (2009-08) ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

54" Zero-Turn Mower

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

22

Husqvarna 535469101

%BRAKER
(Superseded to 574316001)

$17.99

$

In Stock, only 1 left!

0

15

Husqvarna 544928601

CABLE

$

$

Not available

26

Husqvarna 544441201

SPRING

$

$

Not available

33

Husqvarna 502655701

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 535441101

MAT

$

$

Not available

8

Husqvarna 506899801

NUT

$

$

Not available

11

Husqvarna 544442201

IGNITION SWITCH

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 544442301

NUT

$3.49

$

In Stock, only 1 left!

0

27

Husqvarna 506909902

SPACER TUBE

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522624301

NUT

$

$

Not available

23

Husqvarna 544440701

RIVET

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 502466601

NEEDS DESCRIPTION

$

$

Currently unavailable

25

Husqvarna 506909701

WASHER

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506836802

BELT

$20.99

$

Usually ships in 3-10 days

0

31

Husqvarna 544415701

BRACKET

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 544442401

IGNITION KEY

$10.99

$

Usually ships in 3-10 days

0

32

Husqvarna 544440701

RIVET

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 576183801

CABLE

$

$

Not available

17

Husqvarna 544439801

RELAY

$22.99

$

In Stock, only 2 left!

0

24

Husqvarna 506909601

SWITCH

$31.99

$

In Stock, only 1 left!

0

10

Husqvarna 544442101

IGNITION SWITCH

$31.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522622101

SCREW EHHM

$

$

Not available

28

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

16

Husqvarna 544926104

$

$

Not available

21

Husqvarna 722783902

Rivet

$

$

Not available

20

Husqvarna 506909301

SPRING

$7.99

$

Usually ships in 3-10 days

0

1

Husqvarna 510138501

$

$

Not available

7

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

3

Husqvarna 510026901

$

$

Not available

34

Husqvarna 502653001

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 544415501

RP MICRO SWITCH
(Superseded to 574316101)

$17.99

$

In Stock, only 1 left!

0
