PZ 5426 FX - Husqvarna 54" Zero-Turn Mower (2009-08) WHEELS & TIRES Parts Diagram

54" Zero-Turn Mower

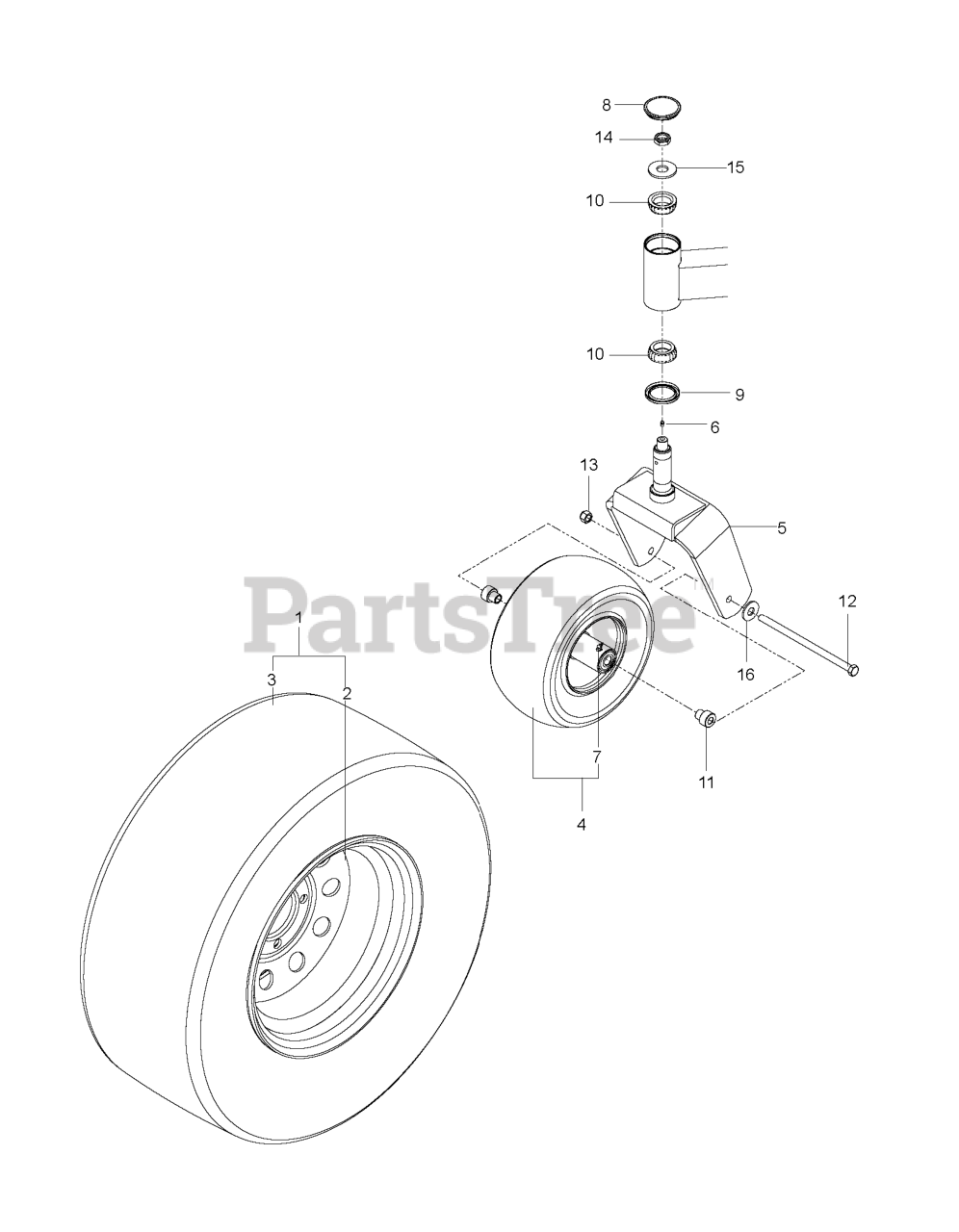

WHEELS & TIRES Parts Diagram

  • Title

24

Husqvarna 506539403

SHAFT
(Superseded to 506539404)

$28.99

$

Usually ships in 3-10 days

0

7

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

30

Husqvarna 735312600

RETAINING RING SGA 25

$5.99

$

In Stock, Qty 5

0

21

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

31

Husqvarna 535423701

NEEDS DESCRIPTION

$

$

Not available

33

Husqvarna 502649301

NEEDS DESCRIPTION

$

$

Not available

19

Husqvarna 506500802

BUSHING

$

$

Not available

13

Husqvarna 738210404

BALL BEARING 6004-2RS1

$22.99

$

In Stock, Qty 20+

0

18

Husqvarna 738220419

BALL-BEARING 6204-2RS

$26.99

$

In Stock, Qty 9

0

9

Husqvarna 506863401

SPACER
(Superseded to 587080901)

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 506522401

ROLLER

$20.99

$

In Stock, only 3 left!

0

3

Husqvarna 506670801

CONNECTOR

$11.99

$

In Stock, only 1 left!

0

17

Husqvarna 735314010

CIRCLIP SGH 47

$7.99

$

In Stock, only 1 left!

0

10

Husqvarna 728844305

Screw

$

$

Not available

35

Husqvarna 732212051

NUT

$6.99

$

In Stock, only 4 left!

0

34

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

28

Husqvarna 544427301

WIRE GUIDE

$45.99

$

Usually ships in 3-10 days

0

1

Husqvarna 506671901

SPRING

$40.99

$

In Stock, only 4 left!

0

22

Husqvarna 506589104

RP STEERING CABLE COMPLETE
(Superseded to 577199904)

$28.99

$

In Stock, only 1 left!

0

26

Husqvarna 506554601

STEERING CHAIN

$31.99

$

In Stock, only 2 left!

0

32

Husqvarna 535447801

NEEDS DESCRIPTION

$

$

Not available

6

Husqvarna 728745505

SCREW

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

25

Husqvarna 735311420

RETAINING RING

$4.99

$

In Stock, Qty 5

0

8

Husqvarna 575632201

STEERING ROD

$85.99

$

In Stock, only 1 left!

0

4

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0

27

Husqvarna 506554701

LINK

$7.99

$

In Stock, only 2 left!

0

2

Husqvarna 506576301

SPRING BRACKET

$

$

Not available

11

Husqvarna 506863601

WASHER

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 506500903

RP PULLEY

$

$

Not available

5

Husqvarna 544375201

NEEDS DESCRIPTION

$

$

Not available

16

Husqvarna 535424101

ROLLER

$

$

Not available

29

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, Qty 13

0

20

Husqvarna 506675402

BOLT

$9.49

$

In Stock, only 3 left!

0

12

Husqvarna 506887801

SPACER

$9.49

$

Usually ships in 3-10 days

0
