PZ 6029 D (966476701) - Husqvarna 60" Zero-Turn Mower (2012-02) FRAME Parts Diagram

60" Zero-Turn Mower

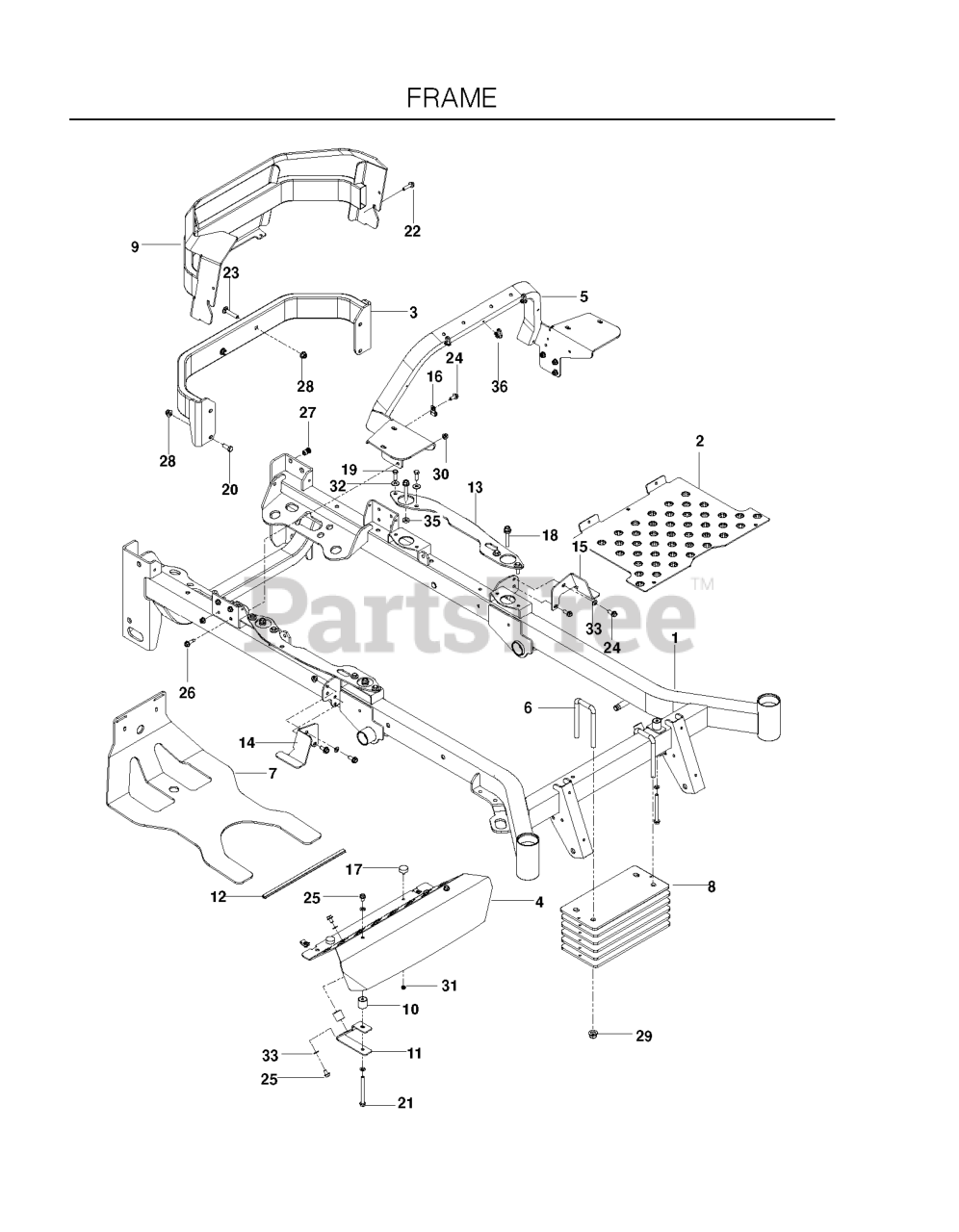

FRAME Parts Diagram

  • Title

30

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 17

0

33

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD
(Superseded to 596565001)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574496901

HHFS 3/8-16 X 2-1/4 GR 5 ZD
(Superseded to 577098301)

$7.49

$

In Stock, only 2 left!

0

24

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

26

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539111028

NUTSERT 5/16-18 THICK GRIP
(Superseded to 594977401)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 579418502

STRAP.FRAME.BLACK

$

$

Not available

7

Husqvarna 522739902

PLATE, SKID, BLACK

$

$

Not available

3

Husqvarna 522738904

BUMPER.REAR.W/DECALS

$359.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539109867

DOUBLE TUBE CLAMP

$8.49

$

Usually ships in 3-10 days

0

2

Husqvarna 574215602

PLATE, FLOOR PAN, OR

$275.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574482806

FRAME.W/DECALS.PZ6029/PZ29

$

$

Not available

9

Husqvarna 574433003

GUARD, REAR W/DECALS

$

$

Not available

17

Husqvarna 575811501

BUMPER, 1/4-20 STUD, 1/4

$8.49

$

Usually ships in 3-10 days

0

35

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$3.99

$

In Stock, Qty 5

0

12

Husqvarna 539112294

RP.FLEX TRIM, BLK-LENGTH 1 FT
(Superseded to 589362602)

$5.99

$

In Stock, only 2 left!

0

32

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, only 4 left!

0

21

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4
(Superseded to 596241601)

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 9

0

22

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

In Stock, Qty 6

0

15

Husqvarna 529280003

MOUNT, TANK, LT-BLK

$22.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 11

0

23

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$2.49

$

In Stock, Qty 9

0

4

Husqvarna 574215702

PLATE, FOOT REST, OR

$107.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575880502

PLATE, WEIGHT BLK
(Superseded to 575880501)

$41.99

$

Usually ships in 3-10 days

0

14

Husqvarna 529279903

XX MOUNT, TANK, RT-BLK

$22.99

$

Usually ships in 3-10 days

0

29

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 16

0

10

Husqvarna 510083201

MOUNT, F/F INSERT

$5.99

$

In Stock, Qty 20+

0

5

Husqvarna 574432602

CROSS MEMBER, GRAY

$

$

Not available

6

Husqvarna 575880601

LINKAGE, U-BOLT

$39.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510040301

BRACKET, REST MOUNT
(Superseded to 510040302)

$119.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN
(Superseded to 596030701)

$3.99

$

In Stock, Qty 6

0
