PZ 6030 CV (966614101) - Husqvarna 60" Zero-Turn Mower (2011-01) ENGINE PLATE Parts Diagram

60" Zero-Turn Mower

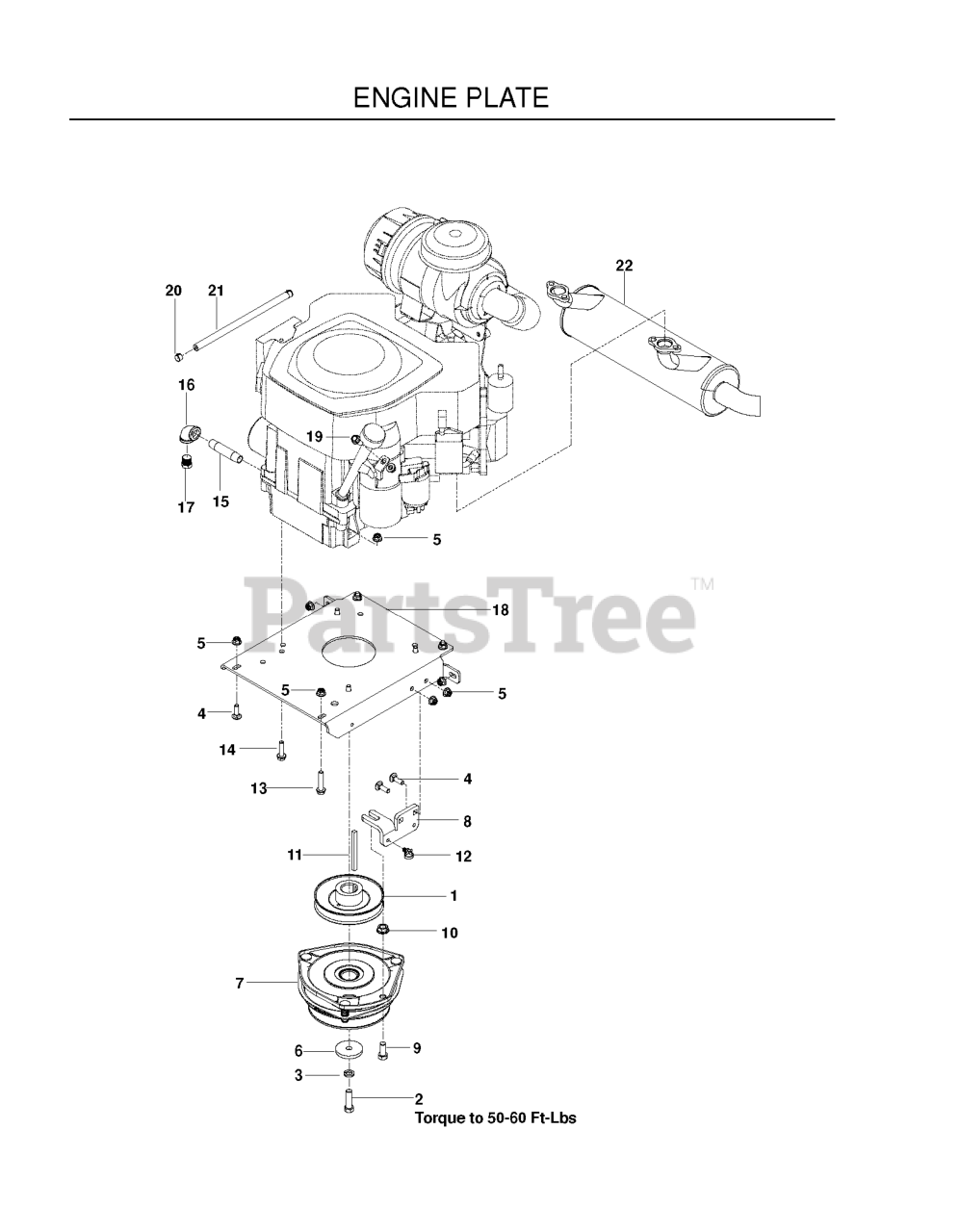

ENGINE PLATE Parts Diagram

  • Title

1

Husqvarna 510019801

PULLEY, ENGINE

$71.99

$

In Stock, Qty 7

0

2

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

3

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

4

Husqvarna 539990208

RHSNB 5/16C X 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

6

Husqvarna 539125626

BLADE WASHER

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 525749501

CLUTCH, GT3.5

$740.99

$

In Stock, only 1 left!

0

8

Husqvarna 522676702

STOP, CLUTCH, OGURA
(Superseded to 597180803)

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539100143

HCS 7/16-14 X 1 GR 5 ZD
(Superseded to 596238601)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102582

NUT 7/16C WHIZ
(Superseded to 596577901)

$3.99

$

In Stock, only 1 left!

0

11

Husqvarna 525749901

KEY, 1/4 SQ X 3.5

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574233801

HHFS 5/16-18 X 2.25 GD 5
(Superseded to 574233802)

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 525465401

HHFS 5/16-18 X 1.5 GD 5
(Superseded to 525465402)

$2.49

$

In Stock, only 1 left!

0

15

Husqvarna 539118911

PIPE NIPPLE 3/8 X 3

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105072

90 DEG.ELBOW 3/8NPT

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 522837001

PLUG, DRAIN 3/8 NPTF

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 510004602

PLATE.ENGINE.BLACK

$125.99

$

Usually ships in 3-10 days

0

19

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

20

Husqvarna 539912222

HOSE CLAMP

$3.49

$

In Stock, only 2 left!

0

21

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, only 4 left!

0

22

Husqvarna 525756201

MUFFLER.CV23.THRU.CV30

$

$

Not available

Husqvarna 522795601

HARNESS, KOHLER PIGTAIL

Note: NOT SHOWN

$43.99

$

Usually ships in 3-10 days

0

Husqvarna 574825801

KIT, SPARK ARRESTOR

Note: NOT SHOWN

$101.99

$

Usually ships in 3-10 days

0
