PZ 6030 CV (966614101) - Husqvarna 60" Zero-Turn Mower (2011-01) HYDRAULIC PUMP MOTOR Parts Diagram

60" Zero-Turn Mower

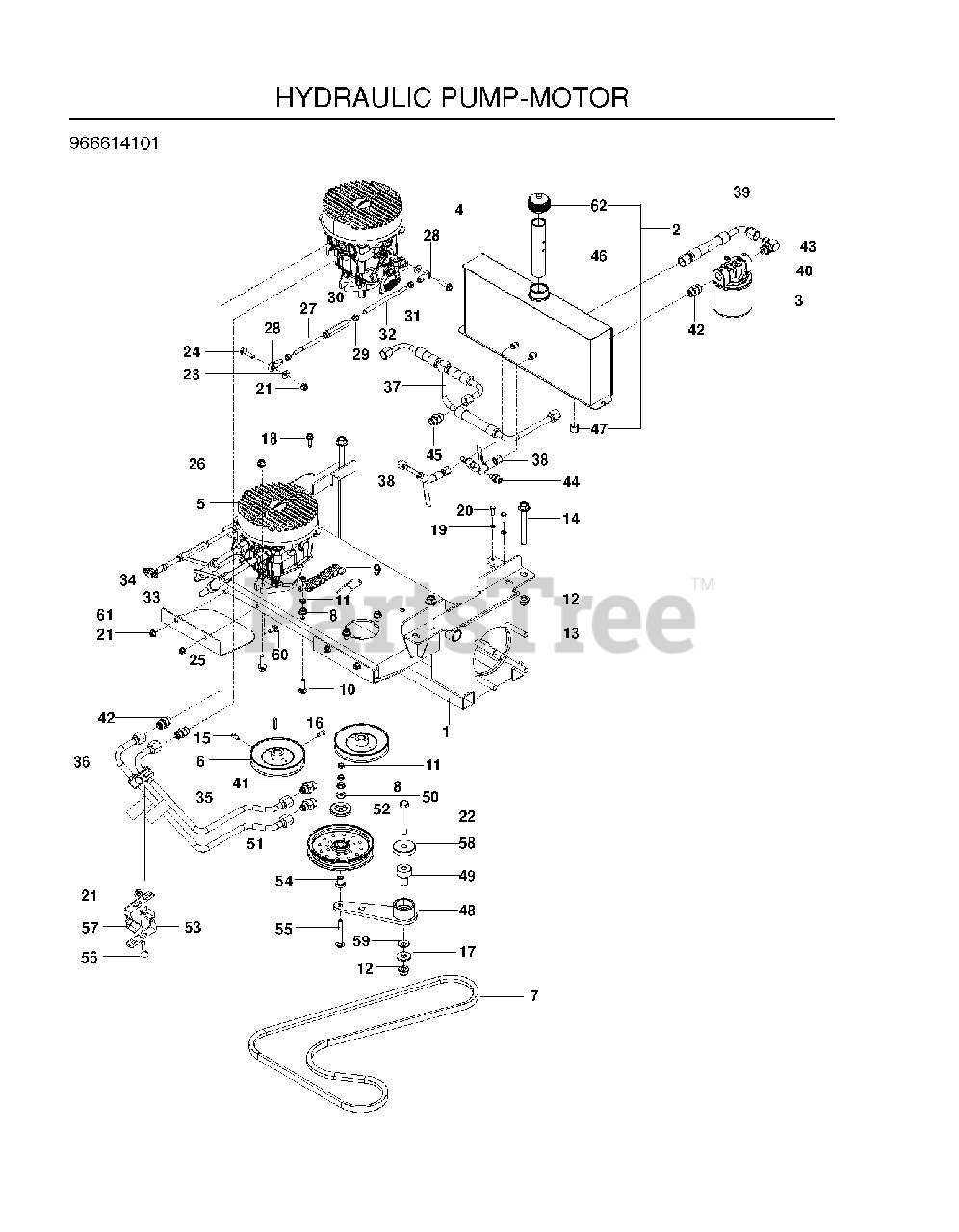

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Husqvarna 506007902

FRAME, NYDR SUB, BLK

$626.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576035902

ASSEMBLY, RESERVOIR, OIL

$512.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522805401

FILTER 25 MICRON

$31.99

$

In Stock, Qty 12

0

4

Husqvarna 505351001

HG_PUMP, 12CC RT

$1937.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505351101

HG_PUMP, 12CC LT

$1937.99

$

Usually ships in 3-10 days

0

6

Husqvarna 510019001

PULLEY, PUMP 15MM

$68.99

$

Usually ships in 3-10 days

0

7

Husqvarna 573978301

BELT, "B", 75.5"

$68.99

$

In Stock, only 4 left!

0

8

Husqvarna 539990613

NUT 3/8C WHIZ

$

$

Not available

9

Husqvarna 577437201

SPRING, PUMP

$9.49

$

In Stock, only 2 left!

0

10

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

$

$

Not available

11

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 14

0

13

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

14

Husqvarna 525544801

HHFS 1/2-13 X 4.0 GD8 ZD
(Superseded to 525544802)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.49

$

In Stock, only 2 left!

0

16

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$5.99

$

In Stock, only 2 left!

0

17

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.49

$

In Stock, only 3 left!

0

18

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539990052

LOCKWASHER 1/4"
(Superseded to 596564801)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539990072

HCS 1/4C X 5/8
(Superseded to 596582501)

$3.49

$

In Stock, only 1 left!

0

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 9

0

22

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, Qty 7

0

23

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 525834201

HHFS 3/8-16 X 1.25 GD 5
(Superseded to 525834202)

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

27

Husqvarna 522559201

LINKAGE, CONTROL, FT
(Superseded to 522842701)

$34.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539102590

BALL JOINT, RIGHT HANDED

$26.99

$

In Stock, only 2 left!

0

29

Husqvarna 539108732

NUT 3/8-24 JAM
(Superseded to 596029901)

$3.49

$

In Stock, only 2 left!

0

30

Husqvarna 539109149

TURNBUCKLE, 3/8

$56.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990223

NUT 5/16F

$

$

Not available

32

Husqvarna 522842801

LINKAGE, CONTROL, RR

$170.99

$

Usually ships in 3-10 days

0

33

Husqvarna 510010101

LINE, RT A

$113.99

$

Usually ships in 3-10 days

0

34

Husqvarna 510010201

LINE, RT B

$113.99

$

Usually ships in 3-10 days

0

35

Husqvarna 510010301

LINE, LT A

$159.99

$

Usually ships in 3-10 days

0

36

Husqvarna 510010401

LINE, LT B

$170.99

$

Usually ships in 3-10 days

0

37

Husqvarna 510010501

LINE, CHARGE

$205.99

$

Usually ships in 3-10 days

0

38

Husqvarna 510010601

LINE, CASE

$45.99

$

Usually ships in 3-10 days

0

39

Husqvarna 510010701

LINE, SUCTION

$31.99

$

Usually ships in 3-10 days

0

40

Husqvarna 575872301

FILTER HEAD

$

$

Not available

41

Husqvarna 539101239

CONNECTOR, STRAIGHT
(Superseded to 539101237)

$9.49

$

In Stock, only 1 left!

0

42

Husqvarna 539101237

FITTING, STRAIGHT F6400-8-8-0

$9.49

$

In Stock, only 1 left!

0

43

Husqvarna 539101242

ELBOW, 90 DEGREE

$39.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539103316

STRAIGHT FITG

$14.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539131748

FITTING, HYDRO

$9.49

$

Usually ships in 3-10 days

0

46

Husqvarna 522805001

TUBE, ANTI-SPLASH

$159.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539105168

NUT 9/16-18 JIC CAP

$4.99

$

In Stock, only 3 left!

0

48

Husqvarna 510041603

ARM, IDLER, STEEL, W/BGS

$62.99

$

Usually ships in 3-10 days

0

49

Husqvarna 510206301

PIVOT, BEARING

$5.99

$

In Stock, only 2 left!

0

50

Husqvarna 522023401

WASHER, 3/8 THICK

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna 510283702

IDLER, FLAT, 5.5"
(Superseded to 510283701)

$51.99

$

Usually ships in 3-10 days

0

52

Husqvarna 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, only 3 left!

0

53

Husqvarna 576573701

BRACKET, CLAMP
(Superseded to 576573703)

$20.99

$

Usually ships in 3-10 days

0

54

Husqvarna 525435601

PIVOT, IDLER

$6.99

$

In Stock, Qty 12

0

55

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$

$

Not available

56

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

57

Husqvarna 576577601

RUBBER, VIBRATION, 1/2"

$

$

Not available

58

Husqvarna 539114662

SHIELD, DUST
(Superseded to 596394601)

$3.49

$

Usually ships in 3-10 days

0

59

Husqvarna 539115528

CONTACT BELLSPR 1/2

$

$

Not available

60

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

61

Husqvarna 574398502

SHIELD, PULLEY, BLK

$11.99

$

Usually ships in 3-10 days

0

62

Husqvarna 522805301

CAP, HYDRAULIC

$31.99

$

Usually ships in 3-10 days

0

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

Note: NOT SHOWN

$4.99

$

In Stock, only 1 left!

0
