PZ 6034 FX ZT (966614601) - Husqvarna 60" Zero-Turn Mower (2011-01) HYDRAULIC PUMP MOTOR Parts Diagram

60" Zero-Turn Mower

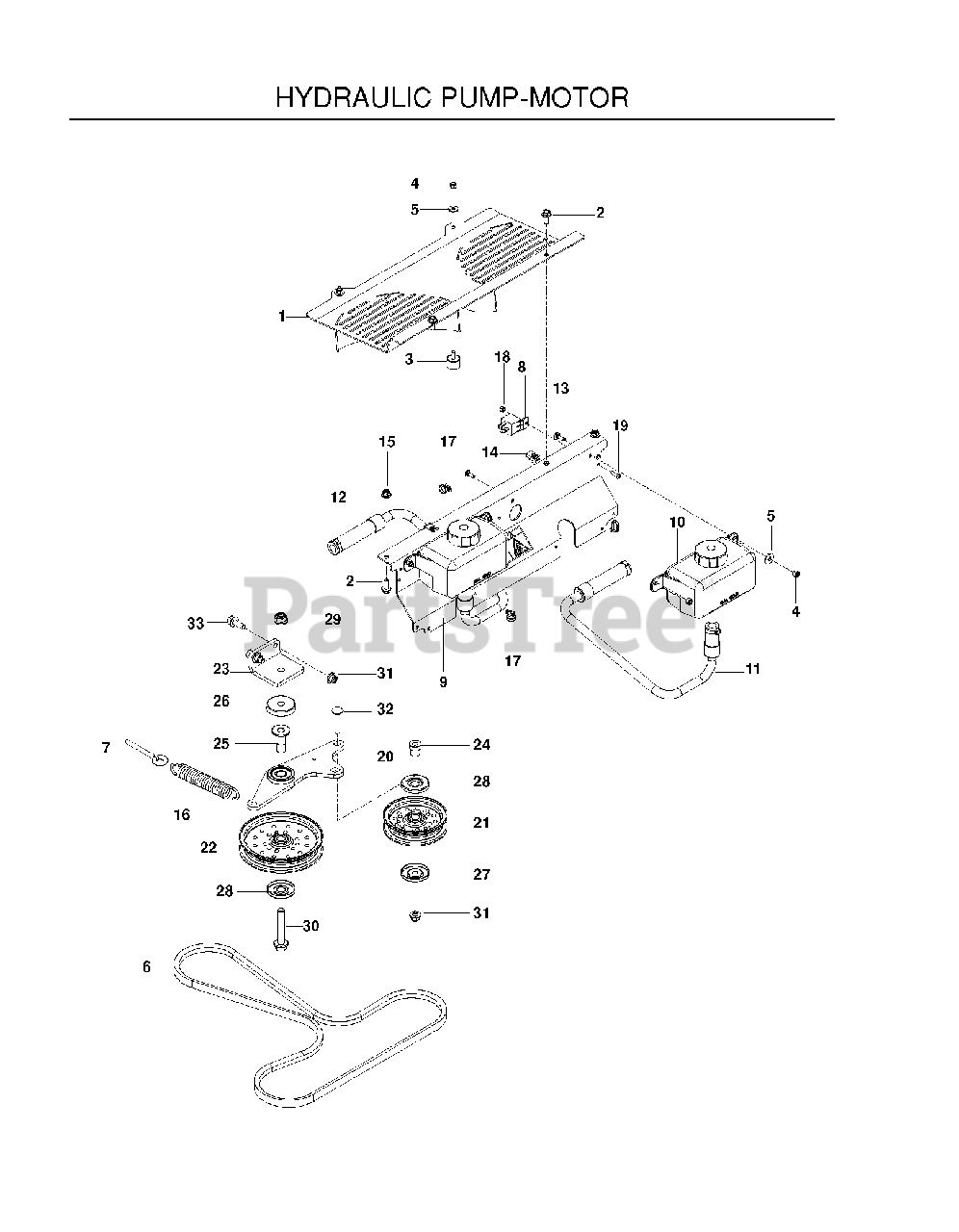

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Husqvarna 575961504

SHIELD, FAN

$

$

Not available

2

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 3 left!

0

3

Husqvarna 522801401

BUMPER, MALE STUD, 1/4-20

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

6

Husqvarna 575586701

BELT, BX, 72.3

$56.99

$

In Stock, Qty 5

0

7

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

8

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 14

0

9

Husqvarna 523017202

MOUNT, EXPANSION TANK, BLK

$70.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574499201

HG_TANK, EXPANSION

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 523017301

HOSE, EXPANSION TANK, RT

$

$

Not available

12

Husqvarna 523017302

HOSE, EXPANSION TANK, LT

$375.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

15

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 575470901

SPRING, EXTENSION

$31.99

$

In Stock, only 1 left!

0

17

Husqvarna 502280001

OPTICAL REV COUNTER (TACHOMETE

$

$

Not available

18

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

19

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 12

0

20

Husqvarna 574891104

ARM, IDLER W/BEARING

$133.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

22

Husqvarna 510283702

IDLER, FLAT, 5.5"

$

$

Not available

23

Husqvarna 574891202

MOUNT, IDLER ARM, BLACK

$

$

Not available

24

Husqvarna 525435601

PIVOT, IDLER

$8.99

$

In Stock, Qty 8

0

25

Husqvarna 574975601

BUSHING, PIVOT

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

27

Husqvarna 510254501

DUST SHIELD

$

$

Not available

28

Husqvarna 510262201

SHIELD, DUST

$

$

Not available

29

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 525828901

HFFS 1/2-13 X 3 GD 5 ZD

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

32

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, Qty 14

0

33

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 575442101

HARNESS, ZT5400

Note: NOT SHOWN

$68.99

$

Usually ships in 3-10 days

0
