PZ 72 (966614701-03) - Husqvarna 72" Zero-Turn Mower (2014-05) WHEELS & TIRES Parts Diagram

72" Zero-Turn Mower

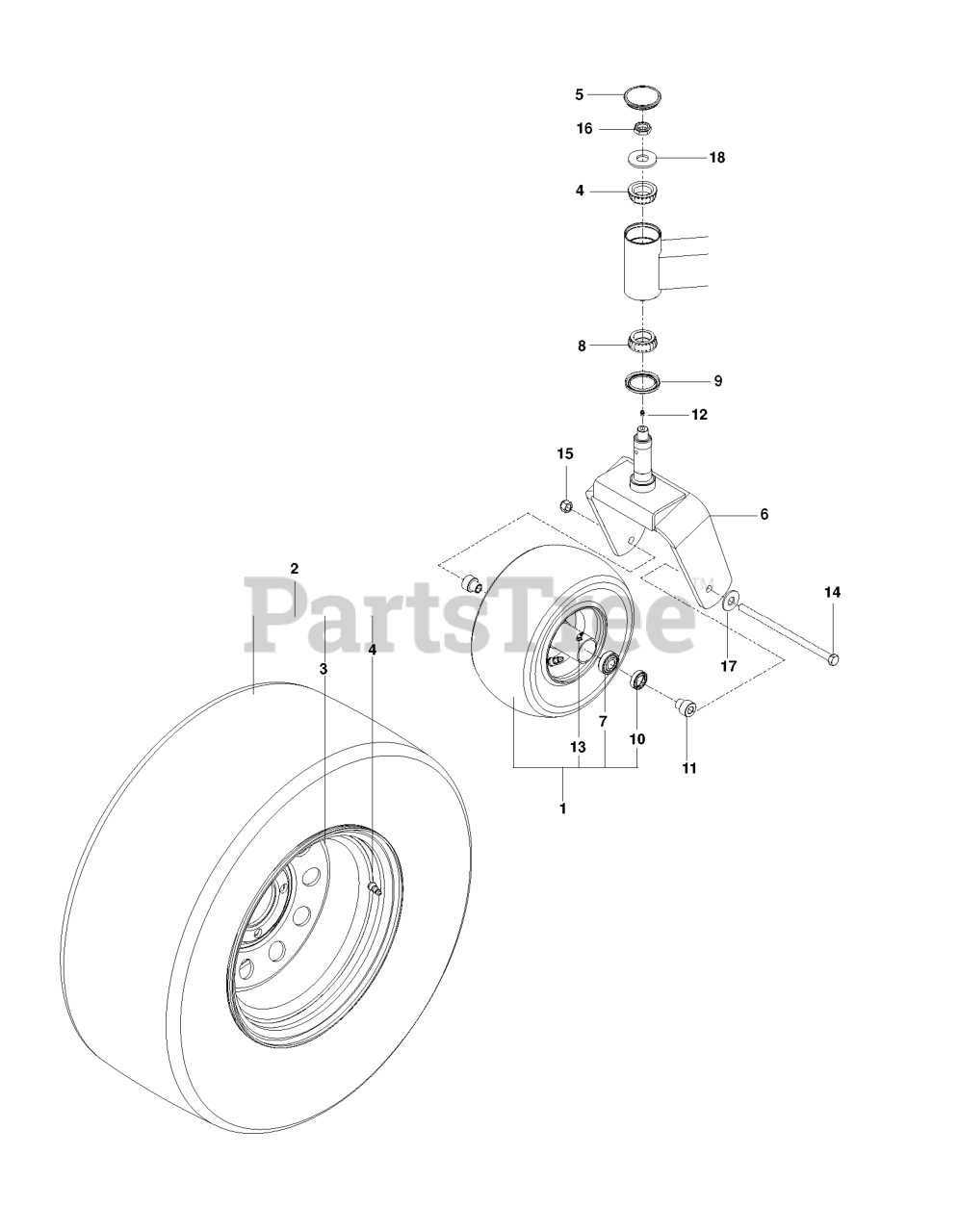

WHEELS & TIRES Parts Diagram

  • Title

4

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 19

0

16

Husqvarna 522842601

NUT, 3/4-16 HEX THIN NYLOC ZD
(Superseded to 522842602)

$4.99

$

In Stock, only 4 left!

0

Husqvarna 539105521

FRONT TIRE ASSY

Note: NOT SHOWN-OPTIONAL

$193.99

$

In Stock, Qty 15

0

10

Husqvarna 539105524

SEAL

$10.99

$

In Stock, Qty 13

0

6

Husqvarna 525611902

FORK.CASTER.ORANGE

$250.99

$

Usually ships in 3-10 days

0

8

Husqvarna 510034401

BEARING W/CUP TAPPER ROLLER

$

$

Not available

17

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539105518

AXLE SPACER

$10.99

$

In Stock, Qty 20+

0

7

Husqvarna 539105525

TAPERED BEARING W/RACE

$17.99

$

In Stock, only 2 left!

0

3

Husqvarna 539105487

12"RIM 2.5" NEG OFFSET 8.5" W

$193.99

$

Usually ships in 3-10 days

0

1

Husqvarna 510154601

TIRE, 13 X 6.5-6 NO FLAT

$284.99

$

In Stock, only 2 left!

0

12

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 574824701

WASHER, 3/4 HARDENED

$

$

Not available

15

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 15

0

14

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5
(Superseded to 594946501)

$6.99

$

In Stock, only 2 left!

0

5

Husqvarna 510034001

CAP, DUST

$

$

Not available

2

Husqvarna 539105486

WHEEL/TIRE.ASM.24X12-12.SILVER

$512.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 510034301

SEAL, BEARING

$5.99

$

In Stock, only 2 left!

0
