PZT 48 (966663802-02) - Husqvarna 48" Zero-Turn Mower, CARB (2016-11) SEAT Parts Diagram

48" Zero-Turn Mower, CARB

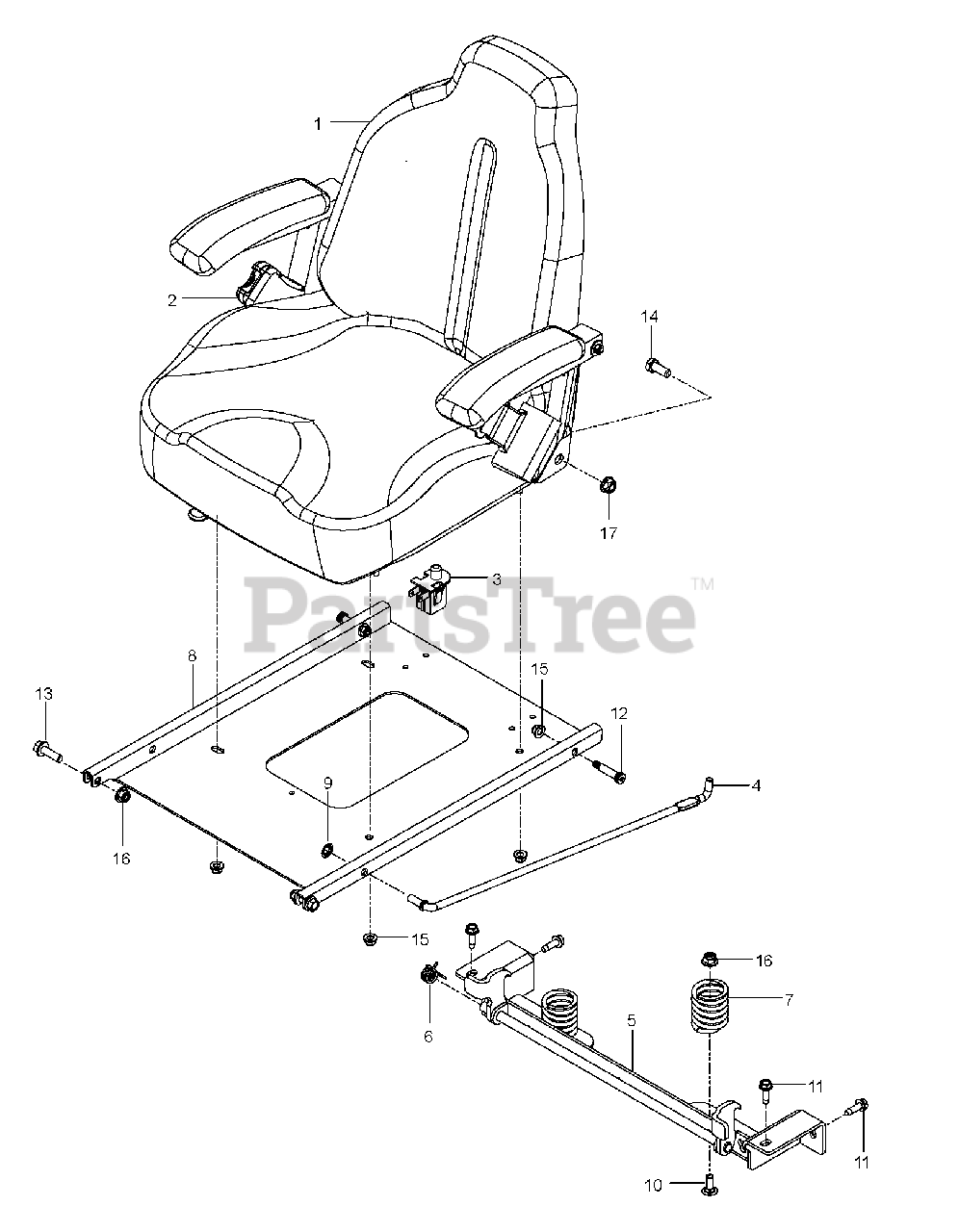

SEAT Parts Diagram

  • Title

1

Husqvarna 501580401

SEAT.ASM.907.TRACK.W/BELT
(Superseded to 501580402)

$968.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576783401

BELT, SEAT

$101.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$17.99

$

In Stock, Qty 12

0

4

Husqvarna 510064101

ROD, SEAT
(Superseded to 510064102)

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585857404

BRACKET.PNT.LTCH.SEAT.WELD.SPR

$

$

Not available

6

Husqvarna 520283101

SPRING, TORSION

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 539110300

SPRING, SEAT
(Superseded to 532124181)

$6.99

$

In Stock, Qty 12

0

8

Husqvarna 510039302

PAN, SEAT, BLACK

$136.99

$

In Stock, only 1 left!

0

9

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 515990601

BOLT, SHOULDER 3/8 X 1.25
(Superseded to 515990602)

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 525834201

HHFS 3/8-16 X 1.25 GD 5
(Superseded to 525834202)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1
(Superseded to 596238601)

$3.49

$

In Stock, only 2 left!

0

15

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

17

Husqvarna 539132019

NUT 7/16-14 HEX WHIZ LK
(Superseded to 873900700)

$4.99

$

In Stock, Qty 5

0
