PZT 48 (966663802) - Husqvarna 48" Zero-Turn Mower, CARB (2012-08) FRAME Parts Diagram

48" Zero-Turn Mower, CARB

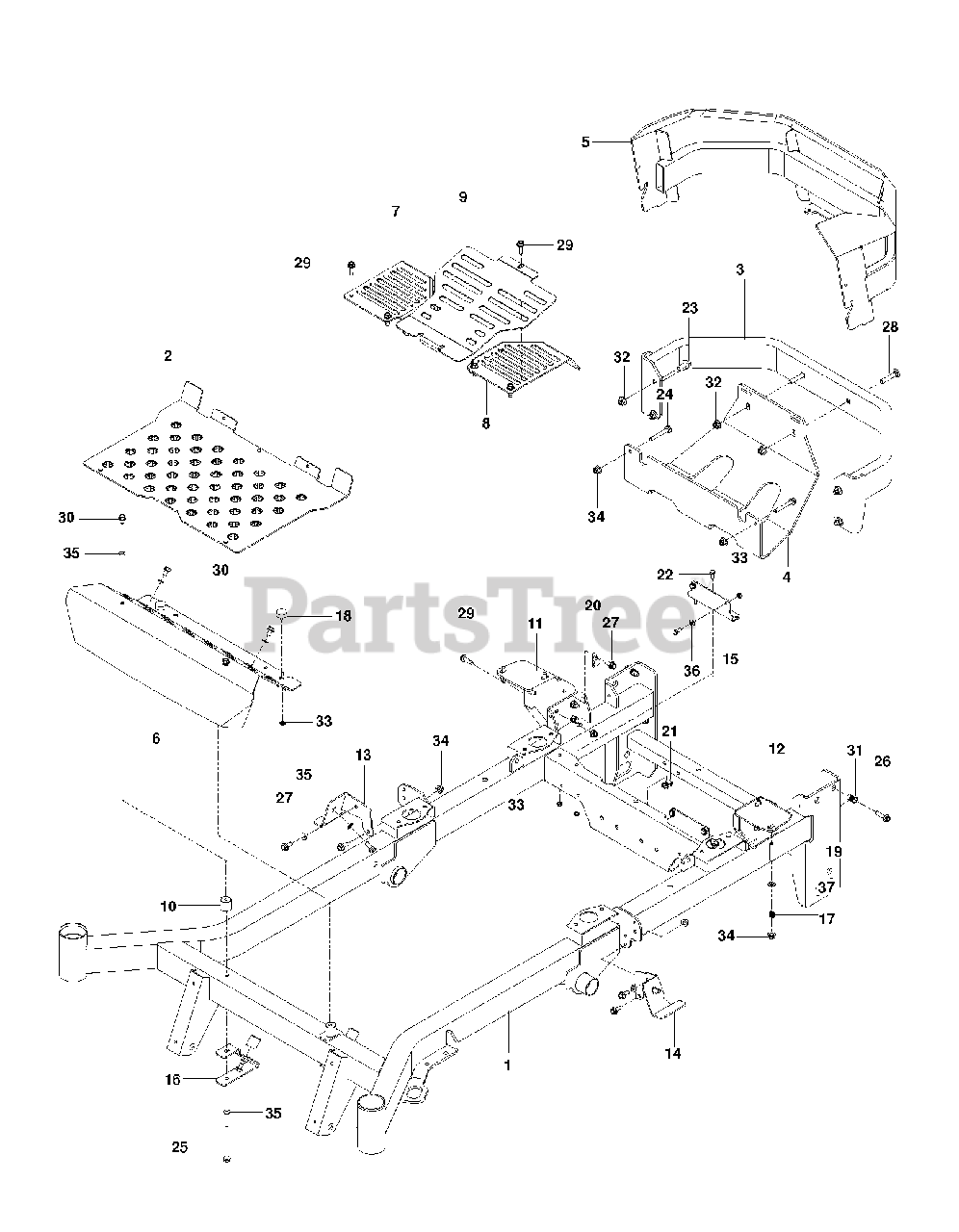

FRAME Parts Diagram

  • Title

1

Husqvarna 574482801

FRAME W/DECALS, PZ

$3641.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576701302

PLATE FLOOR PAN ORANGE

$125.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522738902

BUMPER, REAR, ORG
(Superseded to 522738904)

$206.99

$

Usually ships in 3-10 days

0

4

Husqvarna 576701402

PLATE.SKID.GRAY

$227.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574433002

GUARD.REAR.GRAY.ZTR
(Superseded to 574433003)

$

$

Not available

6

Husqvarna 574215702

PLATE, FOOT REST, OR

$145.99

$

Usually ships in 3-10 days

0

7

Husqvarna 576701502

COVER, FAN RT BLK

$68.99

$

Usually ships in 3-10 days

0

8

Husqvarna 576701602

COVER, FAN LT BLK

$68.99

$

Usually ships in 3-10 days

0

9

Husqvarna 576701702

COVER, CENTER BLK

$96.99

$

Usually ships in 3-10 days

0

10

Husqvarna 510083201

MOUNT, F/F INSERT

$7.49

$

In Stock, Qty 18

0

11

Husqvarna 529279603

MOUNT, RT TANK, BLK

$72.99

$

Usually ships in 3-10 days

0

12

Husqvarna 529279703

MOUNT, LT TANK, BLK

$72.99

$

Usually ships in 3-10 days

0

13

Husqvarna 529279903

MOUNT, TANK, RT-BLK

$68.99

$

Usually ships in 3-10 days

0

14

Husqvarna 529280003

MOUNT, TANK, LT-BLK

$60.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576453602

MOUNT TANK BLK

$

$

Not available

16

Husqvarna 510040301

BRACKET, REST MOUNT

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 575811501

BUMPER, 1/4-20 STUD, 1/4

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

20

Husqvarna 539109867

DOUBLE TUBE CLAMP

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

22

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

23

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

24

Husqvarna 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

28

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, Qty 6

0

29

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539111028

NUTSERT 5/16-18 THICK GRIP

$

$

Not available

32

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

33

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

35

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

36

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

37

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0
