PZT 54 (966613402) - Husqvarna Zero-Turn Mower (2012-08) MOWER LIFT / DECK LIFT Parts Diagram

Zero-Turn Mower

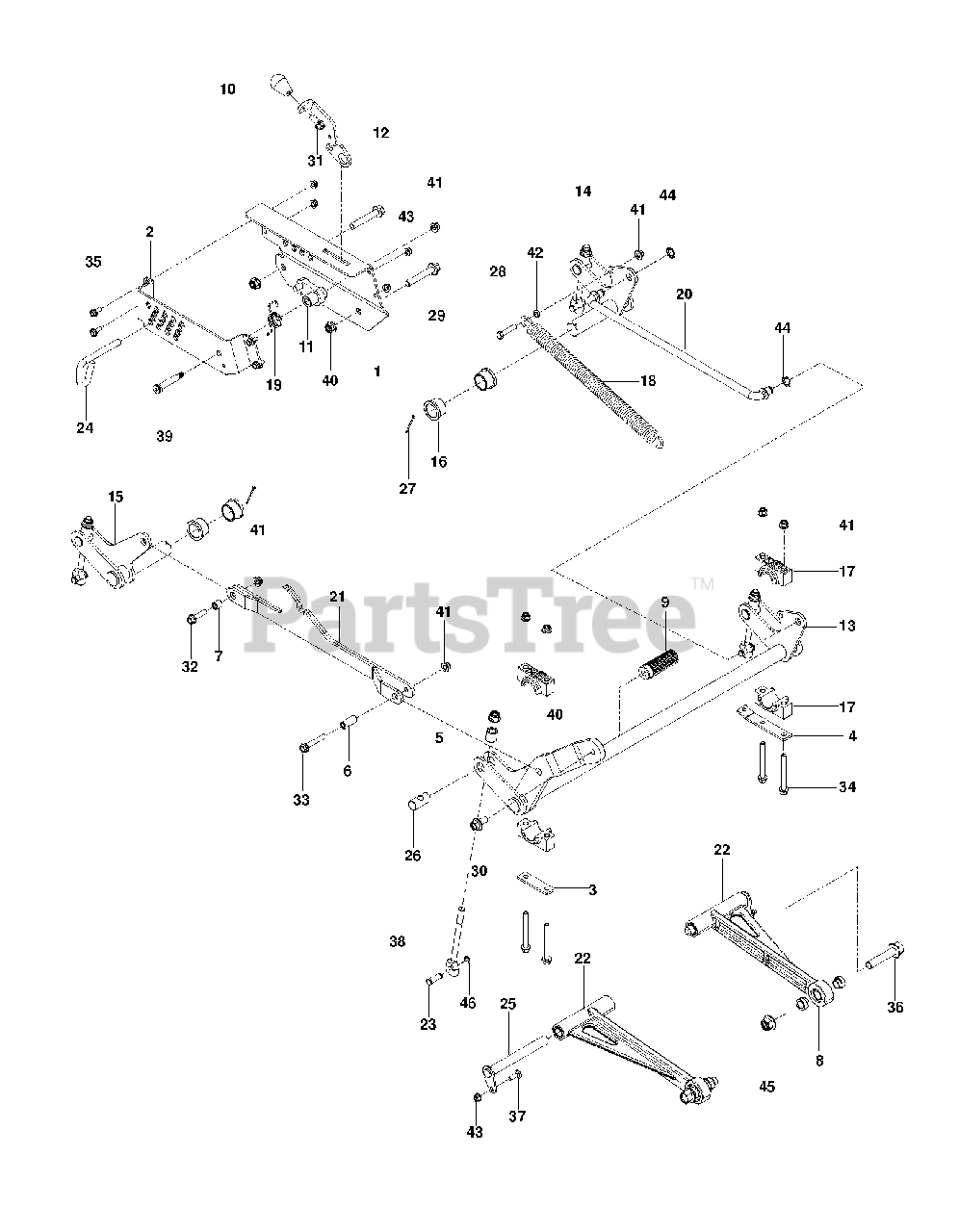

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

Husqvarna 576480002

PLATE, HEIGHT INNER ORG

$

$

Not available

2

Husqvarna 576480102

PLATE, HEIGHT OUTER ORG

$193.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525822201

PLATE, PILLOW BLACK
(Superseded to 593634102)

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 576646701

PLATE, SPRING ANCHOR

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576485801

SPACER, EYEBOLT
(Superseded to 576485802)

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 576623101

SPACER, FRONT LIFT STRAP
(Superseded to 576623102)

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 576623001

SPACER, REAR LIFT STRAP
(Superseded to 576623002)

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 510362501

SPACER, STRUT

$

$

Not available

9

Husqvarna 510408301

PEDAL, DECK HEIGHT
(Superseded to 510408302)

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, only 4 left!

0

11

Husqvarna 510406801

LATCH, TRANSPORT WLDMT
(Superseded to 510406802)

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 576638901

LEVER, TRANSPORT RELEASE

$26.99

$

Usually ships in 3-10 days

0

13

Husqvarna 576479201

SHAFT DECK LIFT FT
(Superseded to 583623801)

$341.99

$

Usually ships in 3-10 days

0

14

Husqvarna 576479901

SHAFT, LIFT LEFT REAR

$262.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576479401

SHAFT, LIFT RIGHT REAR

$113.99

$

Usually ships in 3-10 days

0

16

Husqvarna 510089401

BUSHING, FLANGE 1.25 X 1.0

$22.99

$

Usually ships in 3-10 days

0

17

Husqvarna 510023902

BLOCK, PILLOW

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 576676601

SPRING, EXTENSION

$26.99

$

Usually ships in 3-10 days

0

19

Husqvarna 510376601

SPRING, TORSION

$3.49

$

In Stock, only 2 left!

0

20

Husqvarna 510089801

ROD, LIFT
(Superseded to 510089802)

$170.99

$

Usually ships in 3-10 days

0

21

Husqvarna 576622601

WELDMT, DECK STRAP
(Superseded to 576622602)

$433.99

$

Usually ships in 3-10 days

0

22

Husqvarna 510106501

ASSEMBLY, STRUT

$125.99

$

In Stock, only 2 left!

0

23

Husqvarna 510090101

PIN, 7/16 CLEVIS
(Superseded to 596919401)

$5.99

$

In Stock, only 1 left!

0

24

Husqvarna 510016501

PIN, HEIGHT

$

$

Not available

25

Husqvarna 515988201

PIN, STRUT
(Superseded to 515988202)

$56.99

$

In Stock, only 2 left!

0

26

Husqvarna 576485601

PIN, TRUNION, EYEBOLT
(Superseded to 576485602)

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

28

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5
(Superseded to 596583901)

$3.49

$

In Stock, Qty 11

0

29

Husqvarna 525828901

HFFS 1/2-13 X 3 GD 5 ZD
(Superseded to 596789601)

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD
(Superseded to 574210602)

$3.49

$

In Stock, Qty 5

0

31

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD
(Superseded to 525612802)

$3.49

$

In Stock, Qty 5

0

32

Husqvarna 576621601

HHFS 3/8-16 X 1.50 GR5 ZD
(Superseded to 576621602)

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 574496901

HHFS 3/8-16 X 2-1/4 GR 5 ZD
(Superseded to 577098301)

$6.99

$

In Stock, only 2 left!

0

34

Husqvarna 525822101

HHFS 3/8-16 X 3.5 GD 5 ZD

$5.99

$

In Stock, only 2 left!

0

35

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.49

$

In Stock, only 1 left!

0

36

Husqvarna 525829001

HHFS 5/8-11 X 3.0 GD 8 ZD

$43.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990208

RHSNB 5/16C X 1

$

$

Not available

38

Husqvarna 576479001

EYEBOLT, DECK LIFT

$

$

Not available

39

Husqvarna 516035501

BOLT, SHOULDER, 1/2 X 2.25

$

$

Not available

40

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 12

0

41

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

42

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.49

$

In Stock, Qty 7

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

44

Husqvarna 539109304

NUT 5/8 PUSH
(Superseded to 532429164)

$4.99

$

In Stock, Qty 6

0

45

Husqvarna 525829101

NUT 5/8-11 FLG NYLOC ZD

$

$

Not available

46

Husqvarna 522705201

RING, E, 7/16

$3.49

$

Usually ships in 3-10 days

0
