PZT 54 (966613404-00) - Husqvarna Zero-Turn Mower (2015-06) ENGINE PLATE Parts Diagram

Zero-Turn Mower

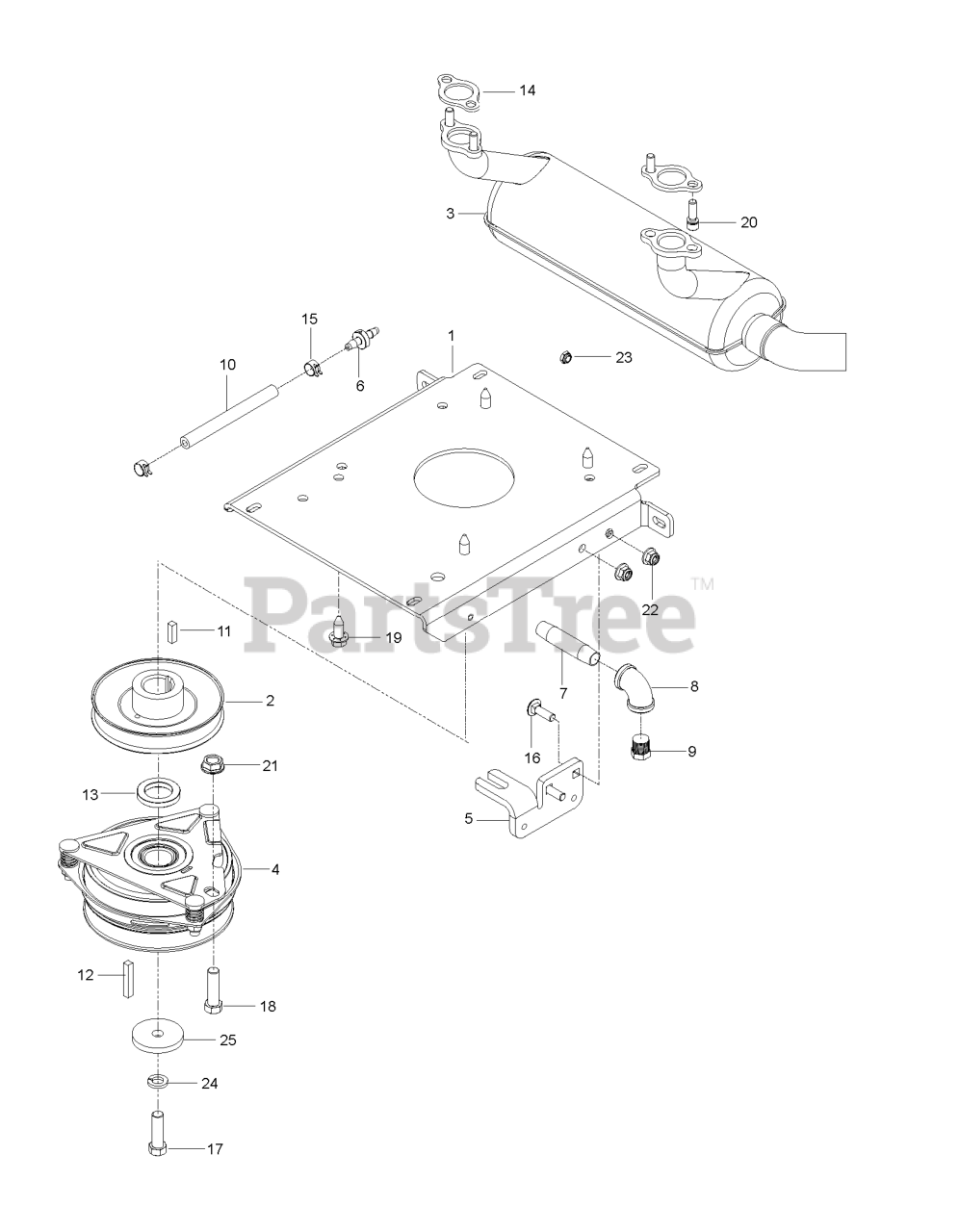

ENGINE PLATE Parts Diagram

  • Title

22

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

4

Husqvarna 539113437

CLUTCH, 150 FT/LBS

$569.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.49

$

In Stock, only 4 left!

0

5

Husqvarna 522676702

STOP, CLUTCH, OGURA
(Superseded to 597180803)

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539125626

BLADE WASHER

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510019801

PULLEY, ENGINE

$68.99

$

In Stock, Qty 7

0

3

Husqvarna 576701801

MUFFLER, B&S CYCLONIC

$227.99

$

In Stock, only 1 left!

0

Husqvarna 587760801

HARNESS.PIGTAIL.ENG.VANGUARD

Note: ADAPTER NOT SHOWN

$

$

Not available

15

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 11

0

19

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

1

Husqvarna 510004602

PLATE.ENGINE.BLACK

$125.99

$

Usually ships in 3-10 days

0

13

Husqvarna 525313901

SPACER, .25 X 1.135 I.D.
(Superseded to 525313902)

$20.99

$

Usually ships in 3-10 days

0

9

Husqvarna 522837001

PLUG, DRAIN 3/8 NPTF

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 574206701

VALVE, CHECK, .25

$17.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

21

Husqvarna 539102582

NUT 7/16C WHIZ
(Superseded to 596577901)

$3.49

$

In Stock, only 3 left!

0

8

Husqvarna 539105072

90 DEG.ELBOW 3/8NPT

$11.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 581332801

CLUTCH BOLT7/16-20X1.5GR5.96HR
(Superseded to 581332805)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539910210

KEY 1/4 SQ X 2

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990208

RHSNB 5/16C X 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539104867

HCS 7/16-14 X 1-1/4 GR 5 ZD
(Superseded to 596436601)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539105308

KEY 1/4 SQ X 1.0

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 539118911

PIPE NIPPLE 3/8 X 3

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 586839601

GASKET.MUFFLER.B&S.REF #273485
(Superseded to 532165391)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.49

$

In Stock, Qty 13

0
