PZT 60 (966613503-00) - Husqvarna Zero-Turn Mower (2015-06) ENGINE PLATE Parts Diagram

Zero-Turn Mower

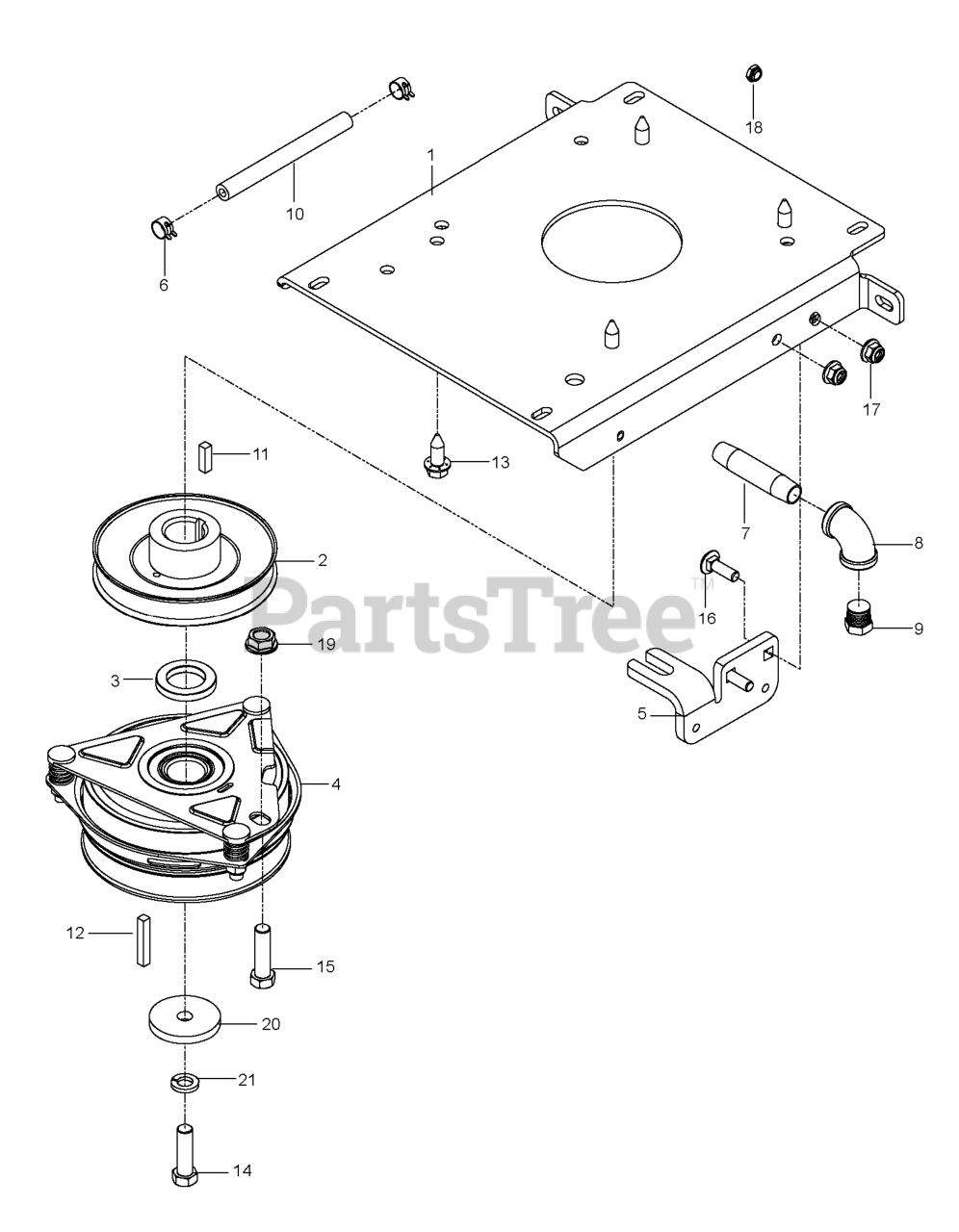

ENGINE PLATE Parts Diagram

  • Title

Husqvarna 587450001

HARNESS.ADAPTER.ENG.EFI.BS

$17.99

$

Usually ships in 3-10 days

0

10

Husqvarna 587044810

HOSE.1/4".LOW.PERM.FUEL.LN.10"

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 581332801

CLUTCH BOLT7/16-20X1.5GR5.96HR
(Superseded to 581332805)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

21

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, Qty 15

0

1

Husqvarna 510004602

PLATE.ENGINE.BLACK

$125.99

$

Usually ships in 3-10 days

0

9

Husqvarna 522837001

PLUG, DRAIN 3/8 NPTF

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

18

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 510019801

PULLEY, ENGINE

$68.99

$

In Stock, only 1 left!

0

3

Husqvarna 525313901

SPACER, .25 X 1.135 I.D.
(Superseded to 525313902)

$20.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539105308

KEY 1/4 SQ X 1.0

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 539910210

KEY 1/4 SQ X 2

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874780720

BOLT, HEX

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539113437

CLUTCH, 150 FT/LBS

$569.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522676702

STOP, CLUTCH, OGURA
(Superseded to 597180803)

$13.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 539118911

PIPE NIPPLE 3/8 X 3

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990208

RHSNB 5/16C X 1

$

$

Not available

8

Husqvarna 539105072

90 DEG.ELBOW 3/8NPT

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 5

0

20

Husqvarna 539125626

BLADE WASHER

$7.99

$

Usually ships in 3-10 days

0
