Q 165H46 A - Quality Lawn Tractor (2000)

Lawn Tractor

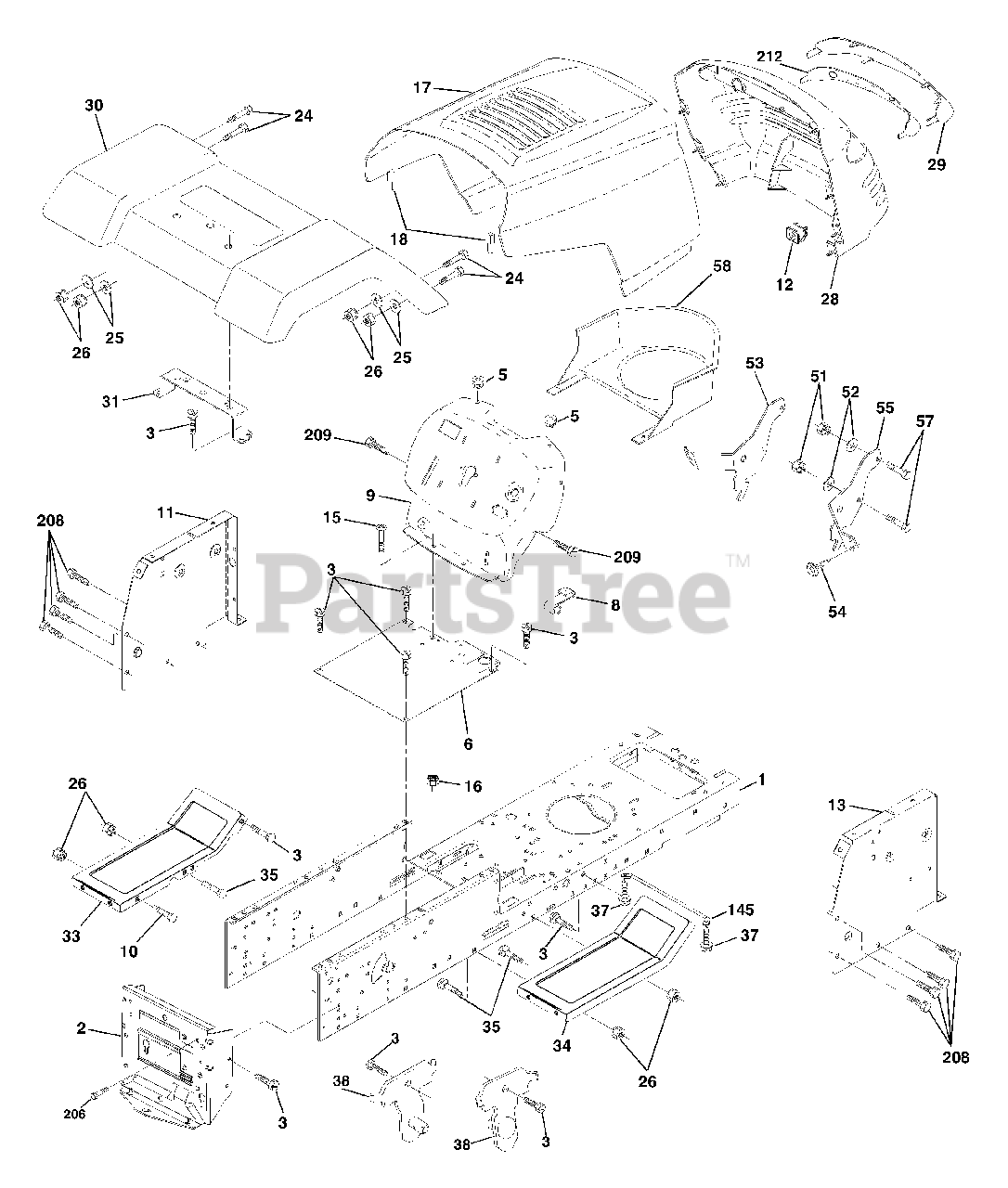

Q 165H46 A - Quality Lawn Tractor (2000) > Parts Diagrams (11) > Chassis And Enclosures

  • Title
169831

1

Chassis Wldmt.

Part# 169831

OEM Warranty Repair Part for Electrolux/AYP

Not available

169061

2

Drawbar Stretch 94

Part# 169061 (Superseded to 532169061)

OEM Warranty Repair Part for Electrolux/AYP

Not available

17060612

3

Screw Thdrol. 3/8-16 x 3/4

Part# 17060612 (Superseded to 817060612)

OEM Warranty Repair Part for Electrolux/AYP

Not available

155272

5

Bumper Hood/Dash

Part# 155272 (Superseded to 532155272)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

155923

6

Saddle Flat Lt

Part# 155923 (Superseded to 532155923)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $11.17

155138

8

Clip Retainer Slide-On

Part# 155138 (Superseded to 532155138)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34

168347X011

9

Dash Private Label

Part# 168347X011

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140608

10

Bolt Rd Hd Sqnk. 3/8-16 Unc x 1

Part# 72140608

OEM Warranty Repair Part for Murray

Not available

155927

11

Panel Asm. Dash Lh

Part# 155927 (Superseded to 532155927)

OEM Warranty Repair Part for Electrolux/AYP

Not available

145660

12

Clip Tinnerman Grile P/L

Part# 145660 (Superseded to 532145660)

OEM Warranty Repair Part for Electrolux/AYP

Not available

172107X101

13

Panel Dash Rh

Part# 172107X101

OEM Warranty Repair Part for Electrolux/AYP

Not available

74180512

15

Screw Mach Trhd 5/16-18 Unc x 3/4

Part# 74180512 (Superseded to 874180512)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73510500

16

Nut Keps 5/16-18 Unc

Part# 73510500

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.25

159639X602

17

Hood Pnt STL P/L w/trim

Part# 159639X602

OEM Warranty Repair Part for Electrolux/AYP

Not available

126938X

18

Bumper Hood

Part# 126938X (Superseded to 532126938)

OEM Warranty Repair Part for Electrolux/AYP

Not available

74780616

24

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

Part# 74780616 (Superseded to 874780616)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

19131312

25

Washer 13/32 x 13/16 x 12 Ga.

Part# 19131312

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

73800600

26

Nut Lock Hex w/Insert 3/8-16 UNC

Part# 73800600

OEM Warranty Repair Part for Electrolux/AYP

Not available

157373

28

Grill Private Lable Blk

Part# 157373 (Superseded to 532157373)

OEM Warranty Repair Part for Electrolux/AYP

Not available

140273X599

29

Lens Grille Private label

Part# 140273X599 (Superseded to 532140273)

OEM Warranty Repair Part for Electrolux/AYP

Not available

169467X602

30

Fender Asm LT

Part# 169467X602

OEM Warranty Repair Part for Electrolux/AYP

Not available

136619

31

Bracket Fender

Part# 136619 (Superseded to 532136619)

OEM Warranty Repair Part for Electrolux/AYP

Not available

145244X602

33

Footrest Pnt. Lh

Part# 145244X602

OEM Warranty Repair Part for Electrolux/AYP

Not available

145243X602

34

Footrest Pnt. Rh

Part# 145243X602

OEM Warranty Repair Part for Electrolux/AYP

Not available

72110606

35

Bolt Rd Hd Sht. Sqnk. 3/8-16 x 3/4

Part# 72110606 (Superseded to 872110606)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34

17490508

37

Screw Thdrol 5/16-18 x 1/2 Tyt

Part# 17490508 (Superseded to 817490508)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

169834

38

Bracket Asm Pivot Mower Rear

Part# 169834 (Superseded to 532169834)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73800400

51

Nut Lock Hex W/Ins. 1/4-20

Part# 73800400 (Superseded to 873800400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

19091416

52

Washer 9/32 x 7/8 x 16 Ga.

Part# 19091416 (Superseded to 819091416)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

144697

53

Bracket Grille LH

Part# 144697 (Superseded to 532144697)

OEM Warranty Repair Part for Electrolux/AYP

Not available

161464

54

Screw Hex Wshd 8-18 x 7/8

Part# 161464 (Superseded to 532161464)

OEM Warranty Repair Part for Electrolux/AYP

Not available

144696

55

Bracket, Grille RH

Part# 144696 (Superseded to 532144696)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

74780412

57

Bolt Fin Hex 1/4-20 x .75

Part# 74780412 (Superseded to 874780412)

OEM Warranty Repair Part for Electrolux/AYP

Not available

150127

58

Air Duct Private Label

Part# 150127 (Superseded to 532150127)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $15.64

156524

145

Rod Pivot Chassis/Hood

Part# 156524 (Superseded to 532156524)

OEM Warranty Repair Part for Electrolux/AYP

Not available

170165

206

Bolt Shoulder 5/16-18

Part# 170165 (Superseded to 532170165)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

17670608

208

Screw Thdrol 3/16 x 1/2

Part# 17670608 (Superseded to 817670608)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.34

17000612

209

Screw Hexwsh Thdr 3/8-16

Part# 17000612 (Superseded to 817000612)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

212

UNKNOWN

Part#

Not available

5479J

Plug Btn Blk

Part# 5479J (Superseded to 532005479)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34
