Q 165H46 A - Quality Lawn Tractor (2000)

Lawn Tractor

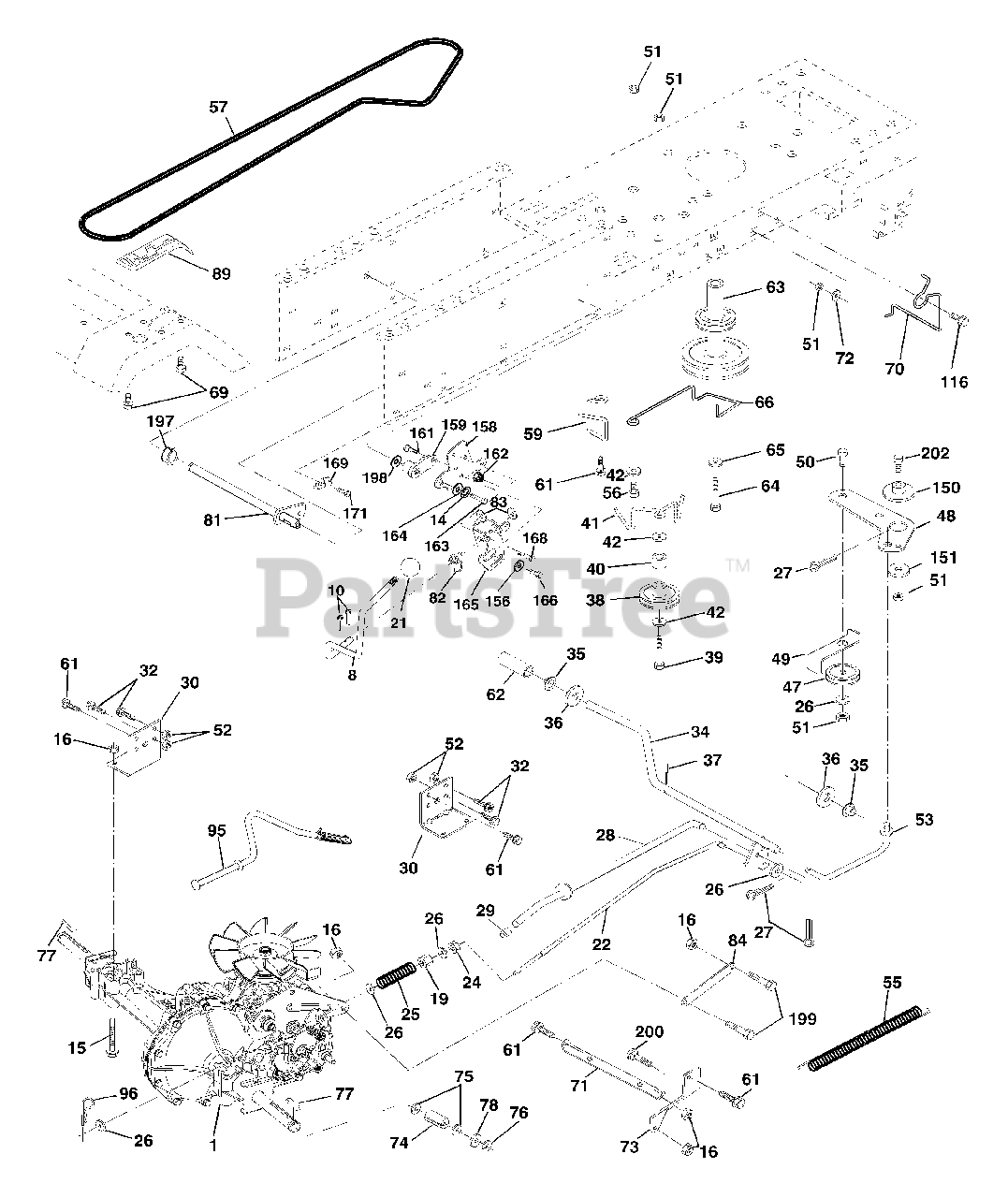

Q 165H46 A - Quality Lawn Tractor (2000) > Parts Diagrams (11) > Drive

  • Title

1

Transaxle Hydro Gear Model 314-0510

Part#

Note: (Order parts from transaxle manufacturer)

Not available

165619

8

Rod Shift Fender Adjust LT

Part# 165619

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $19.42

76020416

10

Pin Cotter 1/8 x 1 CAD

Part# 76020416 (Superseded to 876020416)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

10040400

14

Washer Lock Hvy Helical

Part# 10040400 (Superseded to 810040400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

74490544

15

Bolt, Hex FLGHD 5/16-18 Gr. 5

Part# 74490544 (Superseded to 874490544)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

73800500

16

Nut Lock Hex W/Ins 5/16-18 Unc P

Part# 73800500 (Superseded to 873800500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01

73800600

19

Nut Lock Hex W/Wsh 3/8-16 Unc

Part# 73800600

OEM Warranty Repair Part for Electrolux/AYP

Not available

106933X

21

Knob, Round 1/2-13

Part# 106933X (Superseded to 532106933)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

169498

22

Rod, Brake Hydro

Part# 169498 (Superseded to 532169498)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73350600

24

Nut

Part# 73350600

OEM Warranty Repair Part for Electrolux/AYP

Not available

106888X

25

Spring, Brake Rod

Part# 106888X (Superseded to 532106888)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

19131316

26

Washer

Part# 19131316 (Superseded to 819131316)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

76020412

27

Pin Cotter 1/8 x 3/4 CAD.

Part# 76020412 (Superseded to 876020412)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

145204

28

Rod, Parking Brake

Part# 145204 (Superseded to 532145204)

OEM Warranty Repair Part for Electrolux/AYP

Not available

71673

29

Cap, Parking Brake

Part# 71673 (Superseded to 532071673)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

169592

30

Bracket, Transaxle

Part# 169592 (Superseded to 532169592)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

74760512

32

Bolt Hex Hd 5/16-18 Unc x 3/4

Part# 74760512

OEM Warranty Repair Part for Electrolux/AYP

Not available

155071

34

Shaft, Foot Pedal

Part# 155071 (Superseded to 532155071)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $20.11

120183X

35

Bearing, Nylon

Part# 120183X (Superseded to 532120183)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

19211616

36

Washer

Part# 19211616 (Superseded to 819211616)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

1572H

37

Pin, Roll

Part# 1572H

OEM Warranty Repair Part for Murray

Not available

131494

38

Pulley, Idler, Flat

Part# 131494 (Superseded to 532104360)

OEM Warranty Repair Part for Electrolux/AYP

Not available

72110622

39

Bolt

Part# 72110622 (Superseded to 872110622)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

4470J

40

Spacer, Split

Part# 4470J

OEM Warranty Repair Part for Electrolux/AYP

Not available

165838

41

Keeper, Belt Idler

Part# 165838 (Superseded to 532165838)

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131312

42

Washer 13/32 x 13/16 x 12 Gauge

Part# 19131312

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

127783

47

Pulley, Idler, V-Groove

Part# 127783

OEM Warranty Repair Part for Murray

Not available

154407

48

Bellcrank Clutch Grd Drv Stl

Part# 154407 (Superseded to 532154407)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.58

123205X

49

Retainer, Belt

Part# 123205X (Superseded to 532123205)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

74760624

50

Bolt

Part# 74760624 (Superseded to 874760624)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

73680600

51

Nut Crownlock 3/8-16 UNC

Part# 73680600 (Superseded to 873680600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

73680500

52

Nut Crownlock 5/16-18 UNC

Part# 73680500

OEM Warranty Repair Part for Murray

Not available

105710X

53

Link, Clutch

Part# 105710X (Superseded to 532105710)

OEM Warranty Repair Part for Electrolux/AYP

Not available

105709X

55

Spring, Return, Clutch

Part# 105709X (Superseded to 532105709)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.93

74760620

56

Bolt Fin Hex 3/8-16 UNC x 1-1/4

Part# 74760620 (Superseded to 874760620)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

140294

57

V-Belt, Ground Drive

Part# 140294 (Superseded to 532140294)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $33.67

169691

59

Keeper, Center Span

Part# 169691 (Superseded to 532169691)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $16.76

17060612

61

Screw 3/8-16 x 3/4

Part# 17060612 (Superseded to 817060612)

OEM Warranty Repair Part for Electrolux/AYP

Not available

8883R

62

Cover, Pedal

Part# 8883R (Superseded to 532008883)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.90

140186

63

Pulley, Engine

Part# 140186 (Superseded to 532140186)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $62.60

71170764

64

Bolt, Hex

Part# 71170764 (Superseded to 871170764)

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040700

65

Washer

Part# 10040700 (Superseded to 810040700)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

154778

66

Keeper Belt Engine Hydro

Part# 154778 (Superseded to 532154778)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $10.05

142432

69

Screw

Part# 142432 (Superseded to 532142432)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

162848

70

Keeper Belt Engine

Part# 162848

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $8.55

169183

71

Strap Torque Lh Hydro

Part# 169183 (Superseded to 532169183)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $5.58

19132012

72

Washer 13/32 x 1-1/4 x 12 Gauge

Part# 19132012

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

169182

73

Strap Torque Rh Hydro

Part# 169182 (Superseded to 532169182)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $8.93

169496

74

Spacer, Axle

Part# 169496

OEM Warranty Repair Part for Electrolux/AYP

Not available

121749X

75

Washer 25/32 x 1-1/4 x 16 Gauge

Part# 121749X (Superseded to 532121749)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

12000001

76

E-Ring

Part# 12000001

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

123583X

77

Key, Square

Part# 123583X (Superseded to 532123583)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01

121748X

78

Washer 25/32 x 1-5/8 x 16 Gauge

Part# 121748X (Superseded to 532121748)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

165596

81

Shaft Asm Cross Tapered

Part# 165596 (Superseded to 532165596)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $29.06

123782X

82

Spring Torsion T/A

Part# 123782X (Superseded to 532123782)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

19171216

83

Washer 17/32 x 3/4 x 16 Ga.

Part# 19171216 (Superseded to 819171216)

OEM Warranty Repair Part for Electrolux/AYP

Not available

169594

84

Link, Transaxle Hydro 0500

Part# 169594 (Superseded to 532169594)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $5.58

164893X428

89

Console, Hydro

Part# 164893X428

OEM Warranty Repair Part for Electrolux/AYP

Not available

170201

95

Control Asm Bypass Hydro

Part# 170201

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $8.93

4497H

96

Retainer Spring 1" Zinc/Cad

Part# 4497H

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $6.70

72110610

116

Bolt Rdhd Sq Neck 3/8-16 x 1.25

Part# 72110610

OEM Warranty Repair Part for Electrolux/AYP

Not available

165850

150

Bushing Bellcrank Grd Drive

Part# 165850 (Superseded to 532165850)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

19133210

151

Washer 13/32 x 2 x 10 Ga.

Part# 19133210

OEM Warranty Repair Part for Electrolux/AYP

Not available

166002

156

Washer Srrted 5/16 ID x 1.125

Part# 166002 (Superseded to 532166002)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

165589

158

Bracket Shift Mount

Part# 165589

OEM Warranty Repair Part for Electrolux/AYP

Not available

165494

159

Hub Tapered Flange Shift LT

Part# 165494 (Superseded to 532165494)

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140406

161

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

Part# 72140406 (Superseded to 872140406)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73680400

162

Nut Crownlock 1/4-20 Unc

Part# 73680400 (Superseded to 873680400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

74780416

163

Bolt Hex Fin 1/4-20 Unc x 1 Gr. 5

Part# 74780416 (Superseded to 874780416)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

19091010

164

Washer 5/8 x .281 x 10 Ga.

Part# 19091010 (Superseded to 819091010)

OEM Warranty Repair Part for Electrolux/AYP

Not available

165623

165

Bracket Pivot Lever

Part# 165623

OEM Warranty Repair Part for Electrolux/AYP

Not available

166880

166

Screw 5/16-18 x 5/8

Part# 166880 (Superseded to 532166880)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

165492

168

Bolt Shoulder 5/16-18 x .561

Part# 165492 (Superseded to 532165492)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

165581

169

Plate Fastening LT

Part# 165581 (Superseded to 532165581)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

17490608

171

Screw Thdrol 3/8-16 x 1/2 TY-TT

Part# 17490608 (Superseded to 817490608)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

169613

197

Nyliner Snap-In 5/8" Id

Part# 169613 (Superseded to 532169613)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

169593

198

Washer Nyl 7/8 Id x .105

Part# 169593 (Superseded to 532169593)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $5.58

169612

199

Bolt Shoulder 5/16-18 Unc

Part# 169612 (Superseded to 532169612)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

72140508

200

Bolt Rdhd Sqnk 5/16-18 Unc x 1

Part# 72140508 (Superseded to 872140508)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

72110612

202

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5

Part# 72110612 (Superseded to 872110612)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46
