Q 165H46 A - Quality Lawn Tractor (2000)

Lawn Tractor

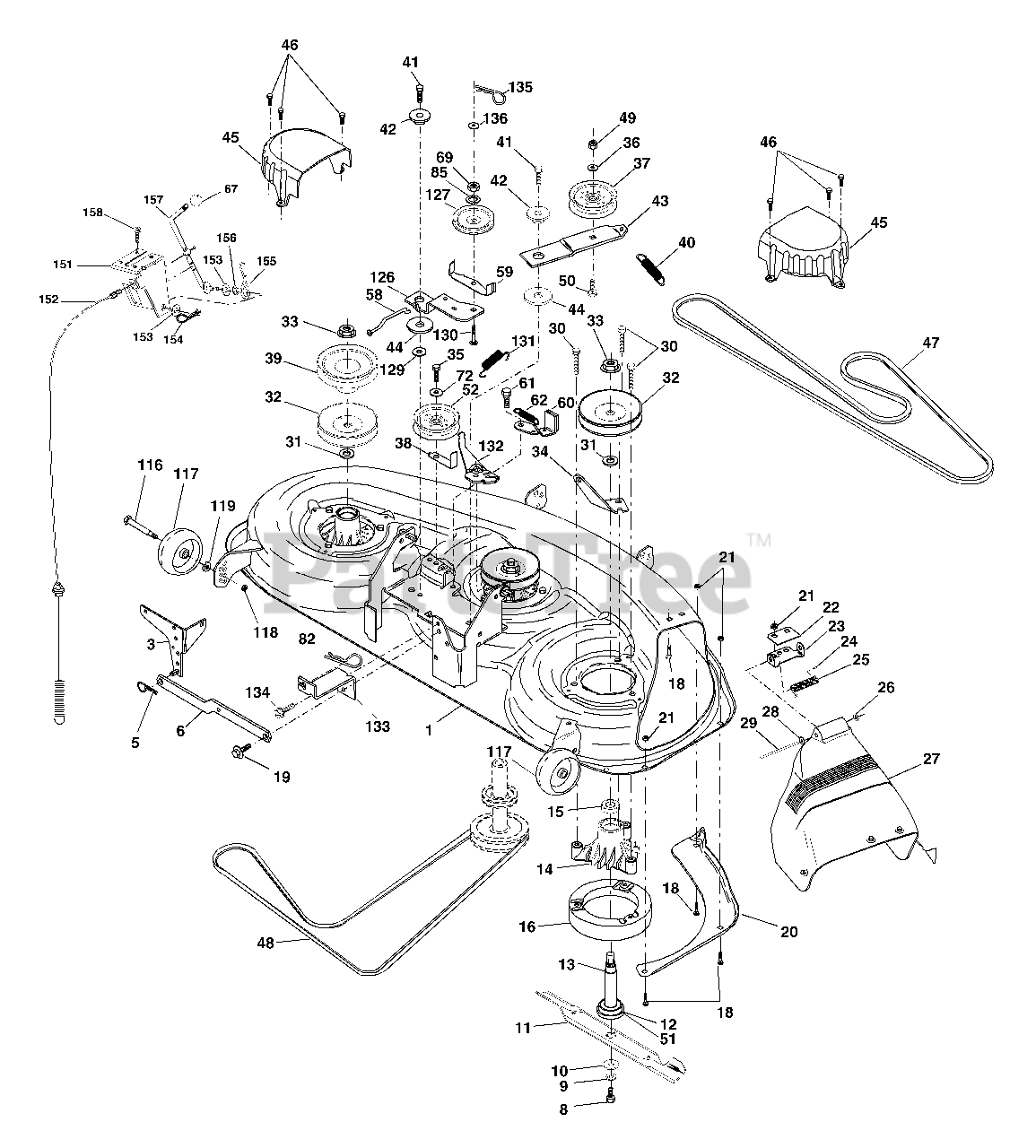

Q 165H46 A - Quality Lawn Tractor (2000) > Parts Diagrams (11) > Mower Deck

  • Title
164210

1

Deck Asm., Mower 46"

Part# 164210

OEM Warranty Repair Part for Electrolux/AYP

Not available

138457

3

Bracket Asm., Sway Bar

Part# 138457 (Superseded to 532138457)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $10.05

4939M

5

Retainer Spring

Part# 4939M

OEM Warranty Repair Part for Murray

Not available

130832

6

Arm, Suspension, Rear (Sway Bar)

Part# 130832 (Superseded to 532130832)

OEM Warranty Repair Part for Electrolux/AYP

Not available

850857

8

Bolt, Patched 3/8-24 x 1-1/4 Gr. 8

Part# 850857 (Superseded to 532850857)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

10030600

9

Washer, Lock Hvy., Unplated 3/8

Part# 10030600 (Superseded to 810030600)

OEM Warranty Repair Part for Electrolux/AYP

Not available

140296

10

Washer, Hard Blade, Mower Vented

Part# 140296 (Superseded to 532140296)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

170698

11

Blade, 46" Mower Deck

Part# 170698

OEM Warranty Repair Part for Electrolux/AYP

Not available

129895

12

Bearing, Ball, Mandrel #6204

Part# 129895 (Superseded to 532129895)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $7.82

137553

13

Shaft Asm. w/Lower Bearing

Part# 137553 (Superseded to 532137553)

Note: (Includes Key No. 12)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $39.67

137152

14

Housing, Mandrel

Part# 137152 (Superseded to 532137152)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $26.82

110485X

15

Bearing, Ball, Mandrel

Part# 110485X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $8.93

140329

16

Stripper, Mower Round

Part# 140329 (Superseded to 532128961)

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140505

18

Bolt, Carriage 5/16-18 x 5/8

Part# 72140505

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

132827

19

Bolt, Hex Head, Shoulder 5/16-18

Part# 132827 (Superseded to 532132827)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

145055

20

Baffle, Vortex Mower 46"

Part# 145055

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $7.82

73680500

21

Nut, Crownlock 5/16-18 UNC

Part# 73680500

OEM Warranty Repair Part for Murray

Not available

134753

22

Stiffiner, Bracket

Part# 134753 (Superseded to 532134753)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $6.70

131267

23

Bracket, Deflector

Part# 131267 (Superseded to 532131267)

OEM Warranty Repair Part for Electrolux/AYP

Not available

105304X

24

Cap, Sleeve

Part# 105304X (Superseded to 532105304)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

149287

25

Spring, Torsion, Deflector

Part# 149287

OEM Warranty Repair Part for Electrolux/AYP

Not available

110452X

26

Nut, Push

Part# 110452X (Superseded to 532110452)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.76

166883

27

Shield, Deflector Mower

Part# 166883

OEM Warranty Repair Part for Electrolux/AYP

Not available

19111016

28

Washer 11/32 x 5/8 x 16 Ga.

Part# 19111016 (Superseded to 819111016)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

131491

29

Rod, Hinge

Part# 131491 (Superseded to 532131491)

OEM Warranty Repair Part for Electrolux/AYP

Not available

157722

30

Screw Thd Rolling Washer Head

Part# 157722 (Superseded to 532157722)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.23

129963

31

Washer, Spacer Mower Vented

Part# 129963 (Superseded to 532129963)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

153531

32

Pulley, Mandrel

Part# 153531 (Superseded to 532153531)

OEM Warranty Repair Part for Electrolux/AYP

Not available

137266

33

Nut, Flg. Top Lock Cntr. 9/16

Part# 137266 (Superseded to 532137266)

OEM Warranty Repair Part for Electrolux/AYP

Not available

144945

34

Anchor, Spring Deck 46"

Part# 144945

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

17490628

35

Screw, Thdroll 3/8-16 x 1-3/4 Tytt

Part# 17490628 (Superseded to 817490628)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

19131316

36

Washer 13/32 x 13/16 x 16 Ga.

Part# 19131316 (Superseded to 819131316)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

131494

37

Pulley, Idler, Flat

Part# 131494 (Superseded to 532104360)

OEM Warranty Repair Part for Electrolux/AYP

Not available

156085

38

Keeper, Belt, Idler

Part# 156085 (Superseded to 532156085)

OEM Warranty Repair Part for Electrolux/AYP

Not available

144917

39

Pulley, Idler, Driven

Part# 144917

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $20.11

137273

40

Spring, Secondary 44/46/50 Vent

Part# 137273 (Superseded to 532137273)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

17060620

41

Screw, Thdroll 3/8-16 x 1-1/4

Part# 17060620 (Superseded to 817060620)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

165723

42

Spacer, Retainer

Part# 165723 (Superseded to 532165723)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

144949

43

Arm, Idler Secondary

Part# 144949

OEM Warranty Repair Part for Electrolux/AYP

Not available

133943

44

Washer, Hardened

Part# 133943 (Superseded to 532133943)

OEM Warranty Repair Part for Electrolux/AYP

Not available

145059

45

Cover, Mandrel Deck

Part# 145059

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $11.17

137729

46

Screw, Thdroll. 1/4-20 x 5/8

Part# 137729 (Superseded to 532137729)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.78

144959

47

V-Belt, Mower, Secondary

Part# 144959 (Superseded to 532144959)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $34.65

139573

48

V-Belt, Mower, Primary

Part# 139573 (Superseded to 532139573)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $44.38

73680600

49

Nut, Crownlock 3/8-16 UNC

Part# 73680600 (Superseded to 873680600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

72110612

50

Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5

Part# 72110612 (Superseded to 872110612)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

153390

51

Washer, Felt

Part# 153390 (Superseded to 532153390)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

165888

52

Pulley, Idler, Flat

Part# 165888 (Superseded to 532165888)

OEM Warranty Repair Part for Electrolux/AYP

Not available

165906

58

Rod Brake 46"

Part# 165906

OEM Warranty Repair Part for Electrolux/AYP

Not available

157034

59

Guide, Belt 46" Mower

Part# 157034

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

156722

60

Arm Asm. Brake 46"

Part# 156722

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $13.41

161315

61

Bolt, Shoulder 5/16-18 Type TT

Part# 161315

OEM Warranty Repair Part for Electrolux/AYP

Not available

131870

62

Spring Return

Part# 131870 (Superseded to 532131870)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $19.25

106932X

67

Knob Rd 3/8-16 Plstc Thds Blk

Part# 106932X (Superseded to 532106932)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

73350600

69

Nut, Hex Jam 3/8-16 Unc

Part# 73350600

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131316

72

Washer 13/32 x 13/16 x 16 Ga.

Part# 19131316 (Superseded to 819131316)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

4497H

82

Retainer Spring 1"

Part# 4497H

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $6.70

10040600

85

Washer, Lock Hvy Hlcl Spr 3/8

Part# 10040600 (Superseded to 810040600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $1.67

4898H

116

Bolt, Shoulder

Part# 4898H

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.76

165746

117

Gauge Wheel

Part# 165746 (Superseded to 532165746)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $13.41

73930600

118

Nut, Centerlock 3/8-16 UNC

Part# 73930600

OEM Warranty Repair Part for Electrolux/AYP

Not available

19121414

119

Washer 3/8 x 7/8 x 14 Ga.

Part# 19121414 (Superseded to 819121414)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.03

156472

126

Arm, Idler, Deck 46" Mech.

Part# 156472

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $5.58

146763

127

Pulley, Idler, V-Groove Dim. 4.25

Part# 146763 (Superseded to 532146763)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $16.76

19133808

129

Washer 13/32 x 2-3/8 x 8 Ga.

Part# 19133808 (Superseded to 819133808)

OEM Warranty Repair Part for Electrolux/AYP

Not available

165891

130

Bolt Carriage Idler

Part# 165891

OEM Warranty Repair Part for Electrolux/AYP

Not available

169022

131

Spring Return Idler

Part# 169022 (Superseded to 532169022)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01

165890

132

Arm Spring Brake Mower

Part# 165890 (Superseded to 532165890)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

165904

133

Bracket Anchor Cable 46"

Part# 165904

OEM Warranty Repair Part for Electrolux/AYP

Not available

17490512

134

Screw Thdrol 5/16-18 x 3/4

Part# 17490512 (Superseded to 817490512)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

165898

135

Retainer Spring Yellow

Part# 165898 (Superseded to 532165898)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

19091216

136

Washer 9/32 x 3/4 x 16 Ga

Part# 19091216 (Superseded to 819091216)

OEM Warranty Repair Part for Electrolux/AYP

Not available

169670

151

Bracket Clutch Cable

Part# 169670 (Superseded to 532169670)

OEM Warranty Repair Part for Electrolux/AYP

Not available

170328

152

Clutch Cable 38"/46"

Part# 170328

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $50.30

169674

153

Washer Flat 3/8" Type B

Part# 169674

OEM Warranty Repair Part for Electrolux/AYP

Not available

169675

154

Spring Retainer

Part# 169675 (Superseded to 532169675)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

19671

155

Spring Retention Q

Part# 19671

OEM Warranty Repair Part for Electrolux/AYP

Not available

169672

156

Spacer Clutch Cable

Part# 169672 (Superseded to 532169672)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

169669

157

Rod Clutch Cable 38"

Part# 169669 (Superseded to 532169669)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $29.06

17720410

158

Screw Hex Thd Cut 1/4-20 x 5/8

Part# 17720410 (Superseded to 817720410)

OEM Warranty Repair Part for Electrolux/AYP

Not available

172497

Deck Complete

Part# 172497

Note: (Std. Deck-Order separately gauge wheel components Key Nos. 116-118)

OEM Warranty Repair Part for Electrolux/AYP

Not available

143651

Mandrel Assm. Service

Part# 143651 (Superseded to 532143651)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $68.19
