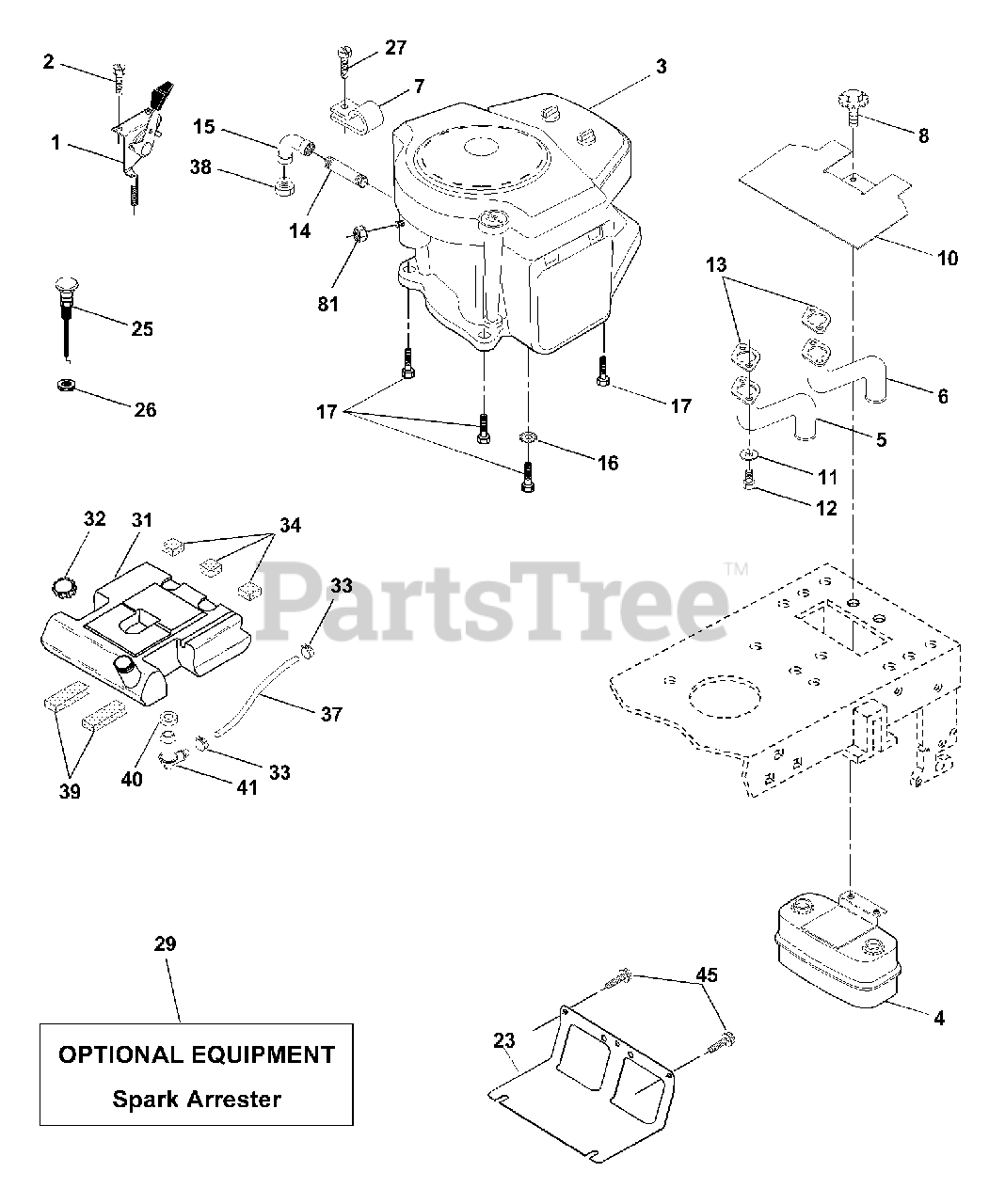

Q 185H46 A - Quality Lawn Tractor (2000) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title

1

Electrolux/AYP 141295

Control Th/ch LH Flag 35.5
(Superseded to 532170803)

$31.99

$

In Stock, only 3 left!

0

2

Electrolux/AYP 17720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 817720410)

$

$

Not available

3

Engine Briggs Model 42D707

Note: Order parts from engine manufacturer

$

$

Not available

4

Electrolux/AYP 149723

Muffler Exhaust
(Superseded to 532149723)

$51.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 144069

Exhaust Asm. Left
(Superseded to 532144069)

$

$

Not available

6

Electrolux/AYP 144068

Exhaust Asm Right
(Superseded to 532144068)

$

$

Not available

7

Electrolux/AYP 138129

Clamp Tube Double Engine
(Superseded to 532138129)

$

$

Not available

8

Electrolux/AYP 150176

Bolt 5/16-18 UNC x 3/4 W/Sems
(Superseded to 532149741)

$5.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 145552

Heat Shield LT
(Superseded to 532145552)

$

$

Not available

11

Electrolux/AYP 10040400

Washer Lock Hvy. Helical 1/4
(Superseded to 810040400)

Note: (Order from engine mfg.)

$3.49

$

In Stock, only 1 left!

0

12

Electrolux/AYP 74780412

Bolt Fin Hex 1/4-20 x 3/4
(Superseded to 874780412)

Note: (order from engine mfg.)

$

$

Not available

13

Electrolux/AYP 165287

Gasket Muffler
(Superseded to 532272250)

Note: (order from engine mfg.)

$

$

Not available

14

Electrolux/AYP 13280336

Nipple Pipe 3/8 Npt X 3"
(Superseded to 532428287)

$20.99

$

In Stock, Qty 5

0

15

Electrolux/AYP 13200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$20.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 11050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17490624

Screw Thdrol 3/8-16 x 1-1/2 Tytt
(Superseded to 817060624)

$5.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 169837

Shield Browning/Debris Guard
(Superseded to 532169837)

$

$

Not available

25

Electrolux/AYP 145996

Control Choke
(Superseded to 532145996)

$

$

Not available

26

Electrolux/AYP 73920600

Nut Keps 3/8-24 UNF
(Superseded to 873920600)

$

$

Not available

27

Electrolux/AYP 152927

Screw TT Flange
(Superseded to 532152927)

$3.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 137180

Kit Spark Arrestor (Flat Scrn)
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 151346

Tank Fuel Front
(Superseded to 532151346)

$113.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 140527

Cap Asm Fuel
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 123487X

Clamp Hose
(Superseded to 532123487)

$3.99

$

In Stock, only 2 left!

0

34

Electrolux/AYP 106082X

Strip Foam
(Superseded to 532106082)

$

$

Not available

37

Electrolux/AYP 8543R

Line Fuel
(Superseded to 532008543)

$

$

Not available

38

Oil Drain Plug

Note: (Order From Engine Mfg)

$

$

Not available

39

Electrolux/AYP 109227X

Pad Spacer
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 3645J

Bushing
(Superseded to 532003645)

$4.99

$

In Stock, Qty 8

0

41

Electrolux/AYP 139277

Stem Tank Fuel
(Superseded to 532139277)

$7.99

$

In Stock, only 2 left!

0

45

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

81

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available
