Q 81 GK (14AQ81GK897) - Columbia 54" Garden Tractor (2009)

54" Garden Tractor

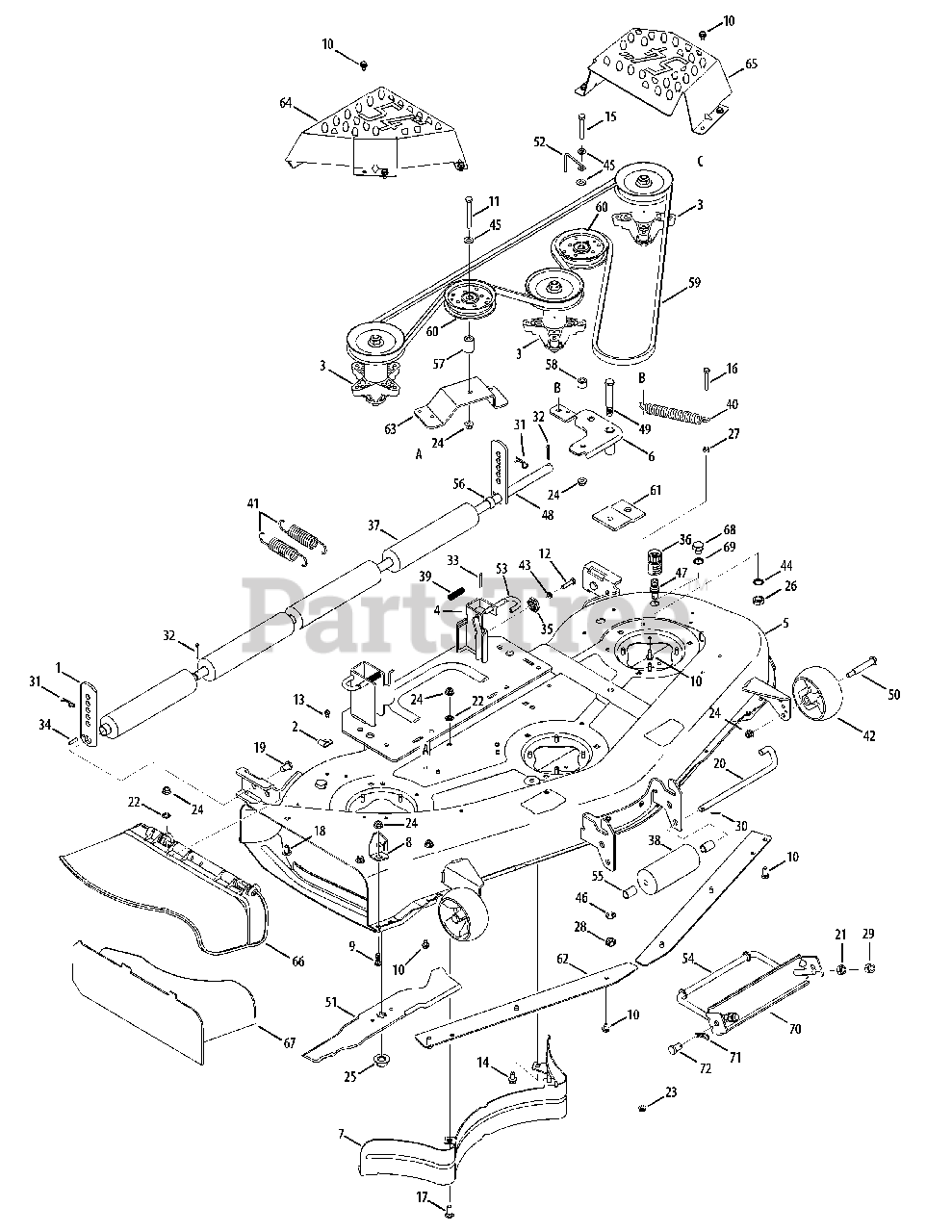

Q 81 GK (14AQ81GK897) - Columbia 54" Garden Tractor (2009) > Parts Diagrams (9) > Mower Deck 54 Inch

  • Title
12650-0637

1

Bracket, Height Adjustment

Part# 12650-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $30.86

96606

2

Retainer Hook Brkt.

Part# 96606

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.32

918-0671B

3

Spindle Assembly

Part# 918-0671B (Superseded to 918-04608A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $122.01

712-0417A

3

Flange Nut:5/8-18

Part# 712-0417A

Note: Not shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.15

937-3000

3

Grease Fitting:3/16:LNC #70:DRIVE

Part# 937-3000

Note: Not shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

738-1197

3

Spindle Shaft:6.95 LG.

Part# 738-1197

Note: Not shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $31.60

941-0919

3

Ball Bearing:20x47x14:62

Part# 941-0919 (Superseded to 941-0919B)

Note: Not shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.12

748-0160A

3

Spacer:.790 ID x 1.25OD X .175

Part# 748-0160A

Note: Not shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.69

750-1000

3

Spacer:.80 x 1.10 x 1.322

Part# 750-1000

Note: Not shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

750-1349A

3

Spacer:.79 x 1.82 x .55

Part# 750-1349A

Note: Not shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.81

756-04216

3

Deck Pulley:V TYP:5.39

Part# 756-04216

Note: Not shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.36

683-0254B-0606

4

Deck Adjustment Bracket w/Weld Nut

Part# 683-0254B-0606

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.13

983-04483-0606

5

54" Deck

Part# 983-04483-0606

OEM Warranty Repair Part for White Outdoor

Not available

683-0459-0637

6

Idler Assembly

Part# 683-0459-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $52.57

703-2093-0637

7

RR Inner Baf fle

Part# 703-2093-0637 (Superseded to 703-2093C-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $67.97

703-3279-0606

8

Chute Stop Deflector

Part# 703-3279-0606

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.26

710-04095

9

Screw, 3/8-16 x 1.0

Part# 710-04095

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.52

710-04484

10

S-Tapp Scr 5/16-18 x .75

Part# 710-04484

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.55

710-0521

11

Screw, 3/8-16 x 3.0

Part# 710-0521

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.63

710-0528

12

Hex Bolt 5/16-18 x 1.25

Part# 710-0528

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-0599

13

Hex Wash S-Tapp Scr 1/4-20 x .50

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0623

14

Screw, 3/8-16 x 0.75

Part# 710-0623

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

710-0859

15

Screw, 3/8-16 x 2.5

Part# 710-0859

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

710-3103

16

Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5

Part# 710-3103

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-3168

17

Carriage Bolt 3/8-16 x 1.0

Part# 710-3168

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

710-3178

18

Short Neck Carriage Bolt 3/8-16 x .75

Part# 710-3178

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

711-0332

19

Clevis Pin .50 Dia. x .78

Part# 711-0332 (Superseded to 911-0332)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.88

711-1737

20

Roller Pin .5" Dia x 10.06

Part# 711-1737

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.85

912-0206

21

Hex Nut 1/2-13

Part# 912-0206

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

712-0229

22

Push Nut 3/8

Part# 712-0229

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.52

712-04063

23

Flange Locknut 5/16-18 Gr. F, Ny lon

Part# 712-04063

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

712-04065

24

Flange Lock-Nut 3/8-16 Gr. F Ny lon

Part# 712-04065

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

712-0417A

25

Hex Flange Nut 5/8-18

Part# 712-0417A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.15

912-0641

26

Hex Nut, M16-1.5

Part# 912-0641

OEM Warranty Repair Part for White Outdoor

Not available

912-3010

27

Hex Nut 5/16-18 hd. (Gr. 5)

Part# 912-3010

OEM Warranty Repair Part for White Outdoor

Not available

712-3022

28

Hex L-Nut 1/2-13

Part# 712-3022

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

712-3083

29

Hex L-Nut 1/2-13

Part# 712-3083

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.21

914-0111

30

Cotter Pin 3/32 x 1.0

Part# 914-0111

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.36

914-0145

31

Cotter Pin

Part# 914-0145

OEM Warranty Repair Part for White Outdoor

Not available

714-0162

32

Cotter Pin

Part# 714-0162

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.45

914-0470

33

Cotter Pin 1/8" Dia x 1.25

Part# 914-0470

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

715-0108

34

Spring Pin 1/4 Dia. x 1.0

Part# 715-0108

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.52

917-04074

35

Deck Adjustment Gear

Part# 917-04074

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.19

921-04041

36

Water Nozzle Adaptor

Part# 921-04041

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.19

731-0335

37

Deck Roller

Part# 731-0335

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $50.90

731-05679

38

Front Roller

Part# 731-05679 (Superseded to 731-05679B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.73

932-0306A

39

Compression Spring .531 OD x 1.75 Lg.

Part# 932-0306A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.09

732-0459C

40

Extension Spring .94 Dia. x 6.74

Part# 732-0459C

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.87

732-0934

41

Extension Spring 1.5 x 5.99

Part# 732-0934

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.27

734-04155

42

Deck Wheel 5.0

Part# 734-04155

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.17

936-0119

43

L-Wash 5/16 ID

Part# 936-0119

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

736-0225

44

Lockwasher 5/8

Part# 736-0225

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

936-0300

45

Flat Washer .406 x .875 x .059

Part# 936-0300

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

936-0921

46

Lockwasher

Part# 936-0921

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

737-04003D

47

Port, Water

Part# 737-04003D

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.58

738-0295

48

Shaft .75 x 47.12

Part# 738-0295

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $87.71

738-1229A

49

Shoulder Screw

Part# 738-1229A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.25

938-3056

50

Shoulder Screw

Part# 938-3056

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.78

942-0677B

51

Blade 18.5

Part# 942-0677B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.69

747-04938

52

Idler Belt Keeper Rod

Part# 747-04938

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.60

747-1116

53

Deck Release Pin

Part# 747-1116

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.88

747-1324

54

Deck Adjustment Rod

Part# 747-1324

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $42.85

950-0151

55

Spacer .55 ID x .75 OD

Part# 950-0151

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.70

950-0212

56

Spacer .82 ID x 1.0 OD x .53

Part# 950-0212

OEM Warranty Repair Part for White Outdoor

Not available

750-04597

57

Spacer .380 ID x .90 OD x 1.313

Part# 750-04597

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

750-0933

58

Spacer .385 ID x .88 OD x .64

Part# 750-0933

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

954-0642

59

V-Type Belt, B Section

Part# 954-0642

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $85.02

756-04129

60

Idler Poulie w/Flange 4.25 Dia

Part# 756-04129 (Superseded to 753-08171)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $30.50

783-04013A-0637

61

Bracket, Stabilizing

Part# 783-04013A-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.28

783-04690B-0637

62

Deck Shirt

Part# 783-04690B-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $29.79

783-04726-0637

63

Idler Bracket

Part# 783-04726-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.92

783-1470A-0606

64

Spindle Cover RH

Part# 783-1470A-0606

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $75.65

783-1471-0606

65

Spindle Cover LH

Part# 783-1471-0606 (Superseded to 783-1471A-0606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $56.63

631-04070A

66

Chute Assembly

Part# 631-04070A (Superseded to 631-04070C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $90.31

731-04651

67

Mulching Plug

Part# 731-04651

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $67.73

738-04146

68

Plug Bolt, M16 x 1.5

Part# 738-04146

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.44

736-0187

69

Flat Washer .64 x 1.24 x .06

Part# 736-0187

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

783-0720C-0637

70

Front Deck Rod Adjustment Bracket

Part# 783-0720C-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $33.48

914-04023

71

Hair pin Clip

Part# 914-04023

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

911-0332

72

Clevis Pin .50 x .78

Part# 911-0332

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.88
