Q 92 GP (13AQ92GP897) - Columbia 50" Lawn Tractor (2010) Steering Assembly Parts Diagram

50" Lawn Tractor

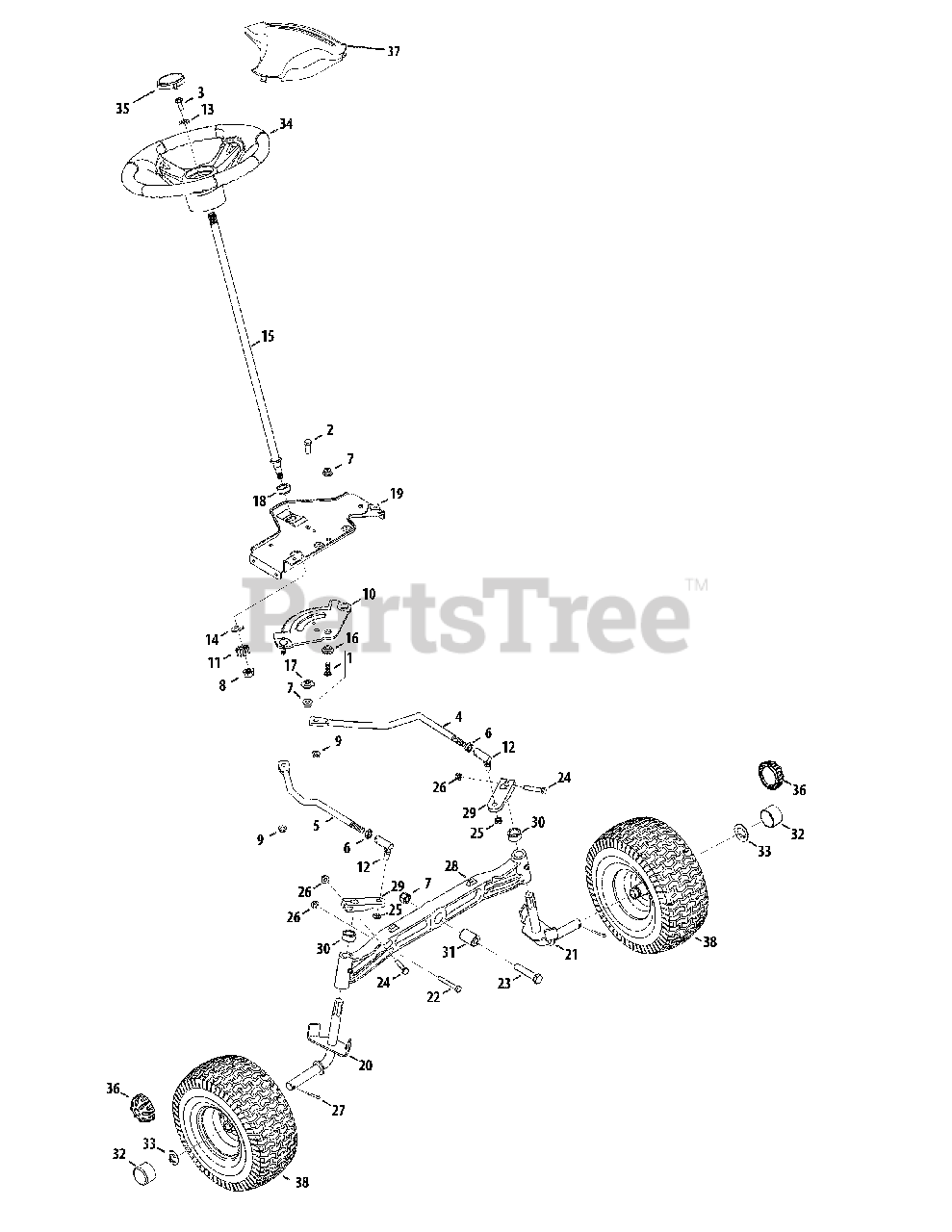

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 710-04095

Screw, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0514

Hex Screw 3/16 x 1.00

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0643

Hex Screw 5/16-18 x 1.00 Special

$7.49

$

In Stock, Qty 20+

0

4

White Outdoor 711-04998

Link, Drag LH

$29.99

$

In Stock, Qty 9

0

5

White Outdoor 711-04999

Link, Drag RH

$29.99

$

In Stock, Qty 5

0

6

White Outdoor 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0459

Flange Lock Nut, 7/16-20

$5.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 717-1550F

Steering Gear, 11/90 Ratio

$74.99

$

In Stock, Qty 20+

0

11

White Outdoor 717-1554

Steering Pinion Gear

$11.99

$

In Stock, Qty 20+

0

12

White Outdoor 923-0448A

Ball Joint, 7/16 - 20

$25.99

$

In Stock, Qty 20+

0

13

White Outdoor 936-3004

Flat Washer .406 ID x .875 DE x .105
(Superseded to 736-3004)

$

$

Not available

14

White Outdoor 736-3084

Fl. Washer .510 x 1.120 x .060

$5.49

$

In Stock, Qty 20+

0

15

White Outdoor 738-04263

Steering Shaft .625 OD x 24.25

$72.99

$

In Stock, Qty 6

0

16

White Outdoor 738-04363

Shoulder Spacer .385 x 1.25 x .3025

$6.49

$

In Stock, Qty 20+

0

17

White Outdoor 738-04364B

Spacer .38x 1.375 Special

$6.49

$

Usually ships in 3-6 days

0

18

White Outdoor 741-04237B

Hex Flange Bearing 5/8

$7.49

$

In Stock, Qty 20+

0

19

White Outdoor 783-06043-0637

Steering Support Bracket

$

$

Not available

20

White Outdoor 638-04036P

Axle Ass’y RH .750 Dia. (50" Deck)

$

$

Not available

21

938-04037

Axle Ass’y LH .750 Dia. (50" Deck)

$

$

Not available

22

White Outdoor 710-0395

Hex Bolt 5/16-18 x 2.25

$4.99

$

In Stock, Qty 11

0

23

White Outdoor 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$7.49

$

In Stock, Qty 19

0

24

White Outdoor 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.99

$

In Stock, Qty 20+

0

25

White Outdoor 912-0214

Hex Cent L-Nut 3/8-24
(Superseded to 712-0214)

$6.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 714-0162

Cotter Pin 5/32" Dia.

$5.49

$

In Stock, Qty 20+

0

28

White Outdoor 719-04413A

Pivot Bar (cast)

$255.99

$

Usually ships in 3-6 days

0

29

White Outdoor 748-04065-0637

Steering Block
(Superseded to 748-04278-0637)

$22.99

$

In Stock, Qty 11

0

30

White Outdoor 748-04068

Spacer .710 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 750-05280

Spacer .385 x 1.0 x 1.5075

$11.99

$

In Stock, Qty 7

0

32

White Outdoor 731-05674

Hub Cap

$5.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-04228A

Flat Washer .350 x 1.559 x .062
(Superseded to 736-04228B)

$5.99

$

In Stock, Qty 20+

0

34

White Outdoor 631-04008A

Steering Wheel, Softgrip
(Superseded to 631-04008B)

$100.99

$

In Stock, only 1 left!

0

35

White Outdoor 731-04040

Steering Wheel Cap (sprig) logo

$10.99

$

In Stock, only 1 left!

0

36

White Outdoor 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.99

$

In Stock, Qty 20+

0

37

White Outdoor 731-04065A

Steering Wheel Cover (w/sprigs)

$15.99

$

Usually ships in 3-6 days

0

38

N/A

Wheel Ass'y Complete

$

$

Not available

38

White Outdoor 734-1727

Tire Only

Note: Not shown

$60.99

$

Usually ships in 3-6 days

0

38

White Outdoor 934-04090A-0662

Rim Only

Note: Not shown

$201.99

$

Usually ships in 3-6 days

0

38

White Outdoor 934-0255

Valve

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 941-04137

Ball Bearing
(Superseded to 941-04137A)

Note: Not shown

$32.99

$

In Stock, only 3 left!

0

38

White Outdoor 750-04219B

Spacer

Note: Not shown

$

$

Not available
