Q FT5A - Quality Tiller (2000)

Tiller

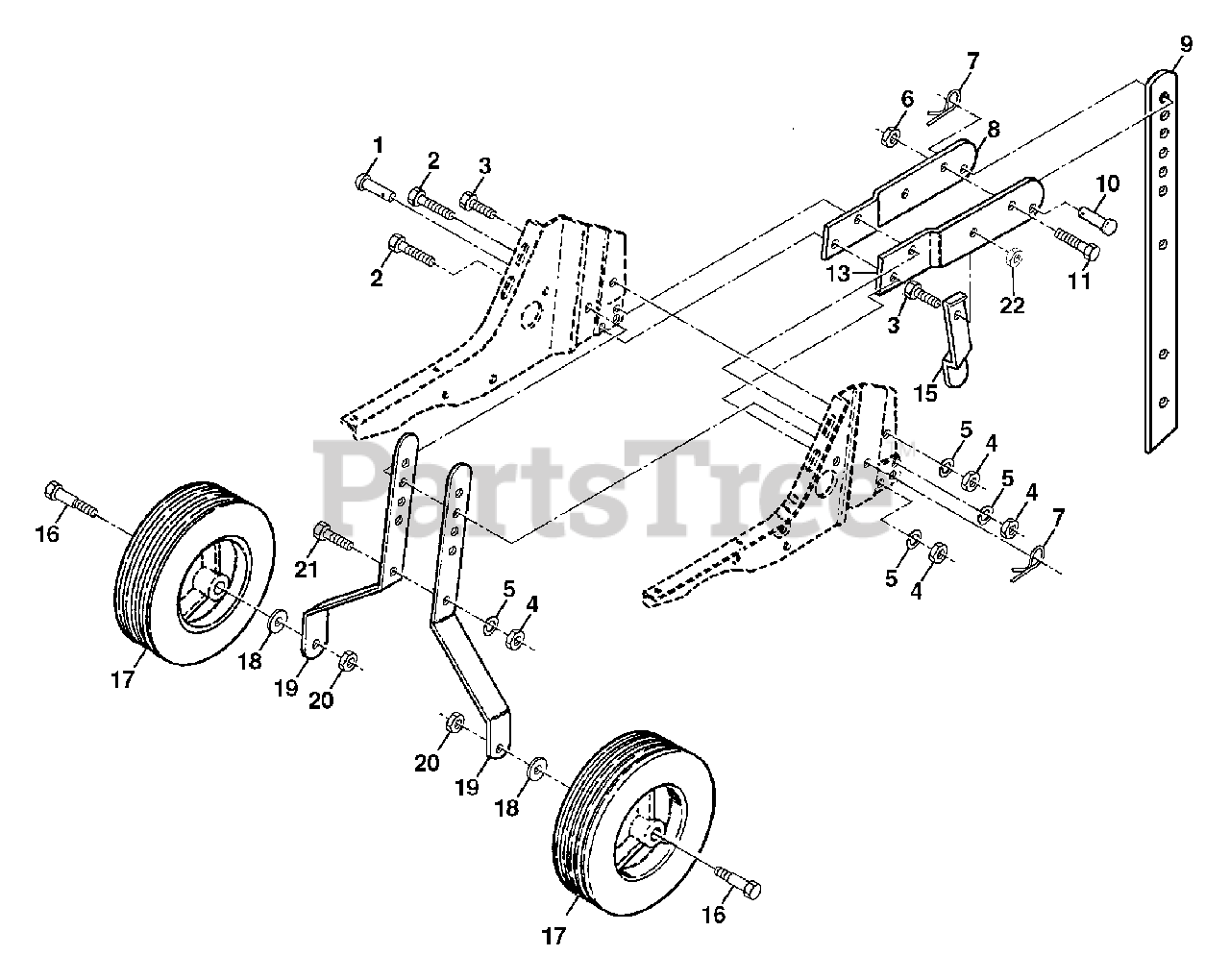

Q FT5A - Quality Tiller (2000) > Parts Diagrams (6) > Wheel And Depth Stake Assembly

  • Title
9194R

1

Pin, Clevis

Part# 9194R

OEM Warranty Repair Part for Electrolux/AYP

Not available

74760520

2

Bolt, Hex 5/16-18 x 1-1/4

Part# 74760520

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.56

74760512

3

Bolt, Hex 5/16-18 x 3/4

Part# 74760512

OEM Warranty Repair Part for Electrolux/AYP

Not available

73220500

4

Nut, Hex 5/16-18

Part# 73220500 (Superseded to 873220500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

10040500

5

Washer, Lock 5/16

Part# 10040500 (Superseded to 810040500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

73800600

6

Locknut, w/washer 3/8-16

Part# 73800600

OEM Warranty Repair Part for Electrolux/AYP

Not available

4921H

7

Clip, Hairpin

Part# 4921H (Superseded to 532004921)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

1952J

8

Support, Depth Stake, R.H.

Part# 1952J

OEM Warranty Repair Part for Electrolux/AYP

Not available

122233X

9

Stake, Depth

Part# 122233X

OEM Warranty Repair Part for Electrolux/AYP

Not available

326J

10

Pin, Clevis

Part# 326J

OEM Warranty Repair Part for Electrolux/AYP

Not available

74780628

11

Bolt, Hex, Fin 3/8-16 x 1-3/4

Part# 74780628

OEM Warranty Repair Part for Electrolux/AYP

Not available

1951J

13

Support, Depth Stake, L.H.

Part# 1951J

OEM Warranty Repair Part for Electrolux/AYP

Not available

5388J

15

Spring, Stake

Part# 5388J

OEM Warranty Repair Part for Electrolux/AYP

Not available

121117X

16

Bolt, Shoulder

Part# 121117X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

9188R

17

Wheel

Part# 9188R

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131311

18

Washer 13/32 x 13/16 x 11 Ga.

Part# 19131311

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

9190R

19

Bracket, Wheel

Part# 9190R

OEM Warranty Repair Part for Electrolux/AYP

Not available

73680600

20

Locknut, Crown 3/8-16

Part# 73680600 (Superseded to 873680600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

74760516

21

Bolt, Hex 5/16-18 x 1

Part# 74760516

OEM Warranty Repair Part for Electrolux/AYP

Not available

73800500

22

Locknut, w/insert 5/16-18

Part# 73800500 (Superseded to 873800500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01
