Q RT5A - Quality Tiller (2000) Transmission Parts Diagram

Tiller

Transmission Parts Diagram

  • Title

1

Electrolux/AYP 170337

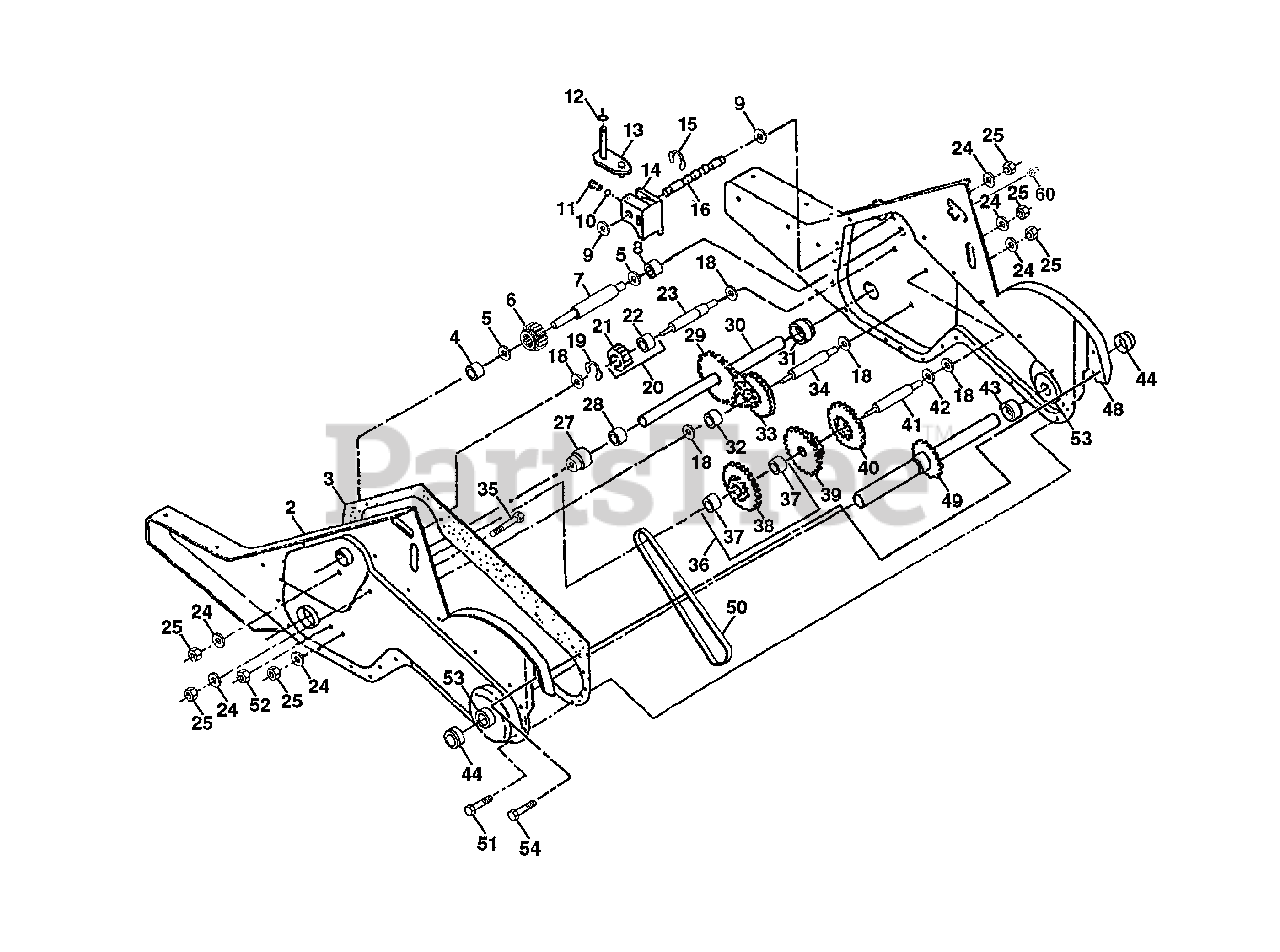

Transmission Assembly

Note: (Includes Key Nos. 2-54)

$

$

Not available

2

Electrolux/AYP 165729

Gearcase, L.H. w/Bearing
(Superseded to 532188482)

Note: (Includes Key No. 4)

$849.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 161963

Gasket, Gearcase
(Superseded to 532431022)

$25.99

$

In Stock, Qty 19

0

4

Electrolux/AYP 5020J

Bearing, Needle
(Superseded to 532005020)

$17.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 1370H

Washer, Thrust 5/8 x 1.10 x 1/32
(Superseded to 532001370)

$6.49

$

In Stock, Qty 19

0

6

Electrolux/AYP 137335

Pinion, Input
(Superseded to 586196301)

$27.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 145101

Shaft, Input
(Superseded to 532145101)

$78.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 4895H

Bearing, Needle
(Superseded to 532004895)

$17.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 154467

Washer, Seal
(Superseded to 532154467)

$7.49

$

In Stock, Qty 12

0

10

Electrolux/AYP 7392M

Ball, Steel
(Superseded to 532007392)

$

$

Not available

11

Electrolux/AYP 100371K

Spring, Shift, Fork
(Superseded to 532100371)

$7.49

$

In Stock, Qty 15

0

12

Electrolux/AYP 106160X

O-Ring
(Superseded to 532106160)

$6.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 142145

Bracket, Shift
(Superseded to 532142145)

$

$

Not available

14

Electrolux/AYP 8353J

Fork, Shift
(Superseded to 532008353)

$34.99

$

In Stock, Qty 10

0

15

Electrolux/AYP 12000039

Ring, Klip
(Superseded to 812000039)

$6.49

$

In Stock, Qty 13

0

16

Electrolux/AYP 154466

Shaft, Shift
(Superseded to 532154466)

$5.99

$

In Stock, Qty 8

0

18

Electrolux/AYP 4358J

Washer
(Superseded to 532004358)

$7.49

$

In Stock, only 2 left!

0

19

Electrolux/AYP 12000040

Ring, Klip
(Superseded to 812000040)

$6.49

$

In Stock, only 1 left!

0

20

Electrolux/AYP 102114X

Gear, Assembly, Reverse Idler
(Superseded to 532102114)

Note: (Includes Key Nos. 21 and 22)

$

$

Not available

21

Electrolux/AYP 102115X

Gear, Reverse Idler
(Superseded to 532102115)

$17.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 6803J

Bearing, Needle
(Superseded to 532006803)

$10.99

$

In Stock, Qty 6

0

23

Electrolux/AYP 102111X

Shaft, Reverse Idler
(Superseded to 532102111)

$18.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 10040700

Washer, Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 73610700

Nut, Hex 7/16-20
(Superseded to 873610700)

$7.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 143009

Bearing, Shaft, Ground Drive L.H.
(Superseded to 532431219)

$

$

Not available

28

Electrolux/AYP 106390X

Spacer 0.765 x 1.125 x 1.23
(Superseded to 532106390)

$4.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 102134X

Chain #35-50 Pitch
(Superseded to 532102134)

$31.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 150737

Ground Shaft Assembly
(Superseded to 532150737)

$

$

Not available

31

Electrolux/AYP 143008

Bearing, Shaft, Ground Drive R.H.
(Superseded to 532143008)

$

$

Not available

32

Electrolux/AYP 106388X

Spacer 0.70 x 1.00 x 1.150
(Superseded to 532106388)

$6.49

$

In Stock, only 1 left!

0

33

Electrolux/AYP 102121X

Sprocket and Gear Assembly
(Superseded to 532102121)

$

$

Not available

34

Electrolux/AYP 102112X

Shaft, Reduction (2nd)
(Superseded to 532102112)

$27.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 102101X

Screw, Whiz, Lock 5/16-18 x 3-1/2
(Superseded to 532102101)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 154355

Sprocket Assembly w/Bearing
(Superseded to 532154355)

Note: (Includes Key Nos. 37 and 38)

$

$

Not available

37

Electrolux/AYP 4422J

Bearing, Needle
(Superseded to 585695502)

$6.49

$

In Stock, Qty 20+

0

38

Electrolux/AYP 154356

Sprocket, Tine
(Superseded to 532154355)

$

$

Not available

39

Electrolux/AYP 105345X

Gear, Cluster, Red 1st & 2nd
(Superseded to 532131527)

$46.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 105346X

Gear, Reverse
(Superseded to 532105346)

$27.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 8358J

Shaft, Reduction (1st)
(Superseded to 532008358)

$14.99

$

In Stock, only 1 left!

0

42

Electrolux/AYP 4220R

Washer, Thrust
(Superseded to 532004220)

$4.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 106146X

Spacer 1.01 x 1.75 x 0.760
(Superseded to 532106146)

$34.99

$

In Stock, only 1 left!

0

44

Electrolux/AYP 155236

Seal, Asm. Oil
(Superseded to 532155236)

$7.49

$

In Stock, Qty 14

0

48

Electrolux/AYP 170338

Gearcase, R.H. w/Bearing
(Superseded to 532188485)

Note: (Includes Key No. 8)

$849.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 132688

Shaft, Tine
(Superseded to 532432058)

$

$

Not available

50

Electrolux/AYP 106147X

Chain, Roller #50-50 Pitch
(Superseded to 532106147)

$66.99

$

In Stock, Qty 6

0

51

Electrolux/AYP 17720408

Screw 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 165140

Kit, Bearing, Tine Shaft
(Superseded to 532165140)

$93.99

$

In Stock, Qty 7

0

54

Electrolux/AYP 17720412

Screw 1/4-20 x 3/4
(Superseded to 817720412)

$7.49

$

In Stock, Qty 5

0

60

Electrolux/AYP 6855M

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

60

Electrolux/AYP 6066J

Grease, Plastilube #1
(Superseded to 585517301)

$

$

Not available
