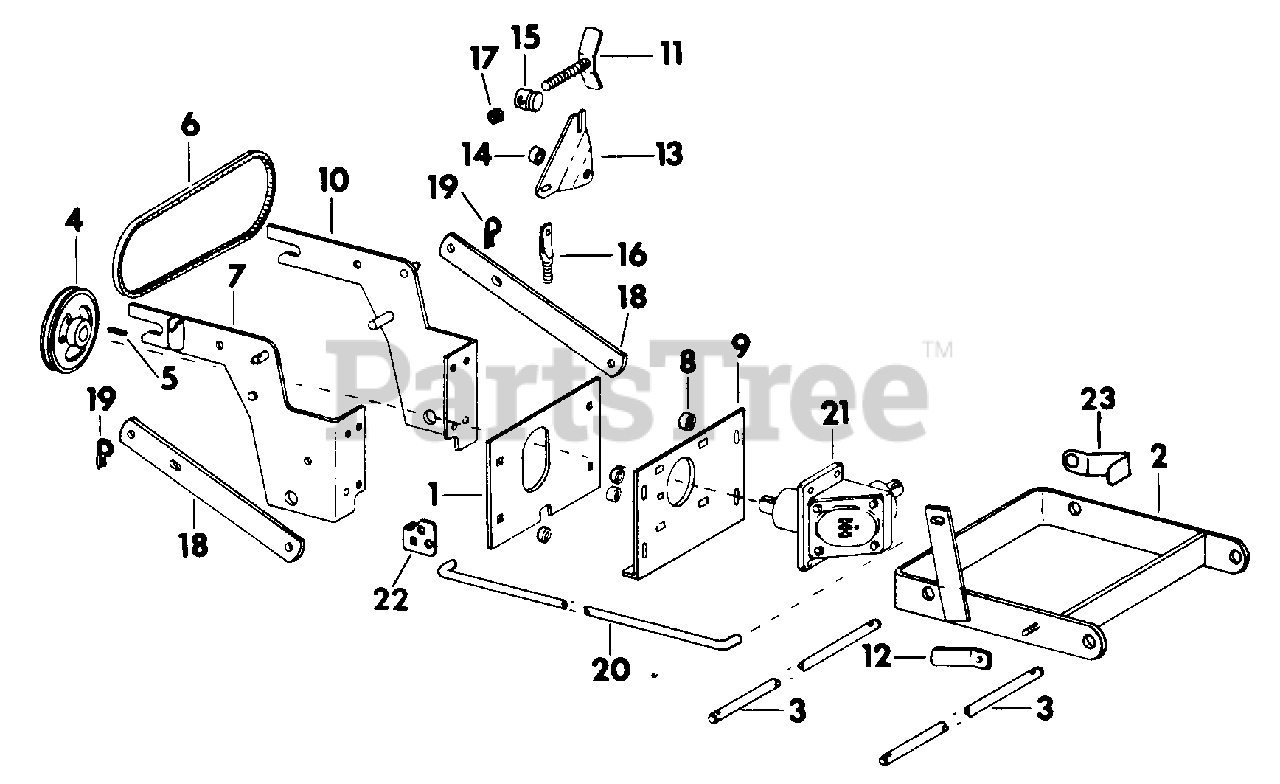

QA36 A (QA42 A) - Cub Cadet Snow Thrower Attachment Main Belt Drive Gear Box Mounting Plates & Lifting Linkage Parts Diagram

Snow Thrower Attachment

Main Belt Drive Gear Box Mounting Plates & Lifting Linkage Parts Diagram

  • Title

1

Cub Cadet IH-548183-R1

Plate Assy, Front

$

$

Not available

Cub Cadet IH-18684-R1

Bolt, 3/8 X 1-1/4 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet 712-0798

Nut, 3/8-16 Znd Hex

Note: Replaces IH-120377

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 936-0169

Washer, 3/8 Znd Reg Lock
(Superseded to 736-0169)

Note: Replaces IH-120382

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-446548

Washer, 38 X 3/4 X .065 C-Z

$

$

Currently unavailable

2

Cub Cadet IH-548184-R2

Bracket, Lift

$

$

Not available

Cub Cadet IH-79629-C1

Bracket, Lift

$

$

Currently unavailable

3

Cub Cadet IH-548185-R1

Shaft, Pivot

$

$

Currently unavailable

Cub Cadet 714-0142

Pin, 3/16 X 1-1/4 C-Z Cotter

Note: Replaces IH-187988

$6.49

$

In Stock, only 1 left!

0

4

Cub Cadet IH-485247-R91

Pulley, w/Set Screws, Gear Box

Note: For Cadet Tractors 700 thru 1650

$

$

Not available

Cub Cadet IH-78055-C2

Pulley, Gear Box -For Cadet Tractors 482 thru 782

$

$

Not available

Cub Cadet IH-102-581

Screw, 5/16-18 X 3/8 Hex-Soc-Hd Cup-Pt Set

$

$

Currently unavailable

5

Cub Cadet IH-474098-R1

Key, 3/16 X 1-1/4 Sq Parallel

$

$

Currently unavailable

6

Cub Cadet IH-55053-C1

Belt, Main Drive -For Cadet Tractors 700 thru 1650

$27.99

$

In Stock, only 3 left!

0

Cub Cadet IH-78056-C1

Belt, Main Drive -For Cadet Tractors 482 thru 782

$

$

Not available

7

Cub Cadet IH-548182-R2

Bracket, Front RH

$

$

Not available

8

Cub Cadet IH-490125-R1

Spacer

$

$

Not available

9

Cub Cadet IH-549257-R1

Plate, Gear Box Mounting

$

$

Currently unavailable

10

Cub Cadet IH-548181-R2

Bracket, Front LH

$

$

Not available

11

Cub Cadet IH-548186-R1

Bolt, Belt Adjusting

$

$

Not available

Cub Cadet 936-0272

Washer, 17/32 X 1-1/16 X .095 C-Z
(Superseded to 736-0272)

Note: Replaces IH-120396

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet IH-548673-R1

Nut Assy, Wing

$

$

Currently unavailable

Cub Cadet 936-0140

Washer, 13/32 X 13/16 X .065 C-Z
(Superseded to 736-0140)

Note: Replaces IH-120394

$

$

Not available

13

Cub Cadet IH-527742-R1

Plate, Pivot

$

$

Not available

Cub Cadet 710-0514

Screw, 3/8-16 X 1 Znd Hex-Hd Cap

Note: Replaces IH-180122

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

Note: Replaces IH-120377

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-442-813

Nut, 3/8-16 Hex Lock

$

$

Currently unavailable

Cub Cadet 936-0169

Washer, 3/8 C-Z Med Lock
(Superseded to 736-0169)

Note: Replaces IH-120382

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 936-0140

Washer, 13/32 X 13/16 X .065 C-Z
(Superseded to 736-0140)

Note: Replaces IH-120394

$

$

Not available

14

Cub Cadet IH-527743-R1

Spacer

$

$

Not available

15

Cub Cadet IH-548188-R1

Nut, Swivel

$

$

Not available

16

Cub Cadet IH-527745-R1

Bolt, Eye

$

$

Not available

Cub Cadet 912-0206

Nut, 1/2-13 Znd Hex
(Superseded to 712-0206)

Note: Replaces IH-120378

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 936-0272

Washer, 17/32 X 1-1/16 X .095 C-Z
(Superseded to 736-0272)

Note: Replaces IH-120396

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet IH-548187-R1

Nut, 1/2-13 LH Slt Hex

$

$

Currently unavailable

Cub Cadet 914-0115

Pin, 1/8 X 1 C-Z Cotter
(Superseded to 714-0115)

Note: Replaces IH-137185

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet IH-548192-R1

Link, Top

$

$

Not available

Cub Cadet IH-79011-C1

Link, Top

$

$

Not available

Cub Cadet 936-0272

Washer, 17/32 X 1-1/16 X .095 C-Z
(Superseded to 736-0272)

Note: Replaces IH-120396

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-3020

Pin, Hair

Note: Replaces IH-475579-R1

$3.99

$

In Stock, Qty 9

0

20

Cub Cadet IH-548189-R1

Rod, Lift

$

$

Not available

Cub Cadet 714-3020

Pin, Special

Note: Replaces IH-475579-R1

$3.99

$

In Stock, Qty 9

0

Cub Cadet 936-0272

Washer, 17/32 X 1-1/16 X .095 C-Z
(Superseded to 736-0272)

Note: Replaces IH-120396

$4.49

$

In Stock, Qty 20+

0

21

Gear Box Assy

Note: For components see list of parts under details of Gear Box listing in this section

$

$

Not available

22

Cub Cadet 703-0672

Bracket, Lift Handle -For Cadet Tractors 482 thru 782

Note: Replaces IH-78057-C1

$

$

Not available

Cub Cadet 710-0560

Bolt, 3/8 X 1-3/4 Crg Type 5

Note: Replaces IH-598811-R1

$6.49

$

In Stock, Qty 19

0

Cub Cadet 712-0375

Nut, 3/8 Cad P/T Lock Type 1

Note: Replaces IH-274993

$4.49

$

In Stock, Qty 12

0

23

Cub Cadet IH-79631-C1

Clip

$

$

Currently unavailable
