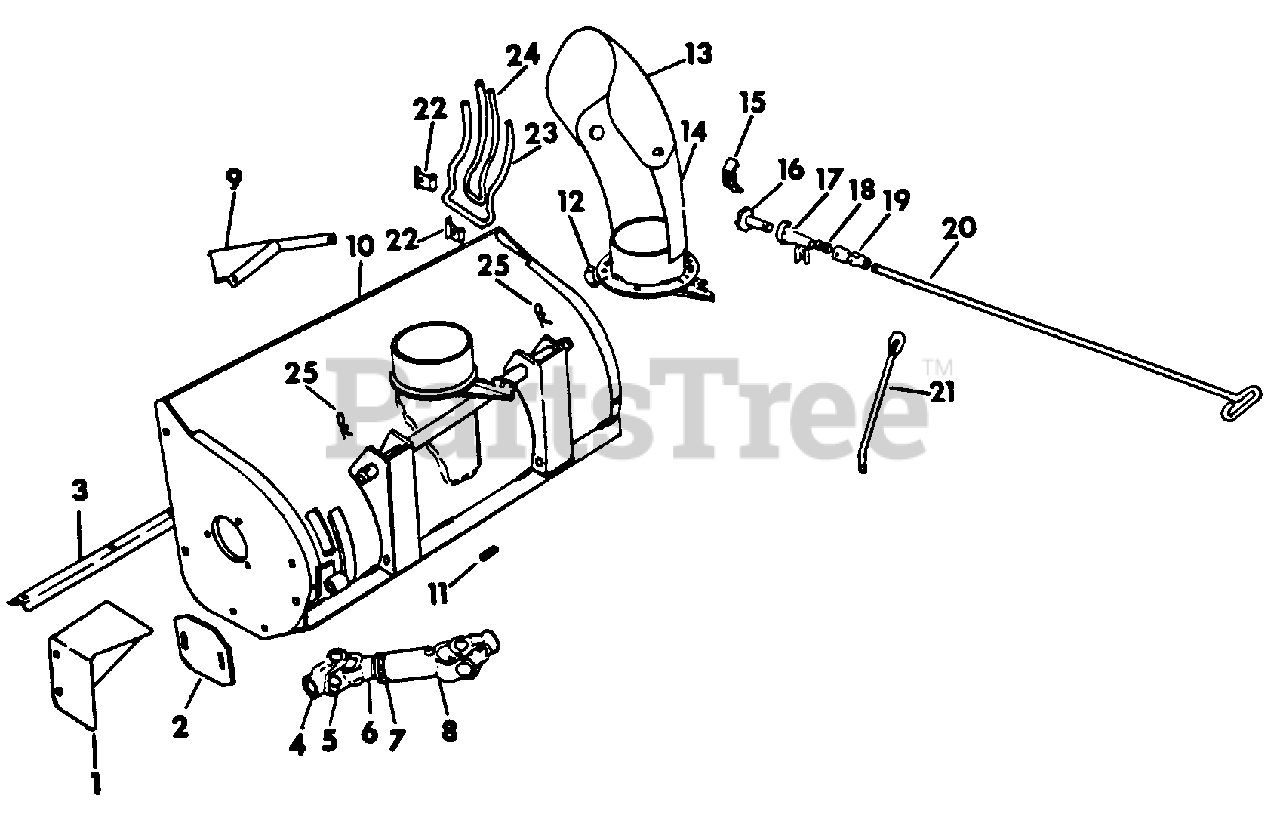

QA36 A (QA42 A) - Cub Cadet Snow Thrower Attachment Thrower Housing, Universal Joints & Auger Parts Diagram

Snow Thrower Attachment

Thrower Housing, Universal Joints & Auger Parts Diagram

  • Title

1

Cub Cadet 548-193-R1

Shield, Universal -For QA 36A & QA 36B Snow Throwers

$

$

Currently unavailable

Cub Cadet 548-194-R1

Shield, Universal -For QA 42A Snow Thrower

$

$

Currently unavailable

Cub Cadet 18-673-R1

Bolt, 5/16-18 X 1-2 C-Z Short Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 180-007

Screw, 5/16-18 X 3/4 Znd Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

Washer, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

2

Cub Cadet 475-565-R1

Runner

$

$

Currently unavailable

Cub Cadet 17-351-R1

Bolt, 3/8-16 X 1 Znd Short Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-446548

Washer, 3/8 X 3/4 X .095 Znd

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$3.99

$

In Stock, only 2 left!

0

3

Cub Cadet 397-023-R1

Blade -For QA 36A & QA 36B Snow Throwers

$

$

Currently unavailable

Cub Cadet 397-024-R1

Blade -For QA 42A Snow Thrower

$

$

Currently unavailable

Cub Cadet 18-673-R1

Bolt, 5/16-18 X 1/2 Znd Short Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 475-608-R92

Joint Assy, Universal -Blower half-

$

$

Currently unavailable

Cub Cadet 397-025-R92

Joint Assy, Universal -Blower half-

$

$

Currently unavailable

5

Cub Cadet 124-348-R91

Kit, Universal Joint

$

$

Currently unavailable

6

Cub Cadet 475-609-R1

Retainer, Grease

$

$

Currently unavailable

7

Cub Cadet 124-355-R1

Cap, Retainer

$

$

Currently unavailable

Cub Cadet 137-218

Pin, 5/32 X 1-1/4 C-Z Cotter

$

$

Currently unavailable

Cub Cadet 102-592

Screw, 3/8-16 X 3/8 Hex-Soc-Hd Cup-Pt Set

$

$

Currently unavailable

8

Cub Cadet 475-607-R92

Joint Assy, Universal -Tractor half

$

$

Currently unavailable

9

Cub Cadet 397-046-R1

Guard, Reflector

$

$

Currently unavailable

Cub Cadet 18-673-R1

Bolt, 5/16-18 X 1/2 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 548-190-R1

Housing -For QA 36A Snow Thrower

$

$

Currently unavailable

Cub Cadet 548-191-R1

Housing -For QA 42A Snow Thrower

$

$

Currently unavailable

11

Cub Cadet 475-642-R1

Key, 3/16 X 11/16 Sq Parallel

$

$

Currently unavailable

12

Cub Cadet 397-040-R1

Clip, Retainer

$

$

Currently unavailable

Cub Cadet 18-626-R1

Bolt, 1/4 X 1/2 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120375

Nut, 1/4-20 C-Z Hex
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120380

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

13

Cub Cadet 548-196-R1

Cap, Deflector

$

$

Currently unavailable

14

Cub Cadet 548-195-R1

Chute, Snow

$

$

Currently unavailable

15

Cub Cadet 548-197-R1

Nut, Wing

$

$

Currently unavailable

Cub Cadet 16-688-R1

Bolt, 5/16 X 1-1/4 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet 9411-638

Nut, 5/16-18 Cad Hex Lock

$

$

Currently unavailable

Cub Cadet IH-178551

Washer, 3/8 Int-Ext Tooth Lock
(Superseded to IH-178551P)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120393

Washer, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

16

Cub Cadet 62-415-C2

Sprocket Assy, Chute Adjustment -12 Teeth- - Replaces 397 041 R1

$

$

Currently unavailable

17

Cub Cadet 397-044-R1

Support, Bearing

$

$

Currently unavailable

Cub Cadet 16-897-R1

Bolt, 5/16-18 X 3/4 C-Z Short Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 397-042-R1

Spring

$

$

Currently unavailable

19

Cub Cadet 397-043-R1

Joint Assy, Universal

$

$

Currently unavailable

Cub Cadet IH-120169

Pin, 5/32 X 1 C-Z Cotter

$

$

Not available

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

20

Cub Cadet 397-045-R1

Rod, Chute Control

$

$

Currently unavailable

21

Cub Cadet 490-131-R3

Rod, Support

$

$

Currently unavailable

Cub Cadet IH-177923

Pin, 1/8 X 3/4 C-Z Cot
(Superseded to 914-0474)

$

$

Not available

22

Cub Cadet 542-842-R1

Clamp, Deflector Guard Bracket

$

$

Currently unavailable

Cub Cadet 18-626-R1

Bolt, 1/4-20 X 1/2 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120375

Nut, 1/4-20 Znd Hex
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120380

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

23

Cub Cadet 542-845-R1

Rod, Chute Deflector Side

$

$

Currently unavailable

24

Cub Cadet 543-154-R1

Rod, Chute Deflector Center

$

$

Currently unavailable

25

Cub Cadet 475-579-R1

Pin, Hair

$

$

Currently unavailable

Cub Cadet 72-872-C3

Product Graphic, Caution

$

$

Currently unavailable

Cub Cadet 73-235-C2

Product Graphic, Caution

$

$

Currently unavailable

Cub Cadet 72-862-C2

Product Graphic, Caution

$

$

Currently unavailable
