QA36 (QA42) - Cub Cadet Snow Thrower Attachment Front Power Take-Off -90 Degree Gear Box- Parts Diagram

Snow Thrower Attachment

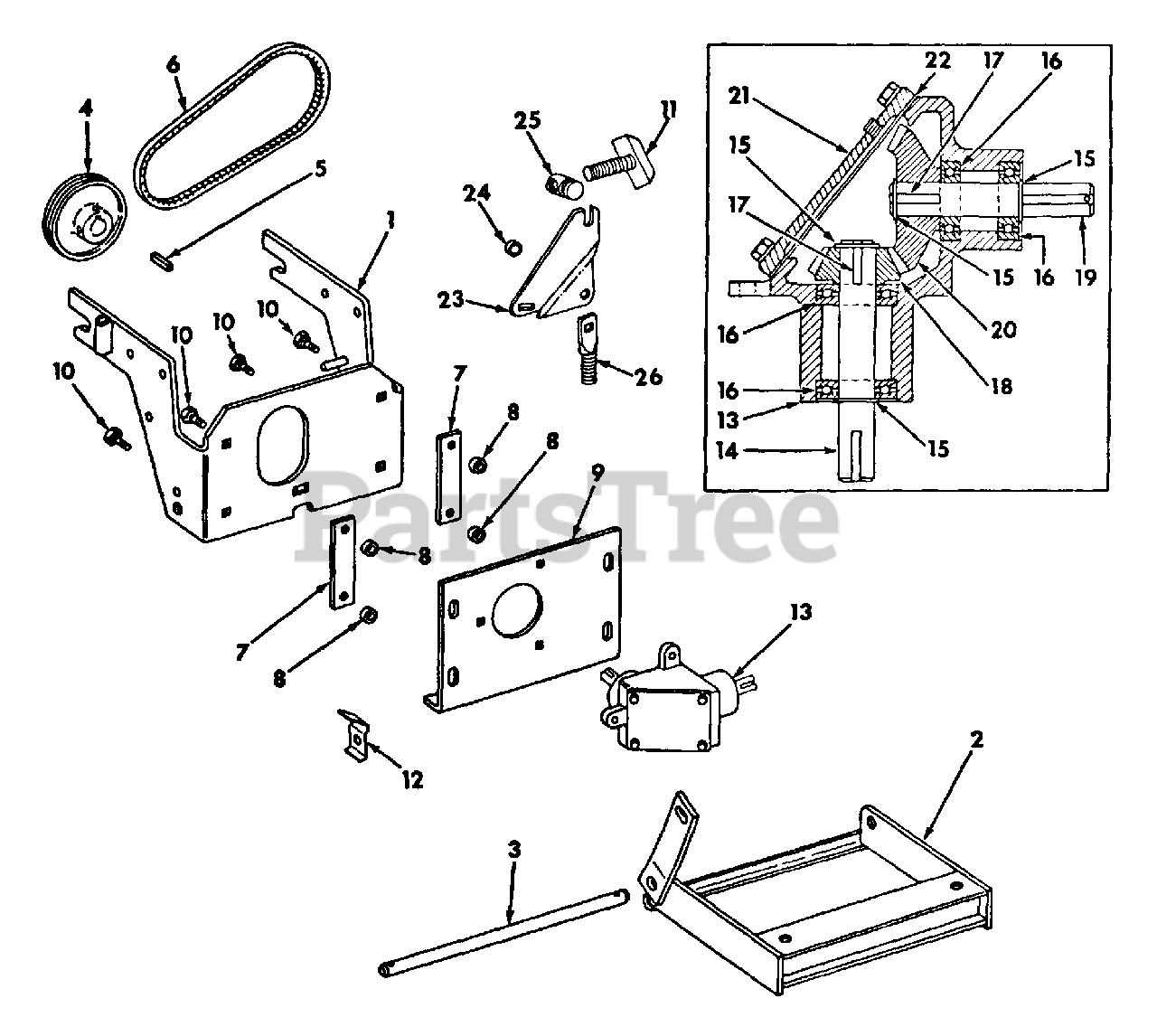

Front Power Take-Off -90 Degree Gear Box- Parts Diagram

  • Title

1

490123-R1

PLATE ASSY., FRONT MOUNTING

Note: USED W/BELT ADJUSTER BOLT

$

$

Not available

490127-R1

ON LOWER RH FRONT

$

$

Not available

18684-R1

BOLT, 3/8 x 1-1/4 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet 120377

NUT, 3/8-16 CD OR ZN-PLTD HEX

$

$

Currently unavailable

Cub Cadet 446548

WASHER, 3/8 X 3/4 X .065 CD OR ZN-PLTD

$

$

Currently unavailable

Cub Cadet 120382

WASHER, 3/8 CD OR ZN-PLTD MED LOCK

$

$

Currently unavailable

1

544282-R1

PLATE ASSY., FRONT MOUNTING

Note: USED W/ADJUSTER ON LH SIDE AND W/REF. NOS. 11, 23 THRU 26

$

$

Not available

2

490129-R1

BRACKET ASSY., LIFT

$

$

Not available

3

Cub Cadet 490130-R1

SHAFT, PIVOT

$

$

Currently unavailable

Cub Cadet 187988

PIN, 3/16 X 1-1/4 CD OR ZN-PLTD COT.

$

$

Currently unavailable

4

485247-R91

PULLEY, GEAR BOX

Note: REPLACES P/N 475613-R91

$

$

Not available

102581

SCREW, 5/16-18 X 3/8 HEX-SOC-HD CUP-PT SET

$

$

Not available

5

474098-R1

KEY, 3/16 X 1-1/4 SQ PARALLEL

$

$

Not available

6

487043-R1

BELT, V

$

$

Not available

7

462729-R1

SPACER, PLATE

$

$

Not available

7

490133-R1

BAR, SPACER

Note: USE ONLY ON CUB CADET 70, 71, 102, 122, AND 123 TRACTORS ONLY

$

$

Not available

20249-R1

SCREW, 1/2-13 X 1 C-Z SLT THRUSS-HD MACH

$

$

Not available

180175

SCREW, 1/2-13 X 1-1/4 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet 120378

NUT 1/2-13 C-Z HEX

$

$

Currently unavailable

Cub Cadet 120384

WASHER, 1/2 C-Z MED LOCK

$

$

Currently unavailable

8

490125-R1

SPACER

$

$

Not available

9

490126-R1

PLATE, GEAR BOX MOUNTING

$

$

Not available

10

489374-R1

BOLT, SHOULDER

$

$

Not available

Cub Cadet 120396

WASHER, 17/32 X 1-1/16 X .095 C-Z

$

$

Currently unavailable

11

490127-R1

BOLT ASSY., BELT ADJ.

$

$

Not available

12

490128-R1

PLATE LOCK

$

$

Not available

Cub Cadet 137185

PIN 1/8 X 1 C-Z COT.

$

$

Currently unavailable

13

475596-R1

BOX, GEAR

$

$

Not available

14

475606-R1

SHAFT INPUT

$

$

Not available

16888-R1

BOLT, 5/16 X 1-1/4 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet 120376

NUT, 5/16-18 CD OR ZN-PLTD HEX

$

$

Currently unavailable

Cub Cadet 120214

WASHER, 5/16 CD OR ZN-PLTD MED LOCK

$

$

Currently unavailable

15

269181-R1

RING, RETAINING SNAP

$

$

Not available

16

475627-R91

BEARING, INNER

$

$

Not available

16

475628-R91

BEARING, OUTER

$

$

Not available

17

475642-R1

KEY, 3/16 X 11/16 SQ PARALLEL

$

$

Not available

18

475604-R1

GEAR, BEVEL PINION

$

$

Not available

19

475602-R1

SHAFT, OUTPUT

$

$

Not available

20

475600-R1

GEAR, BEVEL

$

$

Not available

21

475597-R1

COVER, GEAR BOX

$

$

Not available

180020

SCREW, 1/4-20 X 3/4 CD OR ZN-PLTD HEX-HD CAP

$

$

Not available

Cub Cadet 120380

WASHER, 1/4 CD OR ZN-PLTD MED LOCK

$

$

Currently unavailable

Cub Cadet 444687

PLUG 1/8-27 AUTOMOTIVE HEX-SOC-HD PIPE

$

$

Currently unavailable

22

475598-R1

GASKET, GEAR BOX COVER

$

$

Not available

23

527742-R1

PLATE, PIVOT

$

$

Not available

Cub Cadet 180122

BOLT, 3/8 X 1 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet 120377

NUT, 3/8-16 C-Z HEX

$

$

Currently unavailable

442813

NUT, 3/8-16 HEX LOCK

$

$

Not available

Cub Cadet 120382

WASHER, 3/8 C-Z MED LOCK

$

$

Currently unavailable

Cub Cadet 120394

WASHER, 13/32 X 13/16 X .065 C-Z

$

$

Currently unavailable

24

527743-R1

SPACER

$

$

Not available

25

527744-R1

NUT, SWIVEL

$

$

Not available

26

527745-R1

BOLT, EYE

$

$

Not available

Cub Cadet 120378

NUT, 1/2-13 C-Z HEX

$

$

Currently unavailable

120398

WASHER, 17/32 X 1-1/16 X .095 C-Z

$

$

Not available
