QA36 (QA42) - Cub Cadet Snow Thrower Attachment Thrower Housing, Drive and Auger Parts Diagram

Snow Thrower Attachment

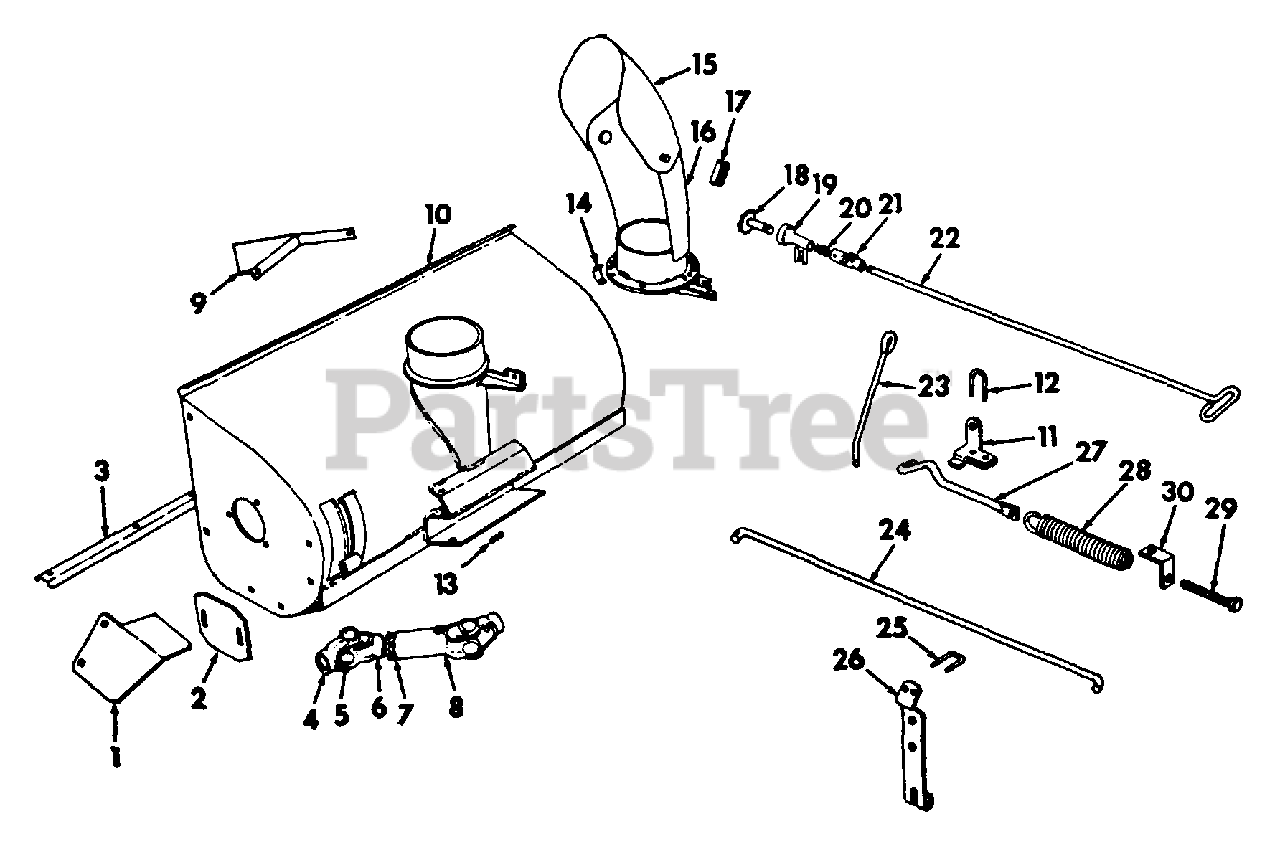

Thrower Housing, Drive and Auger Parts Diagram

  • Title

1

397036-R1

GUARD CHAIN

$

$

Not available

18673-R1

BOLT, 5/16-18 X 1-2 C-Z SHORT SQ-NK CRG

$

$

Not available

Cub Cadet 120376

NUT, 5/16-18 C-Z HEX

$

$

Currently unavailable

Cub Cadet 120214

WASHER, 5/16 C-Z MED LOCK

$

$

Currently unavailable

2

475565-R1

RUNNER

$

$

Not available

17351-R1

BOLT, 3/8-16 X 1 CD OR ZN-PLTD SHORT SQ-NK CRG

$

$

Not available

Cub Cadet 120377

NUT, 3/8-16 CD OR ZN-PLTD HEX.

$

$

Currently unavailable

Cub Cadet 120382

WASHER, 3/8 CD OR ZN-PLTD MED LOCK

$

$

Currently unavailable

Cub Cadet 446548

WASHER, 3/8 X 3/4 X .065 CD OR ZN-PLTD

$

$

Currently unavailable

3

397023-R1

BLADE, USED WITH QA

$

$

Not available

3

397024-R1

BLADE, USED WITH QA

$

$

Not available

18673-R1

BOLT, 5/16-18 X 1/2 CD OR ZN-PLTD SHORT SQ-NK CRG

$

$

Not available

Cub Cadet 120376

NUT, 5/16-18 CD OR ZN-PLTD HEX

$

$

Currently unavailable

Cub Cadet 120214

WASHER, 5/16 CD OR ZN-PLTD MED LOCK

$

$

Currently unavailable

4

475608-R92

JOINT ASSY., UNIVERSAL USED WITH QA

$

$

Not available

4

397025-R92

JOINT ASSY., UNIVERSAL USED WITH QA BLOWER HALF

$

$

Not available

5

124348-R91

KIT, UNIVERSAL JOINT

$

$

Not available

6

475609-R1

RETAINER, GREASE

$

$

Not available

7

124355-R1

CAP, RETAINER

$

$

Not available

137218

PIN 5/32 X 1-1/4 C-Z COT.

$

$

Not available

102592

SCREW, 3/8-16 X 3/8 HEX-SOC-HD CUP-PT SET

$

$

Not available

8

475607-R92

JOINT ASSY., UNIVERSAL TRACTOR HALF

$

$

Not available

9

397046-R1

GUARD, REFLECTOR

$

$

Not available

18673-R1

BOLT, 5/16-18 X 1/2 C-Z

$

$

Not available

Cub Cadet 120376

NUT, 5/16-18 C-Z HEX.

$

$

Currently unavailable

Cub Cadet 120214

WASHER, 5/16 C-Z MED LOCK

$

$

Currently unavailable

10

Cub Cadet 397026-R1

HOUSING ASSY., WELDED

$

$

Currently unavailable

18812-R1

BOLT, 1/2 X 13 C-Z HEX-HD MACH

$

$

Not available

Cub Cadet 120378

NUT, 1/2-13 C-Z HEX

$

$

Currently unavailable

Cub Cadet 120384

WASHER, 1/2 C-Z MED LOCK

$

$

Currently unavailable

120386

WASHER, 5/16 X 3/4 X .065

$

$

Not available

11

485296-R1

BRACKET, MOUNTING

$

$

Not available

12

Cub Cadet P022288

U-BOLT

$

$

Currently unavailable

Cub Cadet 9412083

NUT, 5/16-18 X 1/2 C-Z STOVER LOCK

$

$

Currently unavailable

13

475642-R1

KEY, 3/16 X 11/16 SQ PARALLEL

Note: TRANSFER SHAFT TO UNIVERSAL UNIVERSAL TO GEAR BOX

$

$

Not available

14

397040-R1

CLIP, RETAINER

$

$

Not available

18626-R1

BOLT, 1/4 X 1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet 120375

NUT, 1/4-20 C-Z HEX

$

$

Currently unavailable

Cub Cadet 120380

WASHER, 1/4 C-Z MED LOCK

$

$

Currently unavailable

15

397038-R1

CAP, DEFLECTOR

$

$

Not available

16

397037-R1

CHUTE ASSY., SNOW

$

$

Not available

17

397039-R1

NUT ASSY. WING

$

$

Not available

Cub Cadet 178551

WASHER, 1/4 C-Z INT-EXT TOOTH LOCK

$

$

Currently unavailable

Cub Cadet 446548

WASHER, 3/8 X 3/4 X .065 C-Z

$

$

Currently unavailable

18

62415-C2

SPROCKET ASSY., CHUTE ADJUSTMENT 12T

Note: REPLACES P/N 397041-R1

$

$

Not available

19

397044-R1

SUPPORT, BEARING

$

$

Not available

16897-R1

BOLT, 5/16-18 X 3/4 C-Z SHORT

$

$

Not available

Cub Cadet 120376

NUT 5/16-18 C-Z HEX

$

$

Currently unavailable

Cub Cadet 120214

WASHER, 5/16 C-Z MED LOCK

$

$

Currently unavailable

20

397042-R1

SPRING

$

$

Not available

21

397043-R1

JOINT ASSY., UNIVERSAL

$

$

Not available

Cub Cadet 120169

PIN 5/32 X 1 C-Z COTTER

$

$

Currently unavailable

Cub Cadet 120394

WASHER, 13/32 X 13/16 X .065 C-Z

$

$

Currently unavailable

22

397045-R1

ROD, CHUTE CONTROL

$

$

Not available

23

490131-R3

ROD SUPPORT

$

$

Not available

Cub Cadet 177923

PIN, 1/8 X 3/4 C-Z COTTER

$

$

Currently unavailable

24

473924-R1

ROD, LIFT

$

$

Not available

475579-R1

PIN, SPECIAL

$

$

Not available

Cub Cadet 120396

WASHER, 17/32 X 1-1/16 X .095 C-Z

$

$

Currently unavailable

25

485419-R1

BOLT, MOUNTING U

$

$

Not available

Cub Cadet 120375

NUT, 1/4-20 CD OR ZN-PLTD HEX

$

$

Currently unavailable

Cub Cadet 120380

WASHER, 1/4 CD OR ZN-PLTD MED LOCK

$

$

Currently unavailable

26

489622-R1

BRACKET, LIFT ROD

$

$

Not available

Cub Cadet 18769-R1

SCREW, 5/16-18 X 2-1/2 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet 120376

NUT, 5/16-18 C-Z HEX.

$

$

Currently unavailable

Cub Cadet 120214

WASHER, 5/16 C-Z MED LOCK

$

$

Currently unavailable

27

485297-R1

ROD LIFT

$

$

Not available

Cub Cadet 120396

WASHER 17/32 X 1-1/16 X .074 C-Z

$

$

Currently unavailable

Cub Cadet 120169

PIN, 5/32 X 1 COT.

$

$

Currently unavailable

28

485298-R1

SPRING ASSY., TENSION

$

$

Not available

29

485351-R1

BOLT, ADJUSTMENT

$

$

Not available

30

485299-R1

BRACKET, MOUNTING

$

$

Not available

Cub Cadet 180122

SCREW, 3/8-16 X 1 C-Z HEX-HD CAP

$

$

Currently unavailable
