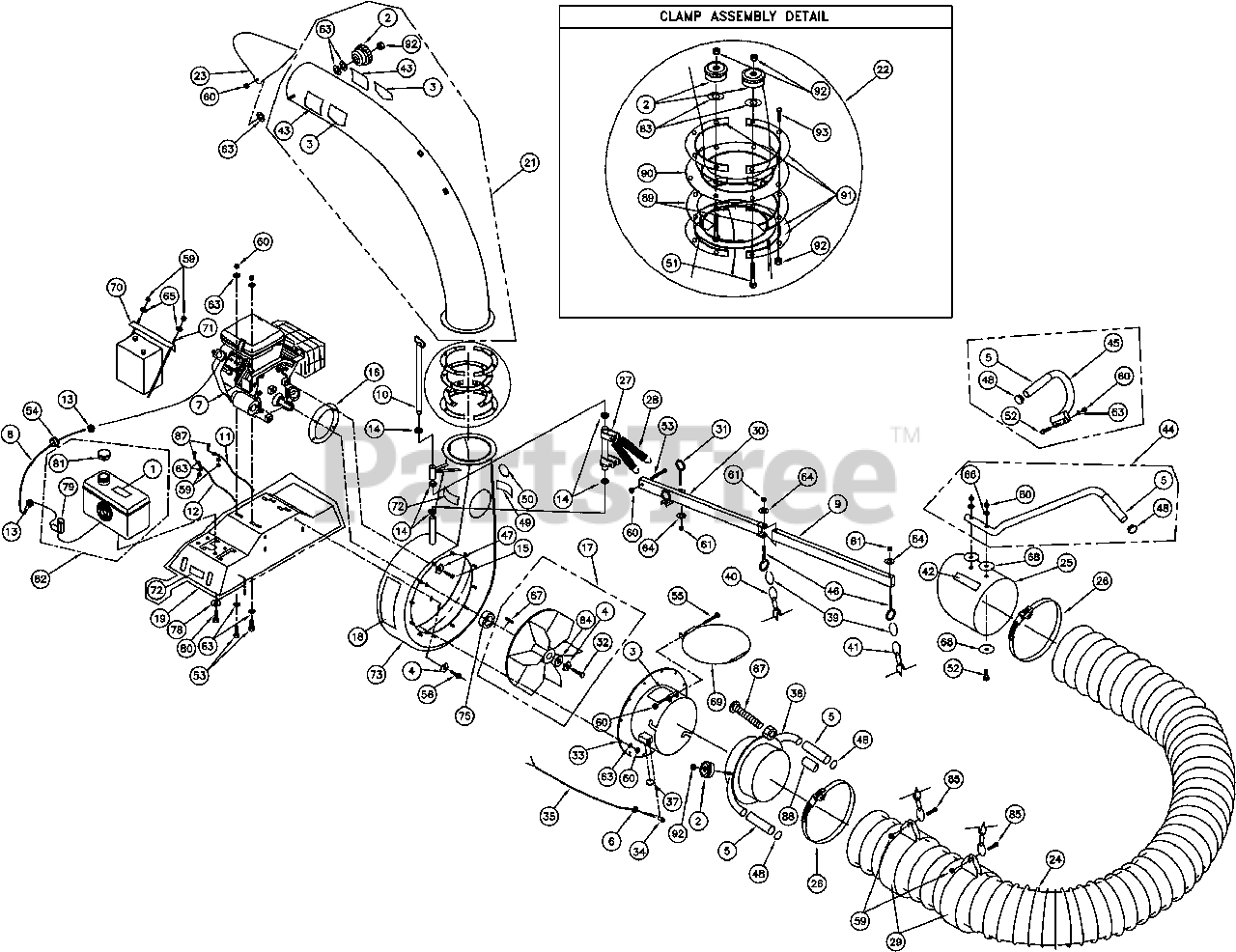

QL 2300 KO - Billy Goat QuietLoad Truck Loader Vacuum Parts Assembly Parts Diagram

QuietLoad Truck Loader Vacuum

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 400268

LABEL HOT ENGINE
(Superseded to 100261)

$3.99

$

Usually ships in 2-11 days

0

2

Billy Goat 400339

KNOB

$9.49

$

In Stock, only 2 left!

0

3

Billy Goat 400424

LABEL OPEI WARNING

$3.99

$

Usually ships in 2-11 days

0

4

Billy Goat 400502

WASHER TWISTED LOCK 3/8"

$4.49

$

In Stock, only 2 left!

0

5

Billy Goat 500267

GRIP HANDLE

$7.49

$

In Stock, only 2 left!

0

6

Billy Goat 500282

STRAIN RELIEF HEYCO 1244

$2.99

$

In Stock, only 2 left!

0

7

Billy Goat 790275

ENGINE 23 HP HORIZ. KOHLER COMMAND PRO

$

$

Currently unavailable

8

Billy Goat 790129

LINE FUEL QL

$4.49

$

Usually ships in 2-11 days

0

9

Billy Goat 790263

TUBE BOOM ARM QL

$

$

Not available

10

Billy Goat 790271

PIN 5/8 X 15.5 QL

$26.99

$

Usually ships in 2-11 days

0

11

Billy Goat 790132

CABLE BATTERY RED 26"

$

$

Not available

12

Billy Goat 790133

CABLE BATTERY BLACK 10"

$21.99

$

Usually ships in 2-11 days

0

13

Billy Goat 790134

CLAMP FUEL LINE

$

$

Not available

14

Billy Goat 510185

BUSHING NYLON 0.625

$5.99

$

Usually ships in 2-11 days

0

15

Billy Goat 790307

SCREWCAP 7/16-14 x 2" GR. 5

$

$

Not available

16

Billy Goat 790293

PLATE RING SPACER QL KOHLER

$

$

Currently unavailable

17

Billy Goat 790103-S

IMPELLER 16" x 1.12" ASSY QL (INCL. 4,32,84)

$1009.99

$

Usually ships in 2-11 days

0

18

Billy Goat 790142

LABEL QL INSTRUCT/WARN

$15.99

$

In Stock, only 1 left!

0

19

Billy Goat 790143-S

BASE ENGINE ASSY QL(INCLUDES 72)

$

$

Not available

21

Billy Goat 790145-S

ELBOW 8" ASSY QL(INCLUDES 2,3,43)

$

$

Not available

22

Billy Goat 790255-S

CLAMP ASSEMBLY

$

$

Not available

23

Billy Goat 790147

DEFLECTOR EXHAUST QL

$

$

Not available

24

Billy Goat 791033

HOSE 10" x 10'
(Superseded to 791033-S)

$

$

Not available

25

Billy Goat 811005

NOZZLE INTAKE 10" FORMED
(Superseded to 811005-S)

$135.99

$

In Stock, only 2 left!

0

26

Billy Goat 810706

CLAMP HOSE 10"
(Superseded to 810706-01)

$16.99

$

Usually ships in 2-11 days

0

27

Billy Goat 790270

BOOM HINGE WA QL

$

$

Not available

28

Billy Goat 790152

SPRING BOOM QL

$

$

Not available

29

Billy Goat 810868

BAND HOSE BOOM 10" FORMED

$41.99

$

In Stock, only 1 left!

0

30

Billy Goat 790267

ARM BOOM WA QL

$

$

Not available

31

Billy Goat 790291

BOLT EYE 3/8" x 2.5"

$

$

Not available

32

Billy Goat 500188

SCREWCAP 7/16-20X2" GR.8 [TORQUE 60 ft.lb. (81.4Nm)]

$3.99

$

In Stock, only 3 left!

0

33

Billy Goat 790318

INTAKE HOUSING ASSY (INCL. 3,6,34,35,37,55,60,63,69)

$

$

Currently unavailable

34

Billy Goat 890440

PLUNGE SWITCH

$18.99

$

Usually ships in 2-11 days

0

35

Billy Goat 790305

HARNESS WIRE ASSY QL23 KO

$

$

Not available

36

Billy Goat 790320

HOSE INTAKE ASSY QL (INCL. 2,38,48,92)

$

$

Not available

37

Billy Goat 811123

PLUG 3/4"

$

$

Not available

39

Billy Goat 811160

LINKGAGE 1/4" CHAIN

$2.99

$

Usually ships in 2-11 days

0

40

Billy Goat 790306

CHAIN 5 LINKS

$49.99

$

Usually ships in 2-11 days

0

41

Billy Goat 790189

CHAIN HANG HOSE QL

$29.99

$

Usually ships in 2-11 days

0

42

Billy Goat 790301

LABEL WARNING NOZZLE

$6.99

$

In Stock, only 1 left!

0

43

Billy Goat 810736

LABEL FLYING DEBRIS

$3.99

$

Usually ships in 2-11 days

0

44

Billy Goat 811020

HANDLE NOZZLE W/ GRIP
(Superseded to 791116-S)

$186.99

$

In Stock, only 2 left!

0

45

Billy Goat 811019

HANDLE ADJ. NOZZLE W/ GRIP
(Superseded to 791116-S)

$186.99

$

In Stock, only 2 left!

0

46

Billy Goat 790290

BOLT EYE 3/8" X 5"

$

$

Not available

47

Billy Goat 850132

WASHER LOCK 7/16 TWIST
(Superseded to 8177013)

$0.99

$

In Stock, Qty 8

0

48

Billy Goat 890132

PLUG RD 1"

$

$

Not available

49

Billy Goat 890254

LABEL EAR EYE BREATHE
(Superseded to 100346)

$3.99

$

Usually ships in 2-11 days

0

50

Billy Goat 890301

LABEL READ
(Superseded to 100346)

$3.99

$

Usually ships in 2-11 days

0

51

Billy Goat 8024044

BOLT CARRAIGE 5/16-18 x 2

$0.99

$

Usually ships in 2-11 days

0

52

Billy Goat 8041030

SCREWCAP 5/16-18 x 1 1/2

$0.99

$

Usually ships in 2-11 days

0

53

Billy Goat 8041031

SCREWCAP 5/16-18 x 1 3/4

$0.99

$

In Stock, only 3 left!

0

54

Billy Goat 790310

GROMNET 1" x 3/4" I.D.

$

$

Currently unavailable

55

Billy Goat 8024050

BOLT CARR. 5/16 - 18 x 3 1/2

$0.99

$

Usually ships in 2-11 days

0

56

Billy Goat 8041051

SCREW CAP 3/8 - 16x 1 1/4

$0.99

$

In Stock, Qty 7

0

58

Billy Goat 8122082

SCREW SM 1/4 x 3/4

$1.49

$

Usually ships in 2-11 days

0

59

Billy Goat 8160001

NUT LOCK 1/4"-20 HEX Z/P

$0.99

$

In Stock, only 2 left!

0

60

Billy Goat 8160002

NUT LOCK 5/16-18

$0.99

$

In Stock, Qty 11

0

61

Billy Goat 8160003

NUT LOCK 3/8

$0.99

$

In Stock, Qty 14

0

63

Billy Goat 8171003

WASHER 5/16 FLAT CUT

$0.99

$

In Stock, Qty 16

0

64

Billy Goat 8171003

WASHER FLAT 3/8

$0.99

$

In Stock, Qty 16

0

65

Billy Goat 8172007

WASHER 1/4 SAE

$0.99

$

In Stock, Qty 11

0

66

Billy Goat 8172008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

67

Billy Goat 9201125

KEY 1/4 x 2 3/4

$2.49

$

Usually ships in 2-11 days

0

68

Billy Goat 8172020

WASHER 5/16 FENDER

$0.99

$

In Stock, only 4 left!

0

69

Billy Goat 790298

DOOR FLAPPER INTAKE QL23

$

$

Currently unavailable

70

Billy Goat 790230

BRACKET BATTERY QL

$29.99

$

Usually ships in 2-11 days

0

71

Billy Goat 790231

ROD BATTERY HOLD DOWN

$10.99

$

Usually ships in 2-11 days

0

72

Billy Goat 790232

LABEL WARNING SECURE

$6.49

$

Usually ships in 2-11 days

0

73

Billy Goat 790105

HOUSING ASSY QL

$

$

Not available

74

Billy Goat 790285

TRAY NOZZLE WA QL23KO

$

$

Not available

75

Billy Goat 790311

SPACER - ENGINE

$

$

Not available

76

Billy Goat 400502

WASHER LOCK TWISTED TOOTH

$4.49

$

In Stock, only 2 left!

0

77

Billy Goat 790303

BUNGEE CORD BLACK 14"

$10.99

$

Usually ships in 2-11 days

0

78

Billy Goat 8177011

WASHER LOCK TWISTED TOOTH

$0.99

$

In Stock, Qty 9

0

79

Billy Goat 790240

90 DEGREE ELBOW 1/8" NPT MALE X 1/4"

$

$

Not available

80

Billy Goat 8041026

SCREWCAP 5/16-18 X 3/4 HCS ZP

$0.99

$

In Stock, Qty 6

0

81

Billy Goat 790258

CAP TANK FUEL 3 GAL

$

$

Not available

82

Billy Goat 790257

TANK FUEL 3 GAL ASSY
(Superseded to 790259)

$

$

Not available

83

Billy Goat 790204

U-BOLT 3/8" -16 - X 3

$

$

Not available

84

Billy Goat 850443

WASHER PLATE IMPELLER

$1.99

$

Usually ships in 2-11 days

0

85

Billy Goat 8041008

SCREWCAP 1/4-20 x 1 1/2

$0.99

$

Usually ships in 2-11 days

0

87

Billy Goat 8024216

BOLT CARRIAGE 3/4"-10 X 6" ZP

$8.99

$

Usually ships in 2-11 days

0

88

Billy Goat 610102

TUBE GRIP

$

$

Not available

89

Billy Goat 790254

PLATE CLAMP SPLIT
(Superseded to 790255-S)

$

$

Not available

90

Billy Goat 790253

PLATE CLAMP SPACER
(Superseded to 790255-S)

$

$

Not available

91

Billy Goat 790252

PLATE CLAMP HALF

$

$

Not available

92

Billy Goat 8161041

LOCK NUT 5/16-18 THIN ZP

$0.99

$

In Stock, Qty 13

0

93

Billy Goat 8024041

BOLT CARRIAGE 5/16-1 1/4" ZP

$0.99

$

Usually ships in 2-11 days

0
