QSP20KAS483 - Exmark 48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) 48" Deck Group Parts Diagram

48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki

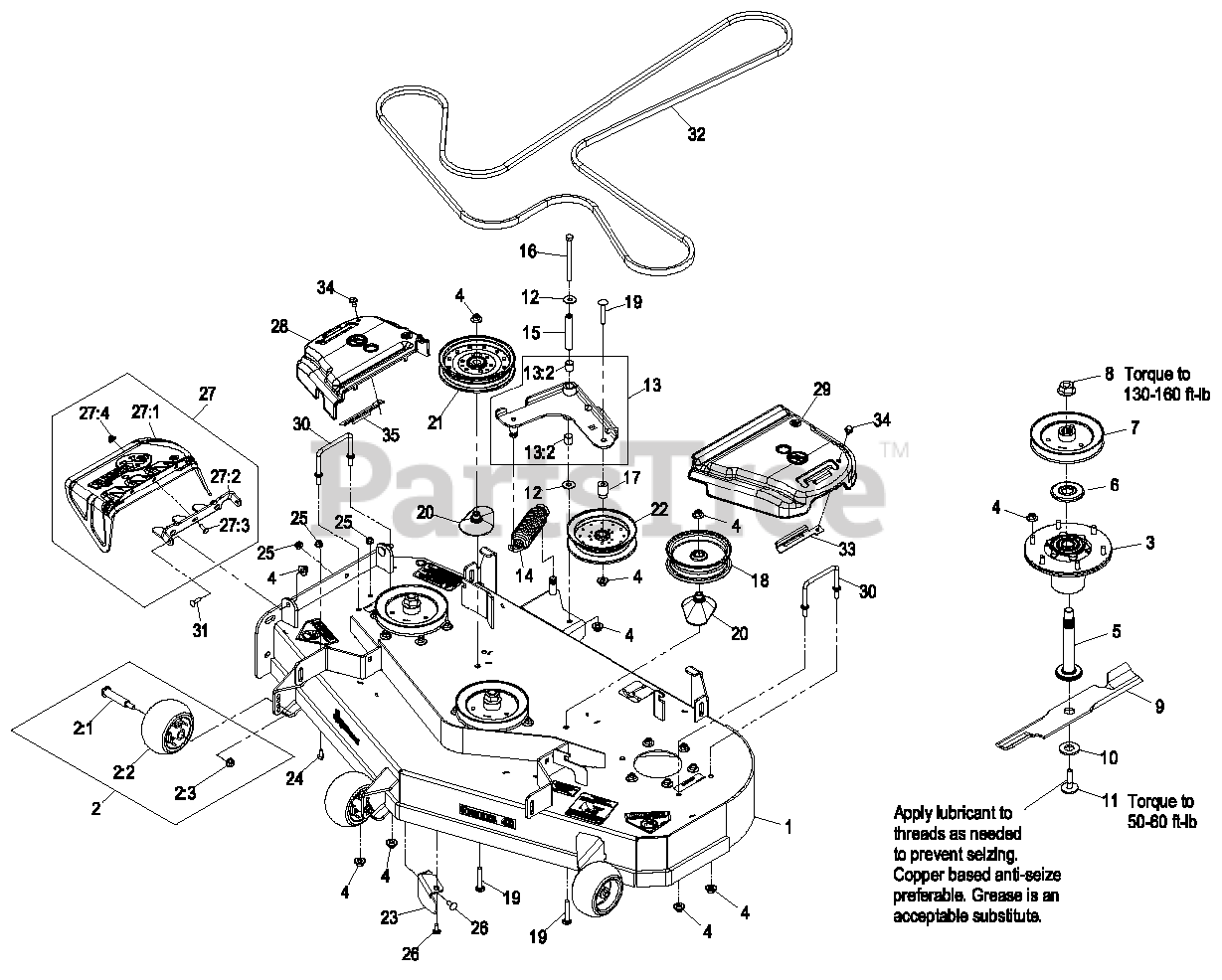

48" Deck Group Parts Diagram

  • Title

1

Exmark 116-1067

ASM, 48 DECK W/ DECALS

$2702.99

$

Usually ships in 3-6 days

0

2

Exmark 109-6388

ANTI-SCALP ROLLER KIT

$42.99

$

In Stock, Qty 20+

0

2:1

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 20+

0

2:2

Exmark 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

2:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-0379

ASM,CUTTER HOUSING W/BEAR

$

$

Not available

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-0381

SPINDLE,HEX PILOT 5.5" DE

$

$

Not available

6

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

7

Exmark 116-3049

SHEAVE,BLADE DRIVE 5.90

$

$

Not available

8

Exmark 104-0753

NUT-FLANGE

$4.49

$

In Stock, Qty 10

0

9

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK483

$34.99

$

In Stock, Qty 20+

0

Exmark 109-6389

109-6389-S
(Superseded to 109-6389-S)

$26.99

$

In Stock, Qty 13

0

Exmark 103-6396

116-5177-S
(Superseded to 116-5177-S)

$31.99

$

In Stock, Qty 20+

0

10

Exmark 109-7429

WASHER-BLADE DRIVE

$5.49

$

In Stock, Qty 20+

0

11

Exmark 116-0005

BOLT-BLADE, SEM

$7.99

$

In Stock, Qty 20+

0

12

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-3248

DISCONTINUED

$

$

Not available

13:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$27.99

$

In Stock, Qty 20+

0

15

Exmark 103-0040

BUSHING-TIGHTENER, PIVOT

$18.99

$

In Stock, only 4 left!

0

16

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

17

Exmark 116-2980

BUSHING,IDLER

$28.99

$

Usually ships in 3-6 days

0

18

Exmark 99-8912

116-4669
(Superseded to 116-4669)

$82.99

$

In Stock, Qty 20+

0

19

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 20+

0

20

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

21

Exmark 114-5895

126-9189
(Superseded to 126-9189)

$61.99

$

In Stock, Qty 7

0

22

Exmark 103-8743

126-9196
(Superseded to 126-9196)

$63.99

$

In Stock, Qty 20+

0

23

Exmark 116-0680-01

BAFFLE,DISCHARGE 483

$28.99

$

Usually ships in 3-6 days

0

24

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

27

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, Qty 13

0

27:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, only 4 left!

0

27:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

27:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

27:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

28

Exmark 109-6935

COVER-BELT, RH

$37.99

$

In Stock, only 2 left!

0

29

Exmark 109-6936

COVER-BELT, LH

$37.99

$

In Stock, only 1 left!

0

30

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 7

0

31

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

32

Exmark 116-3455

BELT-B154.88
(Superseded to 116-3455-SL)

$152.99

$

In Stock, Qty 5

0

33

Exmark 116-2814-03

RETAINER,COVER LH

$

$

Not available

34

Exmark 9266934

SCREW

$8.99

$

In Stock, Qty 7

0

35

Exmark 116-2813-03

RETAINER,COVER RH

$

$

Not available
