QSP20KAS483 - Exmark 48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Engine Group - 20-22HP Kawasaki Parts Diagram

48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki

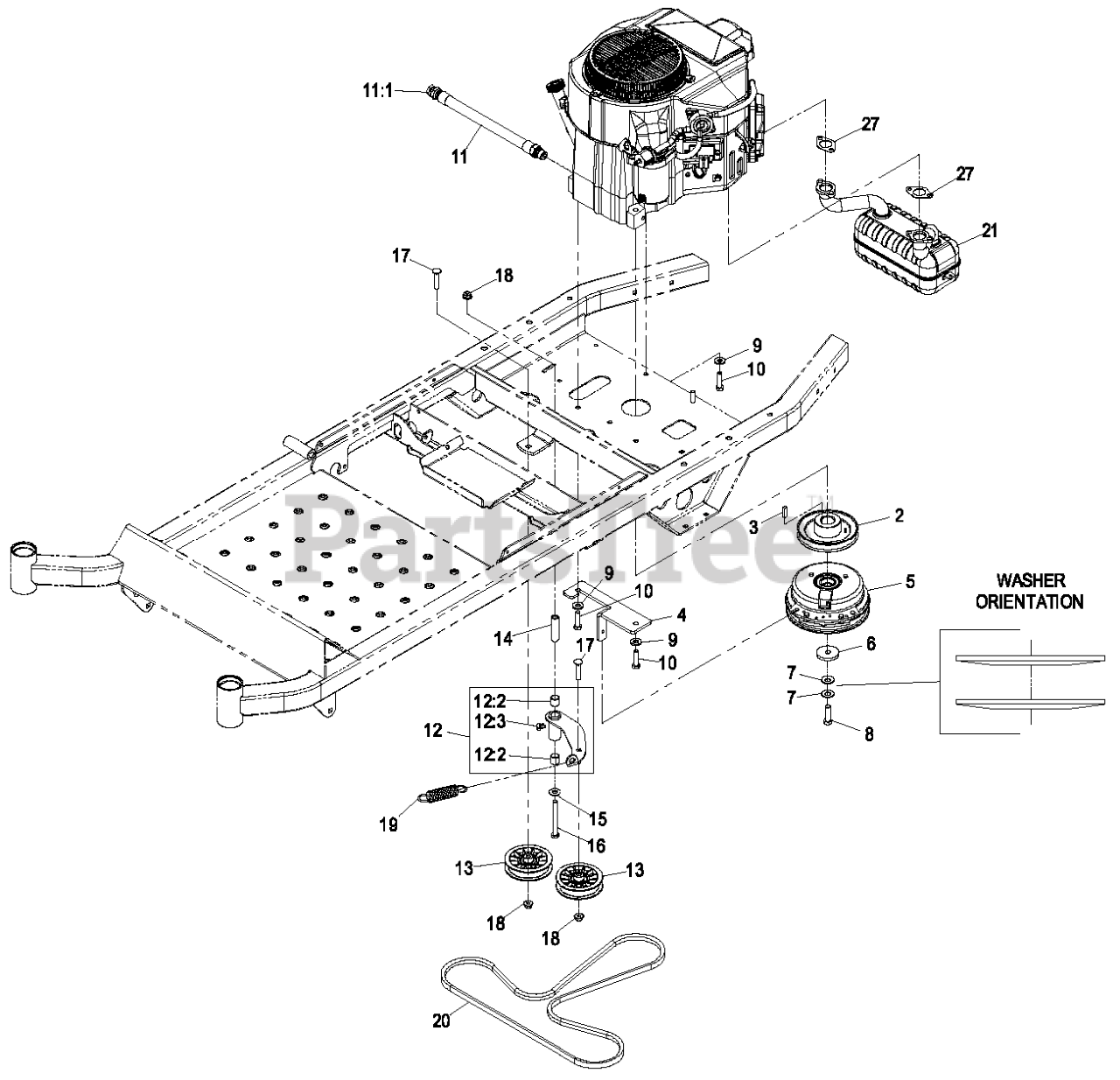

Engine Group - 20-22HP Kawasaki Parts Diagram

  • Title

2

Exmark 116-1946

SHEAVE-PUMP, DRIVE

$78.99

$

In Stock, only 4 left!

0

3

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

4

Exmark 116-2743-03

ANCHOR,CLUTCH

$30.99

$

Usually ships in 3-6 days

0

5

Exmark 116-1604

116-1620
(Superseded to 116-1620)

$380.99

$

In Stock, Qty 20+

0

6

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 20+

0

7

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

8

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$5.49

$

In Stock, Qty 13

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-4490

116-4924
(Superseded to 116-4924)

$39.99

$

In Stock, Qty 5

0

11:1

Exmark 109-1012

PLUG

$8.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2934

ASM,IDLER ARM

$

$

Not available

12:2

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

12:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 19

0

13

Exmark 116-2456

PULLEY-FLAT IDLER

$25.99

$

In Stock, Qty 17

0

14

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

15

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Exmark 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

17

Exmark 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-603402

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

20

Exmark 115-9613

V-BELT
(Superseded to 115-9613-SL)

$52.99

$

Usually ships in 3-6 days

0

21

Exmark 116-2450

MUFFLER-KAWASAKI

$266.99

$

Usually ships in 3-6 days

0

Exmark 117-7256

MUFFLER-KAWASAKI

$237.99

$

In Stock, only 3 left!

0

27

Exmark 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0
