QSS708GEM50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 315000000 - 315999999) (2015) Seat Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Exmark 708

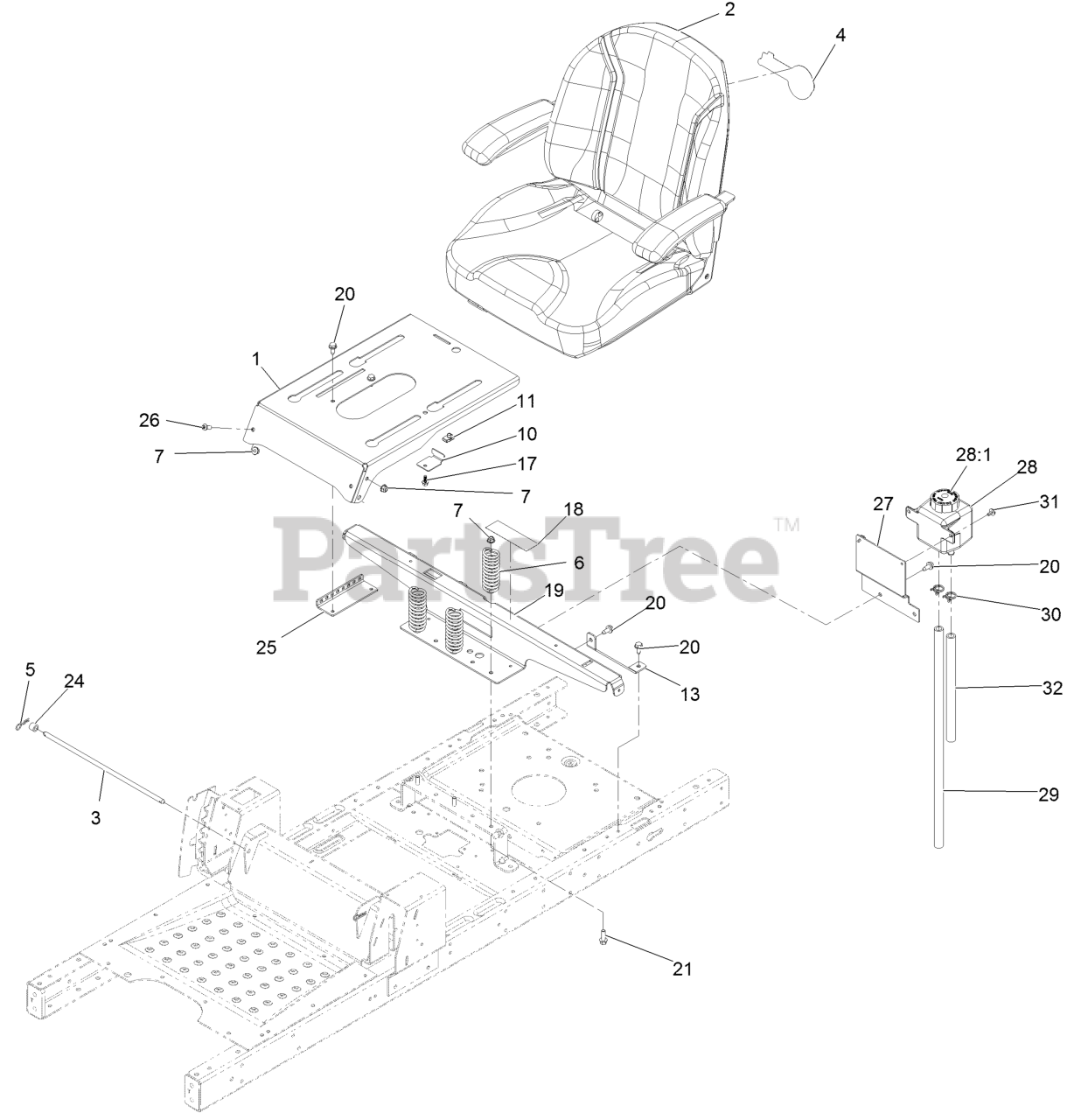

Seat Assembly Parts Diagram

  • Title

1

Exmark 132-0919-03

136-5571-03
(Superseded to 136-5571-03)

$67.99

$

Usually ships in 3-6 days

0

2

Exmark 131-4148

SEAT ASM, EXMARK
(Superseded to 142-8124)

$761.99

$

Usually ships in 3-6 days

0

3

Exmark 115-4966

ROD-STOP

$20.99

$

Usually ships in 3-6 days

0

4

Exmark 120-5464

DECAL

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

6

Exmark 92-7054

SPRING-COMPRESSION

$22.99

$

In Stock, Qty 7

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 131-1038

BRACKET-STOP, SEAT
(Superseded to 138-7214)

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

13

Exmark 119-3431-03

SUPPORT-TANK, REAR

$6.99

$

Usually ships in 3-6 days

0

17

Exmark 99-6810

SCREW-HHF

$3.99

$

In Stock, only 2 left!

0

18

Exmark 106-8717

DECAL-SERVICE, CE

$8.49

$

Usually ships in 3-6 days

0

19

Exmark 131-1039-03

SUPPORT-POD, WIDE

$132.99

$

Usually ships in 3-6 days

0

20

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

24

Exmark 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 10

0

25

Exmark 131-4008-03

BRACKET-LATCH, SEAT

$6.99

$

Usually ships in 3-6 days

0

26

Exmark 131-4080

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0

27

Exmark 120-7970-03

MOUNT-TANK

$27.99

$

Usually ships in 3-6 days

0

28

Exmark 109-2250

TANK-HYD

$69.99

$

In Stock, Qty 7

0

28:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$29.99

$

In Stock, only 3 left!

0

29

Exmark 121-2951

HOSE-OVERFLOW

$9.49

$

Usually ships in 3-6 days

0

30

Exmark 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

31

Exmark 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

32

Exmark 121-2952

HOSE-OVERFLOW

$5.49

$

Usually ships in 3-6 days

0
