QSS725GKC42200 - Exmark 42" Quest S-Series Zero-Turn Mower, Kohler (SN: 315000000 - 315999999) (2015) Electrical Assembly Parts Diagram

42" Quest S-Series Zero-Turn Mower, Kohler

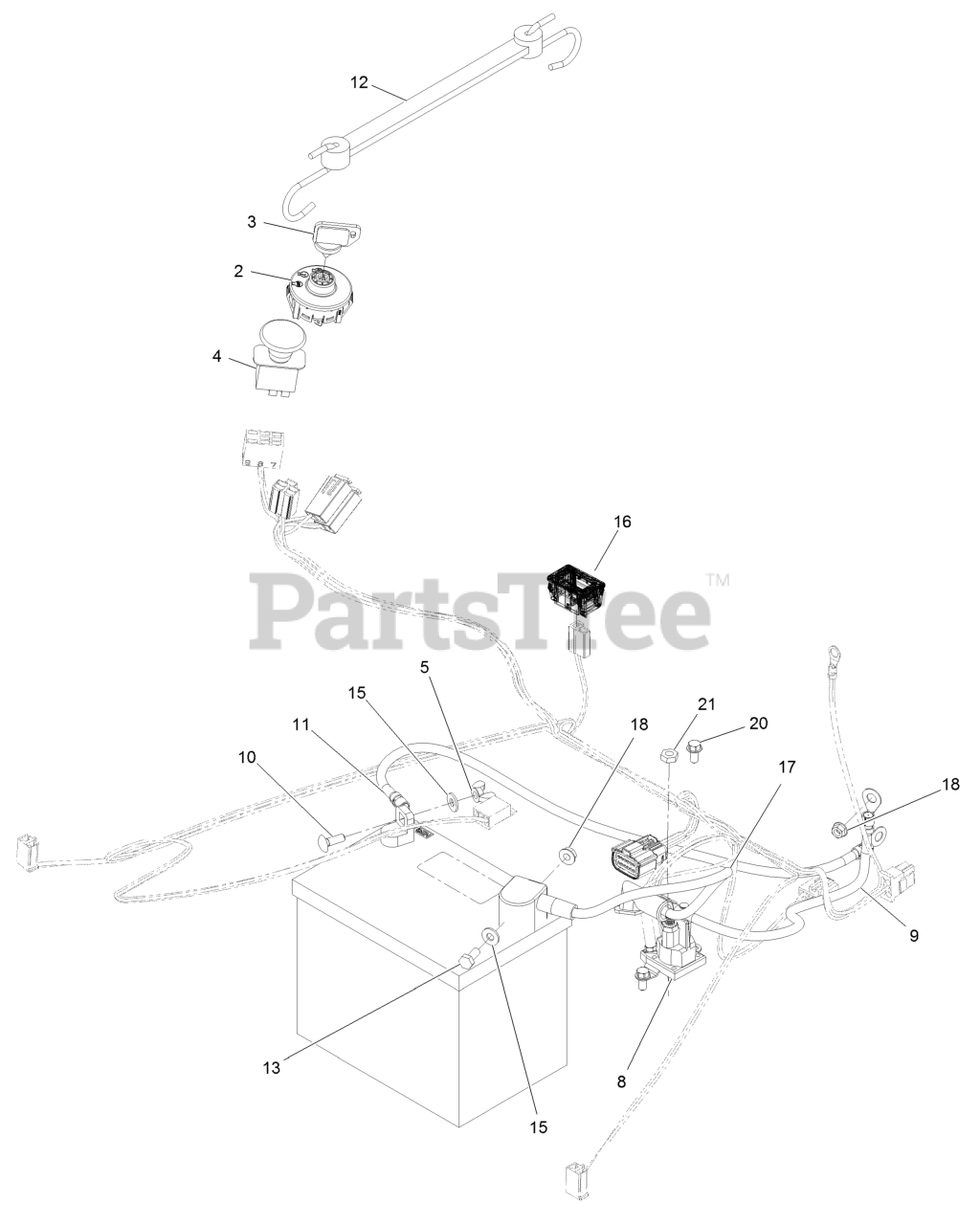

Electrical Assembly Parts Diagram

  • Title

2

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$37.99

$

In Stock, Qty 20+

0

3

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Exmark 114-0279

SWITCH-PTO, ON-ON

$59.99

$

Usually ships in 3-6 days

0

5

Exmark 32103-22

NUT-WING

$2.99

$

In Stock, only 1 left!

0

8

Exmark 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

9

Exmark 121-0711

CABLE-BATTERY, POSITIVE

$14.99

$

In Stock, only 1 left!

0

10

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

11

Exmark 121-5726

CABLE-BATTERY, BLACK

$17.99

$

In Stock, only 1 left!

0

12

Exmark 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 7

0

13

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

15

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 120-2244

HOURMETER

$67.99

$

In Stock, Qty 7

0

17

Exmark 119-8897

CABLE-BATTERY, RED

$21.99

$

Usually ships in 3-6 days

0

18

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0
