QSS725GKC50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Kohler (SN: 315000000 - 315999999) (2015) Deck Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kohler

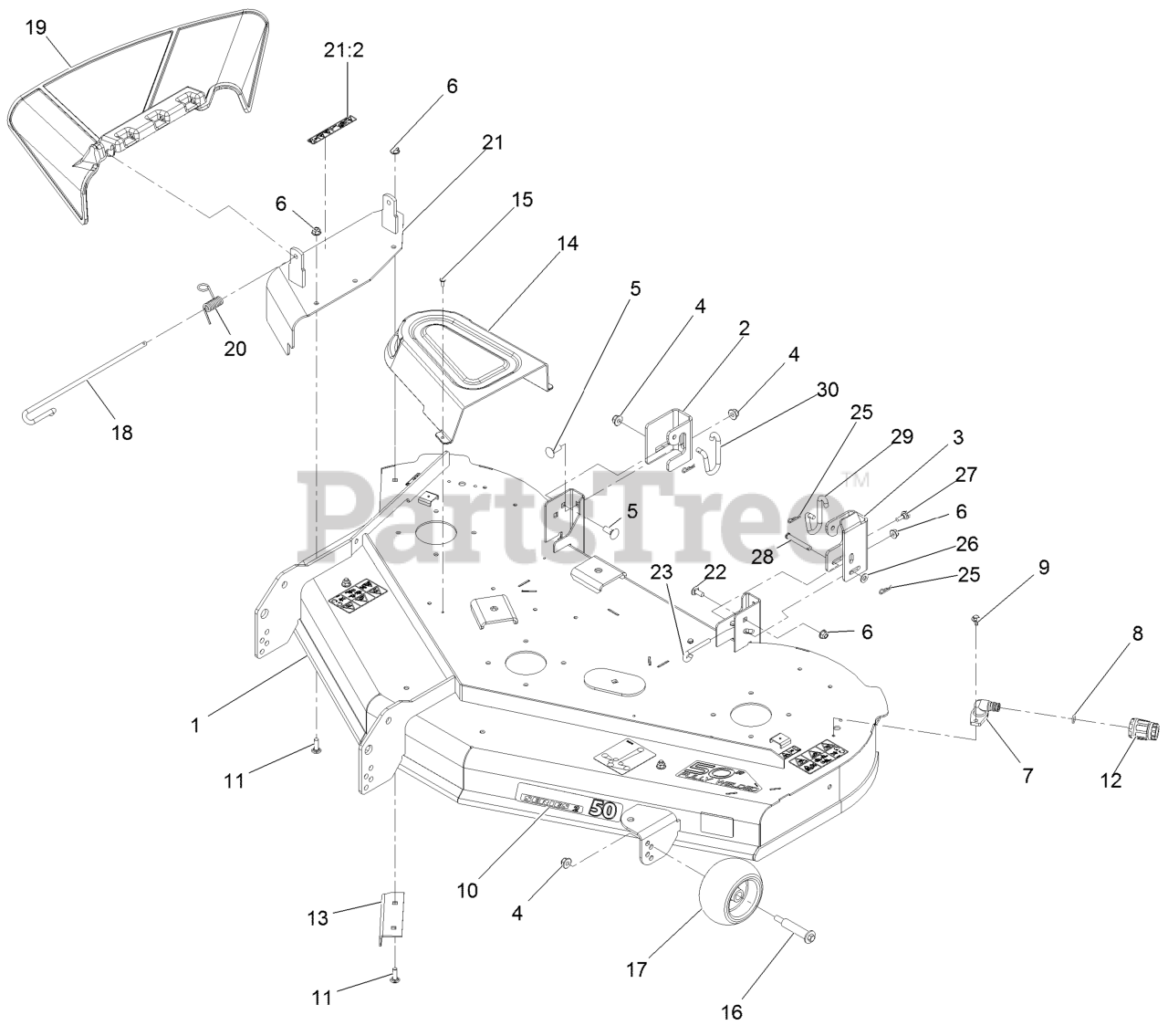

Deck Assembly Parts Diagram

  • Title

1

Exmark 131-3614

DECK AND DECAL ASM

$1607.99

$

Usually ships in 3-6 days

0

2

Exmark 131-4138

BRACKET-HANGER, RH

$13.99

$

In Stock, Qty 20+

0

3

Exmark 131-3935

BRACKET-HANGER, LH

$14.99

$

In Stock, Qty 20+

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 95-2747

133-9289
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 15

0

8

Exmark 46-6290

O-RING

$2.99

$

In Stock, Qty 15

0

9

Exmark 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

10

Exmark 126-1770

DECAL-SERIES 2 - 50

$8.99

$

In Stock, only 2 left!

0

11

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

12

Exmark 95-3270

CONNECTOR-HOSE

$22.99

$

In Stock, Qty 20+

0

13

Exmark 120-7951-03

BAFFLE-CUTOFF

$25.99

$

In Stock, only 3 left!

0

14

Exmark 108-7890

COVER-BELT

$20.99

$

In Stock, Qty 9

0

15

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

16

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 20+

0

17

Exmark 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

18

Exmark 109-8854

PIN-CHUTE

$15.99

$

In Stock, Qty 20+

0

19

Exmark 121-0739

DEFLECTOR-DISCHARGE

$62.99

$

In Stock, Qty 20+

0

20

Exmark 121-2983

SPRING-TORSION

$5.49

$

In Stock, Qty 20+

0

21

Exmark 131-3962

COVER ASM W/DECAL

$113.99

$

Usually ships in 3-6 days

0

21:2

Exmark 93-7009

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

22

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

23

Exmark 131-0955

ROD-LEVEL, DECK

$7.99

$

In Stock, only 4 left!

0

25

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

26

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

27

Exmark 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

28

Exmark 110-0618

PIN-CLEVIS

$13.99

$

Usually ships in 3-6 days

0

29

Exmark 131-8734

LINK-RETENTION, DECK (RH)

$7.99

$

In Stock, Qty 19

0

30

Exmark 131-4131

LINK-RETENTION, DECK (LH)

$7.99

$

In Stock, Qty 18

0
