QSS725GKC50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Kohler (SN: 315000000 - 315999999) (2015) Frame, Front Axle And Caster Wheel Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kohler

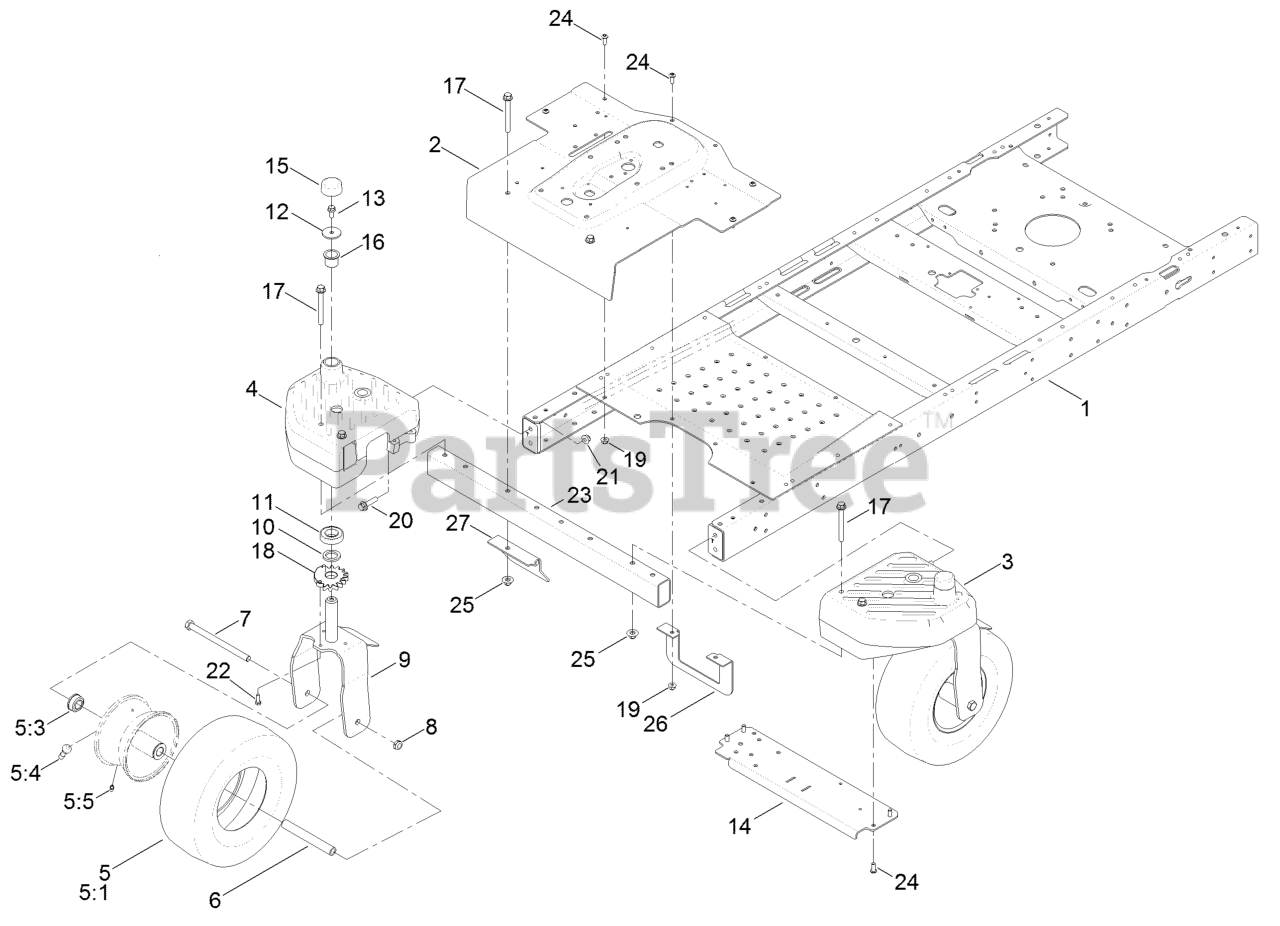

Frame, Front Axle And Caster Wheel Assembly Parts Diagram

  • Title

1

Exmark 130-0805-01

FRAME ASM (WIDE)

$470.99

$

Usually ships in 3-6 days

0

2

Exmark 130-6930-05

PAN-STEER, FRONT (WIDE)

$143.99

$

Usually ships in 3-6 days

0

3

Exmark 130-0748-05

HOUSING-SPINDLE, LH

$320.99

$

Usually ships in 3-6 days

0

4

Exmark 130-0746-05

HOUSING-SPINDLE, RH

$320.99

$

Usually ships in 3-6 days

0

5

Exmark 119-3473

13 INCH WHEEL AND TIRE AS

$120.99

$

In Stock, Qty 8

0

5:1

Exmark 119-3471

TIRE-13 INCH

$88.99

$

In Stock, only 4 left!

0

5:3

Exmark 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

5:4

Exmark 232-27

Stem-Valve

$

$

Not available

5:5

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 11

0

5:99

Exmark 232-46

TUBE-INNER

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

6

Exmark 119-3475

SPANNER

$11.99

$

In Stock, Qty 19

0

7

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 18

0

9

Exmark 130-0670-03

CASTER FORK ASM

$94.99

$

In Stock, only 1 left!

0

10

Exmark 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 7

0

11

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Exmark 131-1032

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 5

0

14

Exmark 130-6979-03

PLATE-BRIDGE, WIDE

$58.99

$

Usually ships in 3-6 days

0

15

Exmark 130-7015

CAP-CASTER

$1.99

$

Usually ships in 3-6 days

0

16

Exmark 126-1963

BUSHING-PIVOT

$7.49

$

In Stock, Qty 20+

0

17

Exmark 115-7660

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

18

Exmark 130-0689

GEAR-WHEEL, 15 TOOTH

$25.99

$

Usually ships in 3-6 days

0

19

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Exmark 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

21

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 130-0829-03

TUBE-FRONT, WIDE

$85.99

$

Usually ships in 3-6 days

0

24

Exmark 131-4080

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

26

Exmark 131-8739-01

BRACKET-UPSTOP, LONG

$22.99

$

Usually ships in 3-6 days

0

27

Exmark 132-0868-03

GUARD-FRONT

$11.99

$

Usually ships in 3-6 days

0
